Tuning the Go HTTP Client Settings

记录一次Go HTTP Client TIME_WAIT的优化

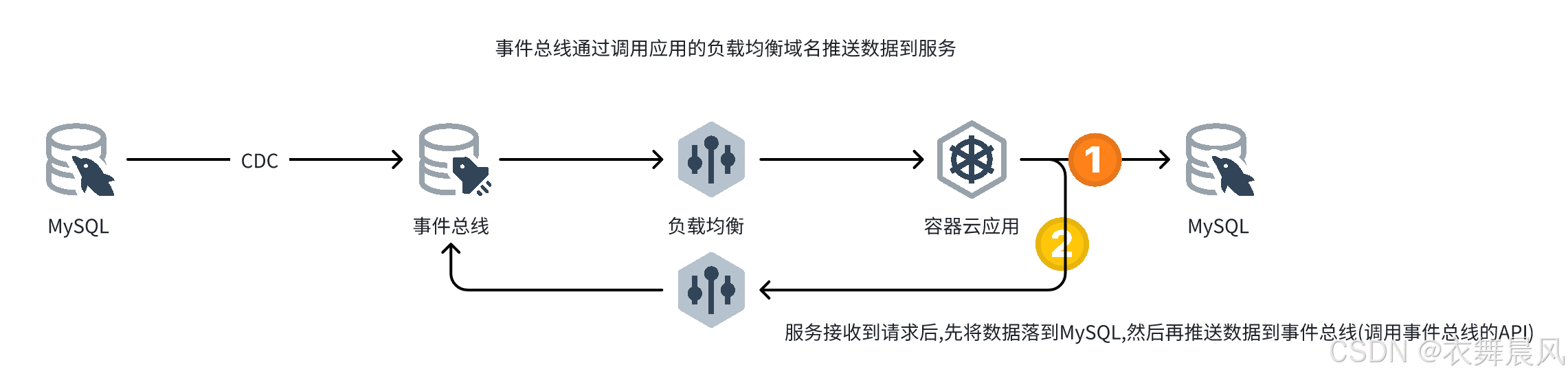

业务流程

分析

通过容器监控发现服务到事件总线的负载均衡之间有大量的短链接，回看一下代码

发送请求的代码

func SendToKEvent(ev *KEvent) error {data, err := json.Marshal(ev.Data)if err != nil {return err}log.Println(string(data))if !sendEvent {log.Println("------ SEND_EVENT IS DISABLED ------")return nil}defer util.TimeCost("SendToKEvent")()body := bytes.NewReader(data)ctx, cancel := context.WithTimeout(context.Background(), 2*time.Second)defer cancel()req, err := http.NewRequest(http.MethodPost, ev.Url, body)if err != nil {return err}req.WithContext(ctx)req.Header.Set("Content-Type", "application/json; charset=utf-8")req.Header.Set("......", "......")for k, v := range ev.ExtMap {req.Header.Set(k, v)}resp, err := httpc.HttpClient.Do(req)if err != nil {return err}defer resp.Body.Close()// 事件总线 2xx 均为正常if resp.StatusCode >= 300 || resp.StatusCode < 200 {return fmt.Errorf("req failed, resp=%v", resp)}return nil
}

http client的代码

var (HttpClient = &http.Client{Transport: &http.Transport{Proxy: http.ProxyFromEnvironment,DialContext: func(ctx context.Context, network, addr string) (conn net.Conn, e error) {return (&net.Dialer{Timeout:   10 * time.Second,KeepAlive: 90 * time.Second,}).DialContext(ctx, network, addr)},ForceAttemptHTTP2:     true,TLSHandshakeTimeout:   5 * time.Second,ResponseHeaderTimeout: 30 * time.Second,MaxIdleConnsPerHost:   10,IdleConnTimeout:       90 * time.Second,ExpectContinueTimeout: 1 * time.Second,},}
)

代码看起来没啥问题,但想到了之前处理过Golang ES client的一个问题

https://jiankunking.com/tcp-state-diagram.html

看下上文中TIME_WAIT部分，发现还真是
https://pkg.go.dev/net/http#Response

// The http Client and Transport guarantee that Body is always
// non-nil, even on responses without a body or responses with
// a zero-length body. It is the caller's responsibility to
// close Body. The default HTTP client's Transport may not
// reuse HTTP/1.x "keep-alive" TCP connections if the Body is
// not read to completion and closed.

调整代码

func SendToKEvent(ev *KEvent) error {......resp, err := httpc.HttpClient.Do(req)if err != nil {return err}defer resp.Body.Close()io.Copy(ioutil.Discard, resp.Body)  // <-- 添加这一行......return nil
}

重新部署后,发现TIME_WAIT的链接少了很多，但还是有10几个

bash-5.0# netstat -anp |grep TIME
tcp        0      0 ::ffff:172.16.3.247:8080 ::ffff:10.200.76.64:10964 TIME_WAIT   -
tcp        0      0 ::ffff:172.16.3.247:8080 ::ffff:10.200.76.64:45738 TIME_WAIT   -
tcp        0      0 ::ffff:172.16.3.247:8080 ::ffff:10.200.76.64:21178 TIME_WAIT   -
tcp        0      0 ::ffff:172.16.3.247:8080 ::ffff:10.200.76.64:37354 TIME_WAIT   -
tcp        0      0 ::ffff:172.16.3.247:8080 ::ffff:10.200.76.64:10966 TIME_WAIT   -
tcp        0      0 ::ffff:172.16.3.247:8080 ::ffff:10.200.76.64:37352 TIME_WAIT   -
tcp        0      0 ::ffff:172.16.3.247:8080 ::ffff:10.200.76.64:61524 TIME_WAIT   -
tcp        0      0 ::ffff:172.16.3.247:8080 ::ffff:10.200.76.64:61526 TIME_WAIT   -
tcp        0      0 ::ffff:172.16.3.247:8080 ::ffff:10.200.76.64:21180 TIME_WAIT   -
tcp        0      0 ::ffff:172.16.3.247:8080 ::ffff:10.200.76.64:33256 TIME_WAIT   -
tcp        0      0 ::ffff:172.16.3.247:8080 ::ffff:10.200.76.64:45736 TIME_WAIT   -
tcp        0      0 ::ffff:172.16.3.247:8080 ::ffff:10.200.76.64:33254 TIME_WAIT   -
bash-5.0#

这里需要注意一下

• 172.16.3.247是服务POD的ip
• 10.200.76.64是POD所在宿主机的ip

也就是说POD跟宿主机之间有短链接,那这几个短链接是在做啥呢？

抓包看下

着重看一下No 502这一行

Frame 502: 177 bytes on wire (1416 bits), 177 bytes captured (1416 bits)
Ethernet II, Src: ee:ee:ee:ee:ee:ee (ee:ee:ee:ee:ee:ee), Dst: b6:cd:6a:f8:69:5e (b6:cd:6a:f8:69:5e)
Internet Protocol Version 4, Src: 10.200.76.64, Dst: 172.16.3.247
Transmission Control Protocol, Src Port: 29978, Dst Port: 8080, Seq: 1, Ack: 1, Len: 111
Hypertext Transfer ProtocolGET /healthz HTTP/1.1\r\n <-- 注意这一行,这个接口是服务配置的存活检查接口Host: 172.16.3.247:8080\r\nUser-Agent: kube-probe/1.21\r\nAccept: */*\r\nConnection: close\r\n <-- 注意这一行\r\n[Response in frame: 506][Full request URI: http://172.16.3.247:8080/healthz]

Connection

• Connection: keep-alive 当一个网页打开完成后，客户端和服务器之间用于传输HTTP数据的TCP连接不会关闭，如果客户端再次访问这个服务器上的网页，会继续使用这一条已经建立的连接
• Connection: close 代表一个Request完成后，客户端和服务器之间用于传输HTTP数据的TCP连接会关闭， 当客户端再次发送Request，需要重新建立TCP连接。

从Connection的注释可以看出当请求header中带有Connection: keep-alive表明该请求是会是一个短链接。

看下服务的Deployment的配置

        livenessProbe:failureThreshold: 3httpGet:path: /healthzport: 8080scheme: HTTPperiodSeconds: 10successThreshold: 1timeoutSeconds: 1

到这里问题都可以解释的通了,Kubernetes会每10秒请求一次服务的存活检查的接口,每一次都是短链接,而TIME_WAIT的默认值是120s。

那服务TIME_WAIT的链接应该会一直保持在11-13个左右。

到这里所有的问题都就可以解释了。

结论

• Go HTTP Client请求完了,即使业务不关注响应的Body,还是要在代码中read一下body。
• 只要服务配置了存活检查就会有短链接，短链接的数据取决于检查间隔时间的配置。
