ElasticStack技术之logstash介绍

一、什么是Logstash

Logstash 是 Elastic Stack（ELK Stack）中的一个开源数据处理管道工具，主要用于收集、解析、过滤和传输数据。它支持多种输入源，如文件、网络、数据库等，能够灵活地对数据进行处理，比如通过过滤器插件进行数据的转换、聚合等操作，并将处理后的数据发送到各种输出目标，如 Elasticsearch、文件、数据库等。

二、Logstash的应用场景

• 日志收集与分析 ：Logstash可以从多种来源收集日志数据，如文件、HTTP请求、Syslog、数据库等。收集到的日志数据可以存储到Elasticsearch中，以便进行搜索和分析，帮助运维人员快速定位和解决问题。

• 数据转换与过滤 ：它可以对收集到的数据进行转换、过滤和聚合。例如，将JSON格式的数据转换为XML格式，或者过滤掉不需要的字段，还可以从非结构化数据中提取结构化信息，如利用Grok从日志中提取时间戳、IP地址等。

• 数据集成与整合 ：Logstash能够将不同来源、不同格式的数据进行统一收集和整合，为数据分析和挖掘提供统一的数据源。比如将来自多个应用系统的日志数据整合在一起，方便进行集中管理和分析。

• 实时监控与告警 ：通过Logstash实时收集和分析数据，可以及时发现系统中的异常和故障，触发告警和通知，帮助运维人员快速响应。

前面博文提到过logstash相比于filebeat更加重量级，那么我们也可以理解成filebeat的功能更多。但是我个人觉得日常使用filebeat就足够了。

三、logstash环境部署

1. 下载logstash

1.下载Logstash
wget https://artifacts.elastic.co/downloads/logstash/logstash-7.17.28-amd64.deb

 2. 安装Logstash

[root@elk93 ~]# ll -h logstash-7.17.28-amd64.deb
-rw-r--r-- 1 root root 359M Mar 13 14:41 logstash-7.17.28-amd64.deb
[root@elk93 ~]#
[root@elk93 ~]# dpkg -i logstash-7.17.28-amd64.deb 3.创建符号链接，将Logstash命令添加到PATH环境变量
[root@elk93 ~]# ln -svf /usr/share/logstash/bin/logstash /usr/local/bin/
'/usr/local/bin/logstash' -> '/usr/share/logstash/bin/logstash'
-s创建软链接文件
-v显示过程
-f如果文件存在则覆盖[root@elk93 ~]#
[root@elk93 ~]# logstash --help

四、 使用logstash

1.  基于命令行方式启动实例

基于命令行的方式启动实例，使用-e选项指定配置信息（不推荐）
[root@elk93 ~]# logstash -e "input { stdin { type => stdin } } output { stdout { codec => rubydebug } }"
11111111111111111111111111111111111111111111111
{"type" => "stdin","@timestamp" => 2025-03-13T11:39:04.474Z,"message" => "11111111111111111111111111111111111111111111111","@version" => "1","host" => "elk93"

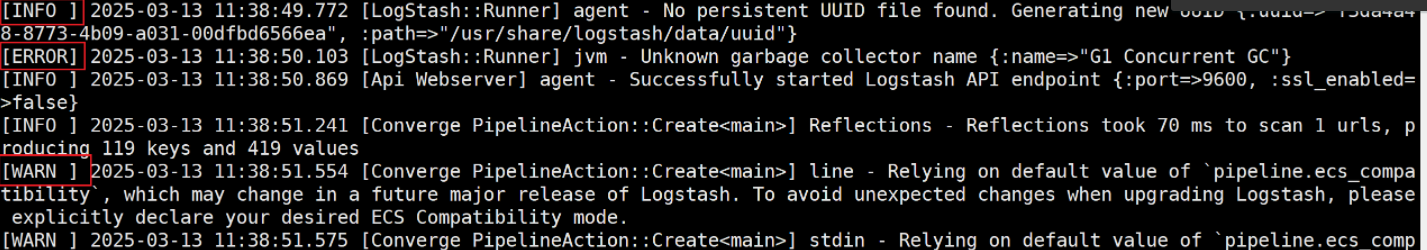

}启动实例会有很多不同程度的报错信息，我们可以指定查看日志程度

我们指定level为warn，不输出info字段了
[root@elk93 ~]# logstash -e "input { stdin { type => stdin } } output { stdout { codec => rubydebug } }"  --log.level warn
加参数 --log.level warn
这样在查看就没有info字段信息了
22222222222222222222222222222222222222222
{"@version" => "1","type" => "stdin","host" => "elk93","message" => "22222222222222222222222222222222222222222","@timestamp" => 2025-03-13T11:41:58.326Z
}

 2. 基于配置文件启动实例

[root@elk93 ~]# cat /etc/logstash/conf.d/01-stdin-to-stout.conf
input {file {path => "/tmp/student.txt"}
}
output { stdout { codec => rubydebug }
}[root@elk93 ~]# logstash -f /etc/logstash/conf.d/01-stdin-to-stout.conf [root@elk93 ~]# echo 11111111111111111111 >>/tmp/student.txt{"host" => "elk93","@version" => "1","path" => "/tmp/student.txt","message" => "11111111111111111111","@timestamp" => 2025-03-13T11:59:53.464Z
}

tips:

logstash也是按行读取数据，不换行默认也不会收集，也会有位置点记录。
logstash和filebeat可以说操作和工作原理都差不多，file beat更加轻量级

3. Logstash采集文本日志策略

[root@elk93 ~]# cat /usr/share/logstash/data/plugins/inputs/file/.sincedb_782d533684abe27068ac85b78871b9fd
1310786 0 64768 30 1741867261.602881 /tmp/student.txt[root@elk93 ~]# cat /etc/logstash/conf.d/01-stdin-to-stout.conf
input {file {path => "/tmp/student.txt"# 指定首次从哪个位置开始采集，有效值为:beginning,end。默认值为"end"start_position => "beginning"}
}
output { stdout { codec => rubydebug }
}
每次重新加载记录都要从头开始读{"host" => "elk93","@version" => "1","path" => "/tmp/student.txt","message" => "hehe","@timestamp" => 2025-03-13T12:07:33.116Z
}我们也可以删除某个我们不想看到的字段，这里就要用到filter过滤了
[root@elk93 ~]# cat /etc/logstash/conf.d/01-stdin-to-stout.conf
input {file {path => "/tmp/student.txt"# 指定首次从哪个位置开始采集，有效值为:beginning,end。默认值为"end"start_position => "beginning"}
}filter {mutate {remove_field => [ "@version","host" ]}
}output { stdout { codec => rubydebug }
}重新启动logstash
[root@elk93 ~]# rm -f /usr/share/logstash/data/plugins/inputs/file/.sincedb*
[root@elk93 ~]# logstash -f /etc/logstash/conf.d/01-stdin-to-stout.conf
{"path" => "/tmp/student.txt","message" => "11111111111111111111","@timestamp" => 2025-03-13T12:10:26.854Z
}
可以看到version和host字段就没了

4.热加载启动配置

修改conf文件立马生效
[root@elk93 ~]# logstash -rf /etc/logstash/conf.d/02-file-to-stdout.conf

5.Logstash多实例案例

跟file beat一样，file beat就是模仿logstash轻量级开发的
启动实例1：
[root@elk93 ~]# logstash -f /etc/logstash/conf.d/01-stdin-to-stdout.conf 启动实例2：
[root@elk93 ~]# logstash -rf /etc/logstash/conf.d/02-file-to-stdout.conf  --path.data /tmp/logstash-multiple

五、Logstash进阶之logstash的过滤器

- 一个服务器节点可以有多个Logstash实例

- 一个Logstash实例可以有多个pipeline，若没有定义pipeline id，则默认为main pipeline。

- 每个pipeline都有三个组件组成，其中filter插件是可选组件:
    - input :
        数据从哪里来 。

    - filter:
        数据经过哪些插件处理，该组件是可选组件。

    - output:
        数据到哪里去。

官网参考:
https://www.elastic.co/guide/en/logstash/7.17/
https://www.elastic.co/guide/en/logstash/7.17/plugins-filters-useragent.html#plugins-filters-useragent-target

1. Logstash采集nginx日志之grok案例

安装nginx
[root@elk93 ~]# apt -y install nginx访问测试
http://10.0.0.93/Logstash采集nginx日志之grok案例
[root@elk93 ~]# vim /etc/logstash/conf.d/02-nginx-grok-to-stout.conf
input { file { path => "/var/log/nginx/access.log"start_position => "beginning"}
} filter {grok {match => { "message" => "%{HTTPD_COMMONLOG}" }}mutate {remove_field => [ "@version","host","path" ]}
}output { stdout { codec => rubydebug }
}[root@elk93 ~]# logstash -rf /etc/logstash/conf.d/02-nginx-grok-to-stout.conf
{"request" => "/","clientip" => "10.0.0.1","timestamp" => "13/Mar/2025:12:18:35 +0000","ident" => "-","verb" => "GET","auth" => "-","response" => "304","bytes" => "0","@timestamp" => 2025-03-13T12:18:40.497Z,"message" => "10.0.0.1 - - [13/Mar/2025:12:18:35 +0000] \"GET / HTTP/1.1\" 304 0 \"-\" \"Mozilla/5.0 (Windows NT 10.0; Win64; x64) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/134.0.0.0 Safari/537.36\"","httpversion" => "1.1"
}

2. Logstash采集nginx日志之useragent案例

[root@elk93 ~]# cat /etc/logstash/conf.d/03-nginx-useragent-to-stout.conf
input { file { path => "/var/log/nginx/access.log"start_position => "beginning"}
} filter {# 基于正则提取任意文本，并将其封装为一个特定的字段。grok {match => { "message" => "%{HTTPD_COMMONLOG}" }}useragent {source => 'message'# 将解析的结果存储到某个特定字段，若不指定，则默认放在顶级字段。target => "linux96_user_agent"
}mutate {remove_field => [ "@version","host","path" ]}
}output { stdout { codec => rubydebug }
}[root@elk93 ~]# logstash -rf /etc/logstash/conf.d/03-nginx-useragent-to-stout.conf {"verb" => "GET","@timestamp" => 2025-03-13T12:27:22.325Z,"ident" => "-","httpversion" => "1.1","timestamp" => "13/Mar/2025:12:27:22 +0000","clientip" => "10.0.0.1","linux96_user_agent" => {"device" => "Other","os_full" => "Windows 10","name" => "Chrome","os_name" => "Windows","os" => "Windows","minor" => "0","os_major" => "10","version" => "134.0.0.0","os_version" => "10","major" => "134","patch" => "0"},"auth" => "-","message" => "10.0.0.1 - - [13/Mar/2025:12:27:22 +0000] \"GET / HTTP/1.1\" 304 0 \"-\" \"Mozilla/5.0 (Windows NT 10.0; Win64; x64) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/134.0.0.0 Safari/537.36\"","bytes" => "0","request" => "/","response" => "304"

3. Logstash采集nginx日志之geoip案例

[root@elk93 ~]# cat /etc/logstash/conf.d/05-nginx-geoip-stdout.conf
input { file { path => "/var/log/nginx/access.log"start_position => "beginning"}
} filter {grok {match => { "message" => "%{HTTPD_COMMONLOG}" }}useragent {source => "message"target => "linux95_user_agent"}# 基于公网IP地址分析你的经纬度坐标点geoip {# 指定要分析的公网IP地址的字段source => "clientip"}mutate {remove_field => [ "@version","host","path" ]}
}output { stdout { codec => rubydebug }
}[root@elk93 ~]# logstash -rf /etc/logstash/conf.d/05-nginx-geoip-stdout.conf
{"verb" => "GET","@timestamp" => 2025-03-13T12:37:05.116Z,"ident" => "-","httpversion" => "1.1","timestamp" => "13/Mar/2025:12:31:27 +0000","clientip" => "221.218.213.9","linux96_user_agent" => {"device" => "Other","os_full" => "Windows 10","name" => "Chrome","os_name" => "Windows","os" => "Windows","minor" => "0","os_major" => "10","version" => "134.0.0.0","os_version" => "10","major" => "134","patch" => "0"},"auth" => "-","message" => "221.218.213.9 - - [13/Mar/2025:12:31:27 +0000] \"GET / HTTP/1.1\" 304 0 \"-\" \"Mozilla/5.0 (Windows NT 10.0; Win64; x64) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/134.0.0.0 Safari/537.36\"","bytes" => "0","request" => "/","response" => "304"
}

4. Logstash采集nginx日志之date案例

[root@elk93 ~]# cat /etc/logstash/conf.d/06-nginx-date-stdout.conf
input { file { path => "/var/log/nginx/access.log"start_position => "beginning"}
} filter {grok {match => { "message" => "%{HTTPD_COMMONLOG}" }}useragent {source => "message"target => "linux95_user_agent"}geoip {source => "clientip"}# 转换日期字段date {# 匹配日期字段，将其转换为日期格式，将来存储到ES，基于官方的示例对号入座对应的格式即可。# https://www.elastic.co/guide/en/logstash/7.17/plugins-filters-date.html#plugins-filters-date-match# "timestamp" => "23/Oct/2024:16:25:25 +0800"match => [ "timestamp", "dd/MMM/yyyy:HH:mm:ss Z" ]# 将match匹配的日期修改后的值直接覆盖到指定字段，若不定义，则默认覆盖"@timestamp"。target => "novacao-timestamp"}mutate {remove_field => [ "@version","host","path" ]}
}output { stdout { codec => rubydebug }
}[root@elk93 ~]# logstash -rf /etc/logstash/conf.d/05-nginx-date-stout.conf {"ident" => "-","clientip" => "10.0.0.1","bytes" => "0","novacao-timestamp" => 2025-03-13T12:57:39.000Z,"httpversion" => "1.1","linux95_user_agent" => {"os_full" => "Windows 10","minor" => "0","name" => "Chrome","device" => "Other","os_name" => "Windows","major" => "134","patch" => "0","version" => "134.0.0.0","os_major" => "10","os" => "Windows","os_version" => "10"},"request" => "/","auth" => "-","verb" => "GET","message" => "10.0.0.1 - - [13/Mar/2025:12:57:39 +0000] \"GET / HTTP/1.1\" 304 0 \"-\" \"Mozilla/5.0 (Windows NT 10.0; Win64; x64) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/134.0.0.0 Safari/537.36\"","@timestamp" => 2025-03-13T12:58:43.691Z,"timestamp" => "13/Mar/2025:12:57:39 +0000","response" => "304"
}

5. Logstash采集nginx日志之mutate案例

[root@elk93 ~]# cat /etc/logstash/conf.d/06-nginx-mutate-stdout.conf
input { file { path => "/var/log/nginx/access.log"start_position => "beginning"}
} filter {grok {match => { "message" => "%{HTTPD_COMMONLOG}" }}useragent {source => "message"target => "linux95_user_agent"}geoip {source => "clientip"}date {match => [ "timestamp", "dd/MMM/yyyy:HH:mm:ss Z" ]target => "novacao-timestamp"}# 对指定字段进行转换处理mutate {# 将指定字段转换成我们需要转换的类型convert => {"bytes" => "integer"}remove_field => [ "@version","host","message" ]}
}output { stdout { codec => rubydebug }
}[root@elk93 ~]# rm -f /usr/share/logstash/data/plugins/inputs/file/.sincedb*
[root@elk93 ~]# logstash -rf /etc/logstash/conf.d/06-nginx-mutate-stdout.conf
{"@timestamp" => 2025-03-13T13:00:17.201Z,"auth" => "-","verb" => "GET","linux95_user_agent" => {"major" => "134","name" => "Chrome","os" => "Windows","minor" => "0","version" => "134.0.0.0","device" => "Other","os_name" => "Windows","os_major" => "10","os_full" => "Windows 10","os_version" => "10","patch" => "0"},"clientip" => "10.0.0.1","path" => "/var/log/nginx/access.log","ident" => "-","timestamp" => "13/Mar/2025:13:00:14 +0000","request" => "/","novacao-timestamp" => 2025-03-13T13:00:14.000Z,"response" => "304","bytes" => 0,"httpversion" => "1.1"
}

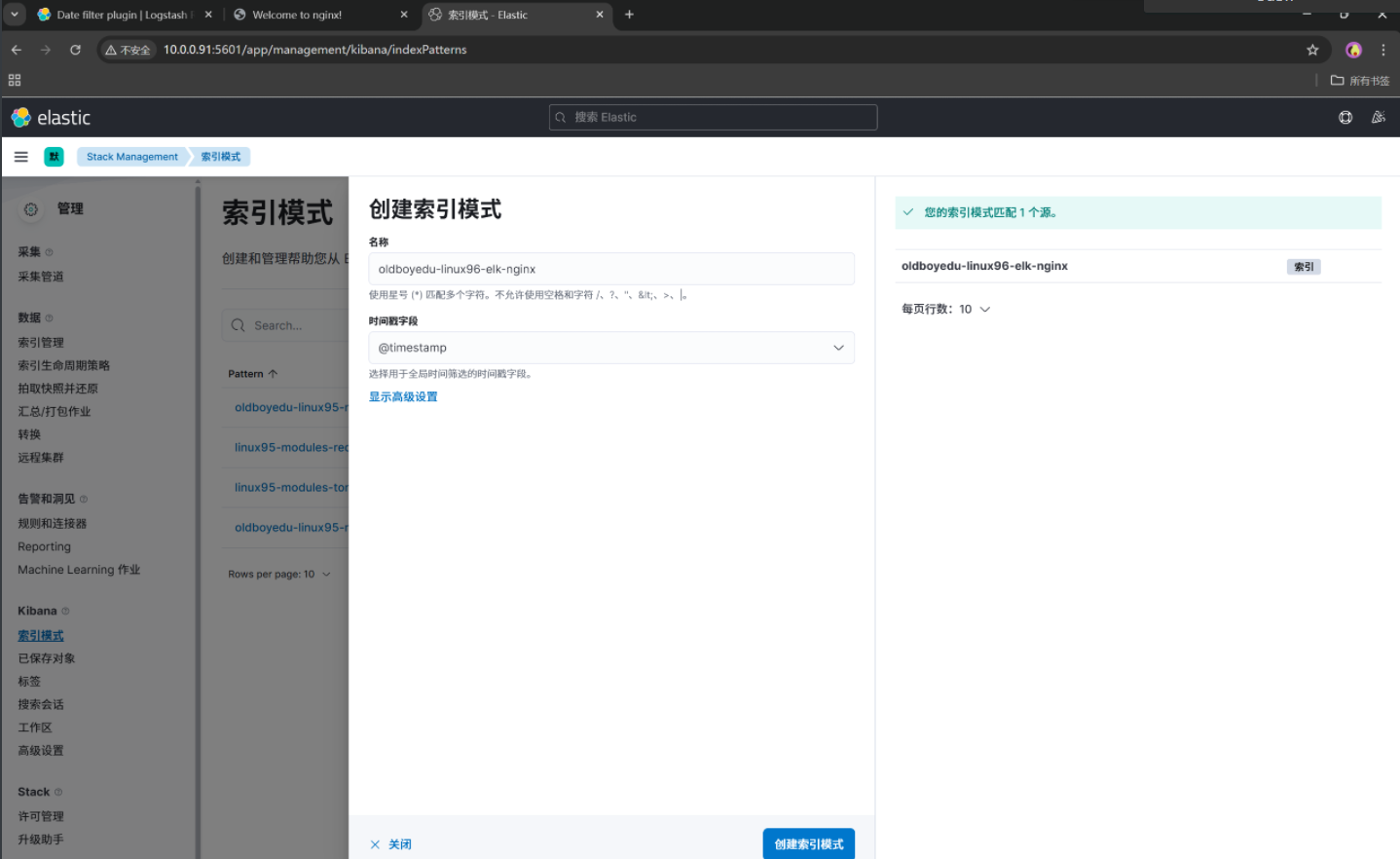

6. Logstash采集nginx日志到ES集群并出图展示

[root@elk93 ~]# cat /etc/logstash/conf.d/07-nginx-to-es.conf
input { file { path => "/var/log/nginx/access.log"start_position => "beginning"}
} filter {grok {match => { "message" => "%{HTTPD_COMMONLOG}" }}useragent {source => "message"target => "linux95_user_agent"}geoip {source => "clientip"}date {match => [ "timestamp", "dd/MMM/yyyy:HH:mm:ss Z" ]target => "novacao-timestamp"}# 对指定字段进行转换处理mutate {# 将指定字段转换成我们需要转换的类型convert => {"bytes" => "integer"}remove_field => [ "@version","host","message" ]}
}output { stdout { codec => rubydebug }elasticsearch {# 对应的ES集群主机列表hosts => ["10.0.0.91:9200","10.0.0.92:9200","10.0.0.93:9200"]# 对应的ES集群的索引名称index => "novacao-linux96-elk-nginx"}
}[root@elk93 ~]# rm -f /usr/share/logstash/data/plugins/inputs/file/.sincedb*
[root@elk93 ~]# logstash -rf /etc/logstash/conf.d/06-nginx-mutate-stdout.conf

存在的问题:
    Failed (timed out waiting for connection to open). Sleeping for 0.02

问题描述:
    此问题在 ElasticStack 7.17.28版本中，可能会出现Logstash无法写入ES的情况。

TODO:
    需要调研官方是否做了改动，导致无法写入成功，需要额外的参数配置。

临时解决方案:
    1.删除filter组件的geoip插件删除，不再添加，然后重新reload一下nginx服务，因为会把nginx的日志锁住。
    2.降版本

六、总结

Logstash作为一款功能强大的开源数据处理管道工具，在数据收集、处理和传输等方面发挥着重要作用。它与Elasticsearch、Kibana等工具配合使用，能够实现高效的数据管理和分析，广泛应用于日志处理、数据监控等领域，为企业和开发者提供了有力的支持。

- logstash架构
    - 多实例和pipeline
        - input
        - output
        - filter

    - 常用的filter组件
        - grok           基于正则提取任意文本，并将其封装为一个特定的字段。
        - date          转换日期字段
        - mutate         对指定字段（的数据类型进行转换处理
        - useragent      用于提取用户的设备信息
        - geoip            基于公网IP地址分析你的经纬度坐标点
