💥1 概述

形态学滤波是从集合论推导出的典型非线性信号处理方法。在这种方法中，可以通过与指定的结构元件（SE）相互作用来挖掘信号中的脉冲特征。SE的参数（即形状、高度和长度）选择对形态过滤结果有重要影响。针对该问题，该文提出一种自适应时变形态滤波（ATVMF）方法。ATVMF可以根据待分析信号的固有特性自适应地确定SE的形状和尺度，有效提高瞬态特征提取能力和计算效率。此外，还提出了广义形态产物算子（GMPO）的定义，可以构造新的形态积算子进行特征提取。

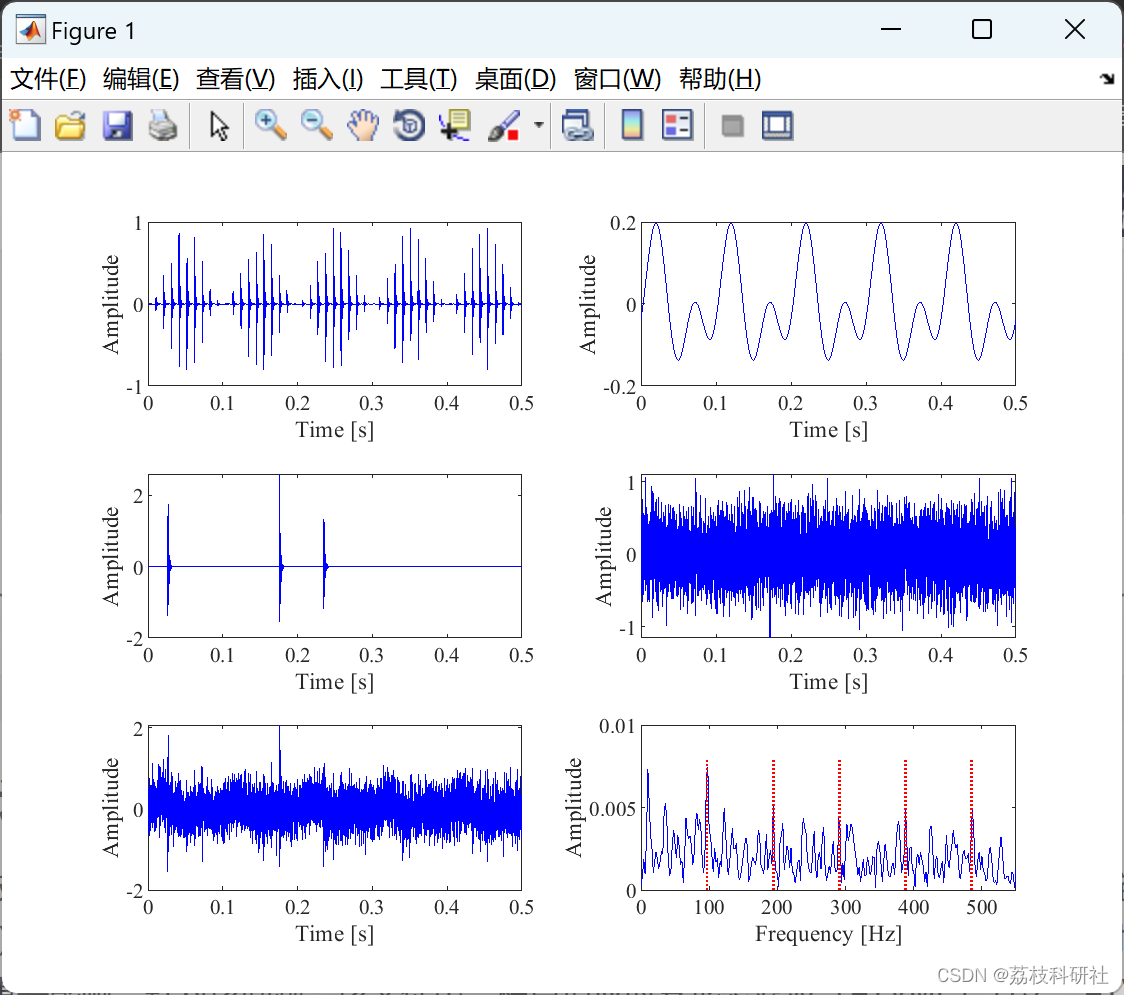

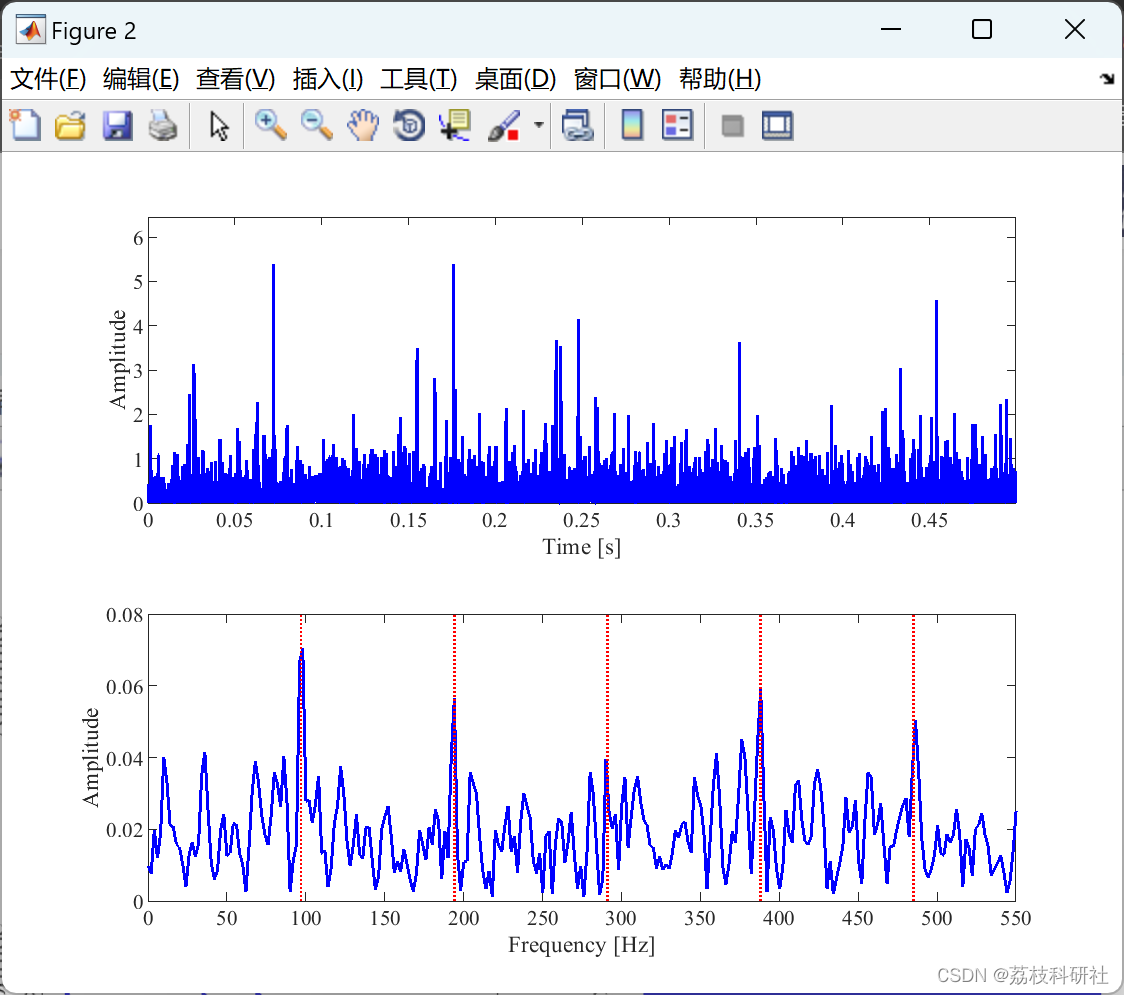

📚2 运行结果

部分代码：

function [ y ] = ATVMF( x, interp_method, operator )

% Algorithm name: Adaptive Time-Varying Morphological Filtering (ATVMF)

%

% Algorithm description: This method can achieve adaptive morphological filtering,

% in which a time-varying structure element (TVSE) is adaptively designed

% based on the characteristics of a signal and is no longer fixed.

%

% Input:

% x: signal to be analyzed (a vector)

% interp_method: selected interpllation method, such as 'spline', 'pchip',

% 'linear' and 'nearest', in which 'spline' is recommended.

% 'spline' -- cubic spline interpolation

% 'pchip' -- cubic Hermitian interpolation

% 'linear' -- piecewise linear interpolation

% 'nearest' -- nearest neighbor interpolation

% operator: selected morphological operator, see sub-function 'MF_operator'

%

% Output:

% y: morphological filtered signal

x = x(:)-mean(x); % a vector

N = length(x);

[indmin, indmax] = extreme_points(x); % Determine the location of local minima and maxima

% indmin -- the position of the local minimum point in the sequence x

% indmax -- the position of the local maximum point in the sequence x

tmin = indmin;

tmax = indmax;

xmin = x(tmin); % The magnitude of the local minimum point

xmax = x(tmax); % The magnitude of the local maximum point

% Sorting of local minimum and maximum points

textra = zeros(1,length(tmin)+length(tmax));

xextra = zeros(1,length(xmin)+length(xmax));

if tmin(1) < tmax(1) % The first extreme point is the minimum point

if tmin(end) > tmax(end) % The last extreme point is the minimum point

textra(1) = tmin(1);

xextra(1) = xmin(1);

for i = 1:length(tmax)

textra(2*i) = tmax(i);

textra(2*i+1) = tmin(i+1);

xextra(2*i) = xmax(i);

xextra(2*i+1) = xmin(i+1);

end

else % The last extreme point is the maximum point

for i = 1:length(tmax)

textra(2*i-1) = tmin(i);

textra(2*i) = tmax(i);

xextra(2*i-1) = xmin(i);

xextra(2*i) = xmax(i);

end

end

else % The first extreme point is the maximum point

if tmin(end) < tmax(end) % The last extreme point is the maximum point

textra(1) = tmax(1);

xextra(1) = xmax(1);

for i = 1:length(tmin)

textra(2*i) = tmin(i);

textra(2*i+1) = tmax(i+1);

xextra(2*i) = xmin(i);

xextra(2*i+1) = xmax(i+1);

end

else % The last extreme point is the minimum point

for i = 1:length(tmin)

textra(2*i-1) = tmax(i);

textra(2*i) = tmin(i);

xextra(2*i-1) = xmax(i);

xextra(2*i) = xmin(i);

end

end

end

% Selection of 'interp_method'

env = interp1(textra,xextra,textra(1):textra(end),interp_method);

delta = textra(1)-1;

S = length(indmin)-1; % number of SE

y = []; % output initialization

for s = 1:S

xnew = x(indmin(s)+1:indmin(s+1));

g = env(indmin(s)+1-delta:indmin(s+1)-delta);

g = g-min(g);

% the morphological filtering result

ynew = MF_operator( xnew, g, operator );

y = [y; ynew];

end

end

%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%

% sub-function

function d = dilation(f,g)

% Morphological dilation operation

N = length(f);

M = length(g);

dtmp = f;

for i = 1:N

for j = 1:M

if (i-j) >= 1 && (i-j) <= N

tmp = f(i-j) + g(j);

if tmp > dtmp(i)

dtmp(i) = tmp;

end

end

end

end

d = dtmp;

end

%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%

% sub-function

function e = erosion(f,g)

% Morphological erosion operation

N = length(f);

M = length(g);

dtmp = f;

for i = 1:N

for j = 1:M

if (i+j) >= 1 && (i+j) <= N

tmp = f(i+j) - g(j);

if tmp < dtmp(i)

dtmp(i) = tmp;

end

end

end

end

e = dtmp;

end

%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%

% sub-function

function y = MF_operator( x, g, operator )

% Morphological operators

%

a1 = dilation(x,g); % dilation

a2 = erosion(a1,g); % closing

a3 = erosion(a2,g);

a4 = dilation(a3,g); % closing-opening

%

b1 = erosion(x,g); % erosion

b2 = dilation(b1,g); % opening

b3 = dilation(b2,g);

b4 = erosion(b3,g); % opening-closing

if strcmp(operator,'Gde') == 1

y = a1-b1;

elseif strcmp(operator,'Gco') == 1

y = a2-b2;

elseif strcmp(operator,'Gcooc') == 1

y = a4-b4;

elseif strcmp(operator,'AHde') == 1

y = x-(a1+b1)/2;

elseif strcmp(operator,'AHco') == 1

y = x-(a2+b2)/2;

elseif strcmp(operator,'AHcooc') == 1

y = x-(a4+b4)/2;

elseif strcmp(operator,'MGPO1') == 1

y = (a1-b1).*(a2-b2);

elseif strcmp(operator,'MGPO2') == 1

y = (a1-b1).*(a4-b4);

elseif strcmp(operator,'MGPO3') == 1

🎉3 参考文献

部分理论来源于网络，如有侵权请联系删除。

[1]陈斌， 宋大鹏， 张伟， 程彦， 王志， 一种用于轴承故障诊断的性能增强时变形态滤波方法， 测量学报 （2021） 109163.

[2]陈斌， 程彦， 张文， 梅国， 用于轴承断层特征提取的增强数学形态算子研究， ISA Trans. （2021）

[3]B. Chen, D. Song, W. Zhang, Y. Cheng, Z. Wang, A performance enhanced time-varying morphological filtering method for bearing fault diagnosis, Meas. J. Int. Meas. Confed. 176 (2021) 109163.

[4]B. Chen, Y. Cheng, W. Zhang, G. Mei, Investigation on enhanced mathematical morphological operators for bearing fault feature extraction, ISA Trans. (2021). https://doi.org/10.1016/j.isatra.2021.07.027.
