MaxCompute开发UDF和UDTF案例

一、Java开发UDF

1、创建Maven项目

创建Maven项目,名称为 MaxComputeUDF 配置pom文件如下

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd"><modelVersion>4.0.0</modelVersion><groupId>org.example</groupId><artifactId>MaxComputeUDF</artifactId><version>1.0-SNAPSHOT</version><packaging>jar</packaging><dependencies><dependency><groupId>org.apache.httpcomponents</groupId><artifactId>httpclient</artifactId><version>4.5.5</version></dependency><dependency><groupId>commons-codec</groupId><artifactId>commons-codec</artifactId><version>1.11</version></dependency><dependency><groupId>com.github.ben-manes.caffeine</groupId><artifactId>caffeine</artifactId><version>2.7.0</version></dependency><dependency><groupId>com.google.code.gson</groupId><artifactId>gson</artifactId><version>2.10.1</version></dependency><dependency><groupId>com.alibaba</groupId><artifactId>fastjson</artifactId><version>1.2.62</version></dependency><!-- https://mvnrepository.com/artifact/org.slf4j/slf4j-api --><dependency><groupId>org.slf4j</groupId><artifactId>slf4j-api</artifactId><version>1.7.25</version></dependency><!-- https://mvnrepository.com/artifact/ch.qos.logback/logback-classic --><dependency><groupId>ch.qos.logback</groupId><artifactId>logback-classic</artifactId><version>1.2.3</version></dependency><!-- https://mvnrepository.com/artifact/ch.qos.logback/logback-core --><dependency><groupId>ch.qos.logback</groupId><artifactId>logback-core</artifactId><version>1.2.3</version></dependency><dependency><groupId>org.projectlombok</groupId><artifactId>lombok</artifactId><version>1.18.20</version></dependency><dependency><groupId>com.aliyun.odps</groupId><artifactId>odps-sdk-core</artifactId><version>${sdk.version}</version></dependency><dependency><groupId>com.aliyun.odps</groupId><artifactId>odps-sdk-udf</artifactId><version>${sdk.version}</version></dependency><dependency><groupId>com.aliyun.odps</groupId><artifactId>odps-udf-local</artifactId><version>${sdk.version}</version></dependency><dependency><groupId>com.aliyun.odps</groupId><artifactId>odps-sdk-mapred</artifactId><version>${sdk.version}</version></dependency><dependency><groupId>com.aliyun.odps</groupId><artifactId>odps-mapred-local</artifactId><version>${sdk.version}</version></dependency><dependency><groupId>com.aliyun.odps</groupId><artifactId>odps-sdk-graph</artifactId><version>${sdk.version}</version></dependency><dependency><groupId>com.aliyun.odps</groupId><artifactId>odps-graph-local</artifactId><version>${sdk.version}</version></dependency></dependencies><properties><sdk.version>0.38.3-public</sdk.version><maven.compiler.source>1.8</maven.compiler.source><maven.compiler.target>1.8</maven.compiler.target></properties><build><plugins><!-- Scala Compiler --><plugin><groupId>net.alchim31.maven</groupId><artifactId>scala-maven-plugin</artifactId><version>3.2.2</version><executions><execution><id>scala-compile-first</id><phase>process-resources</phase><goals><goal>compile</goal></goals></execution><execution><id>scala-test-compile</id><phase>process-test-resources</phase><goals><goal>testCompile</goal></goals></execution></executions><configuration><args><arg>-nobootcp</arg></args></configuration></plugin><plugin><groupId>org.apache.maven.plugins</groupId><artifactId>maven-shade-plugin</artifactId><version>3.0.0</version><executions><!-- Run shade goal on package phase --><execution><phase>package</phase><goals><goal>shade</goal></goals><configuration><artifactSet><excludes><exclude>org.apache.flink:force-shading</exclude><exclude>com.google.code.findbugs:jsr305</exclude><!--                                    <exclude>org.slf4j:*</exclude>--><!--                                    <exclude>log4j:*</exclude>--></excludes></artifactSet><filters><filter><!-- Do not copy the signatures in the META-INF folder.Otherwise, this might cause SecurityExceptions when using the JAR. --><artifact>*:*</artifact><excludes><exclude>META-INF/*.SF</exclude><exclude>META-INF/*.DSA</exclude><exclude>META-INF/*.RSA</exclude></excludes></filter></filters><transformers><transformerimplementation="org.apache.maven.plugins.shade.resource.ManifestResourceTransformer"><mainClass></mainClass></transformer></transformers></configuration></execution></executions></plugin></plugins></build>
</project>

2、创建UDF类

逻辑简单,仅供测试使用

package com.aliyun;import com.aliyun.odps.udf.UDF;
import com.aliyun.odps.udf.annotation.Resolve;@Resolve({"string->string"})
public final class MyUDF extends UDF {public String evaluate(String s) {if (s == null) {return null;}return s.toLowerCase();}
}

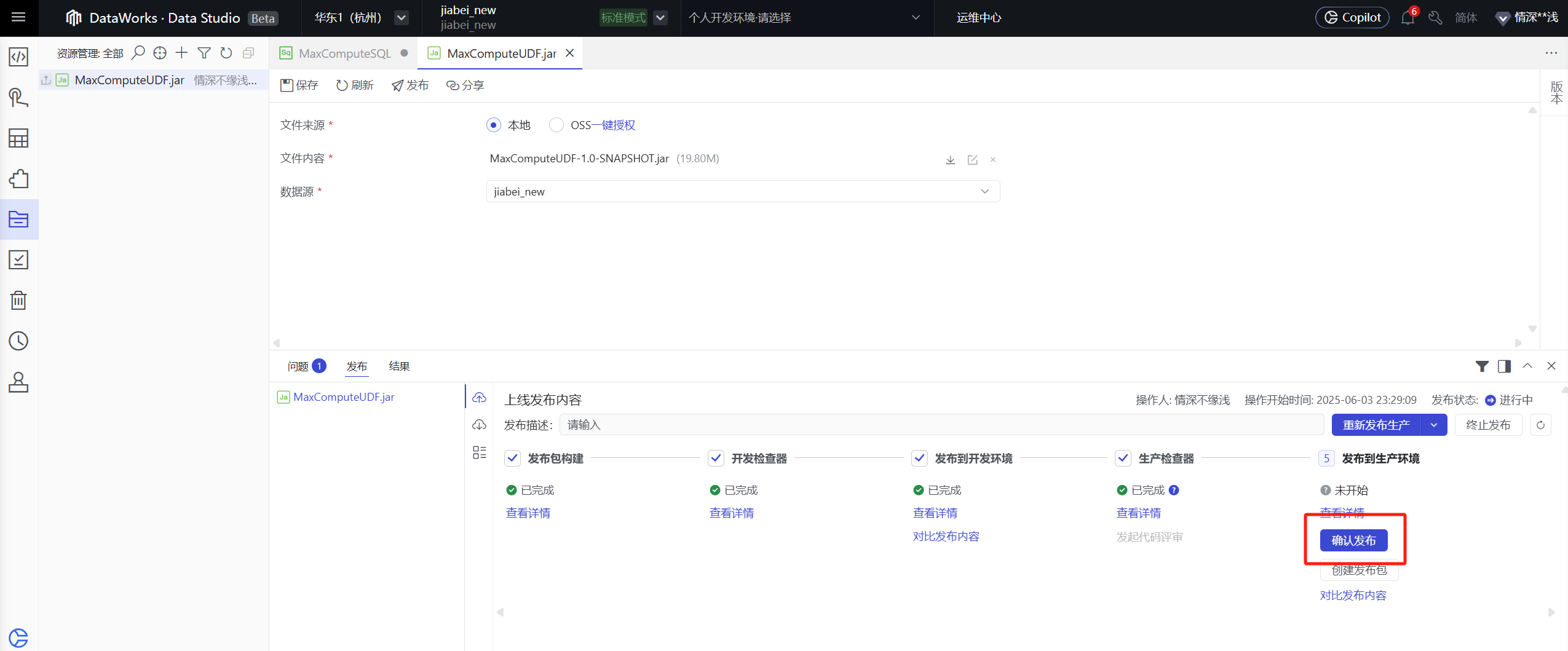

3、打包上传资源

在Dataworks数据开发页面上传资源并发布

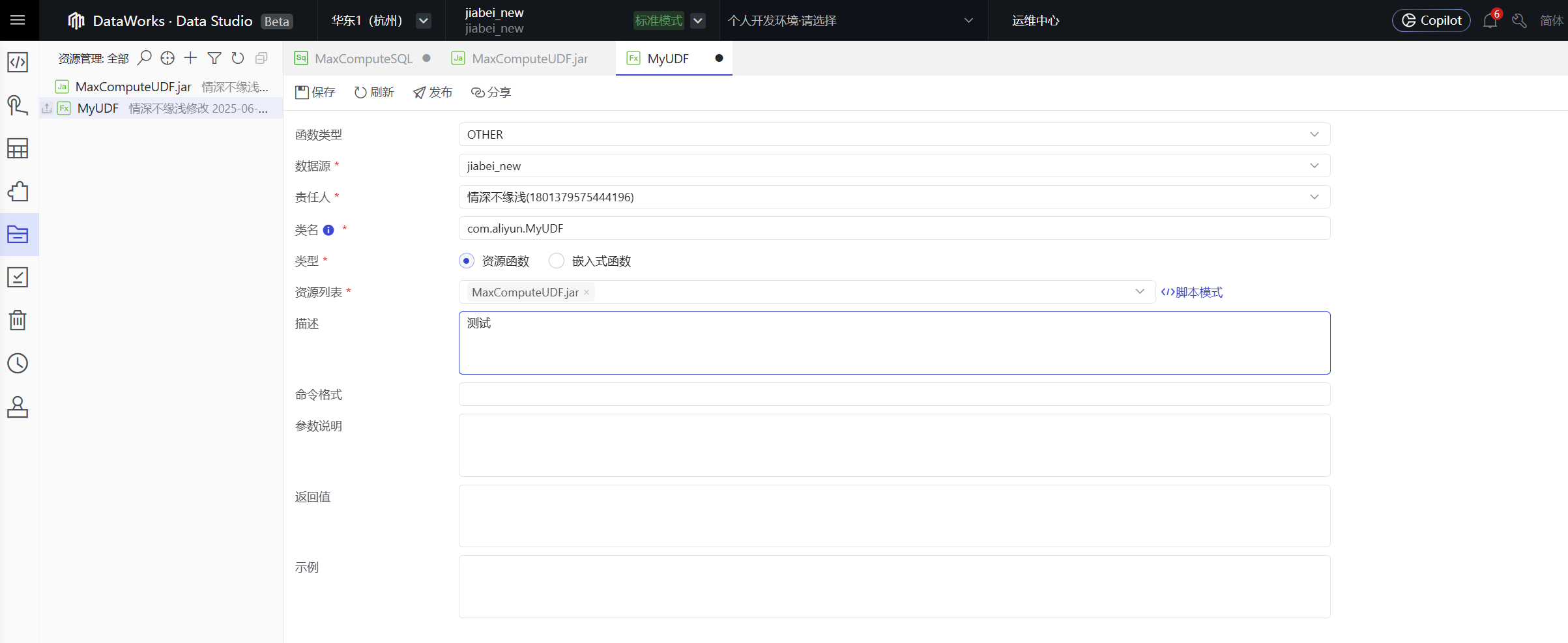

4、创建函数MyUDF

配置如下

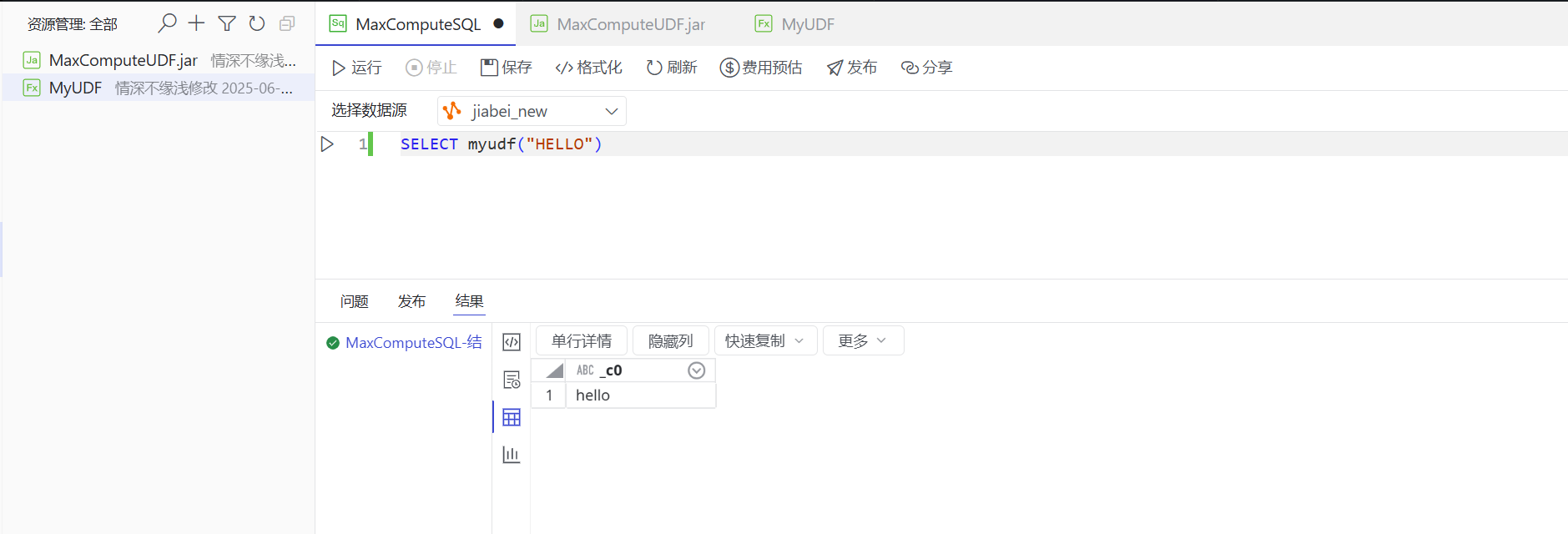

5、SQL验证

--函数名不区分大小写
SELECT myudf("HELLO")

二、Java开发UDTF

1、创建Maven项目

上面已创建项目,pom文件也配置好了,直接跳过该步骤

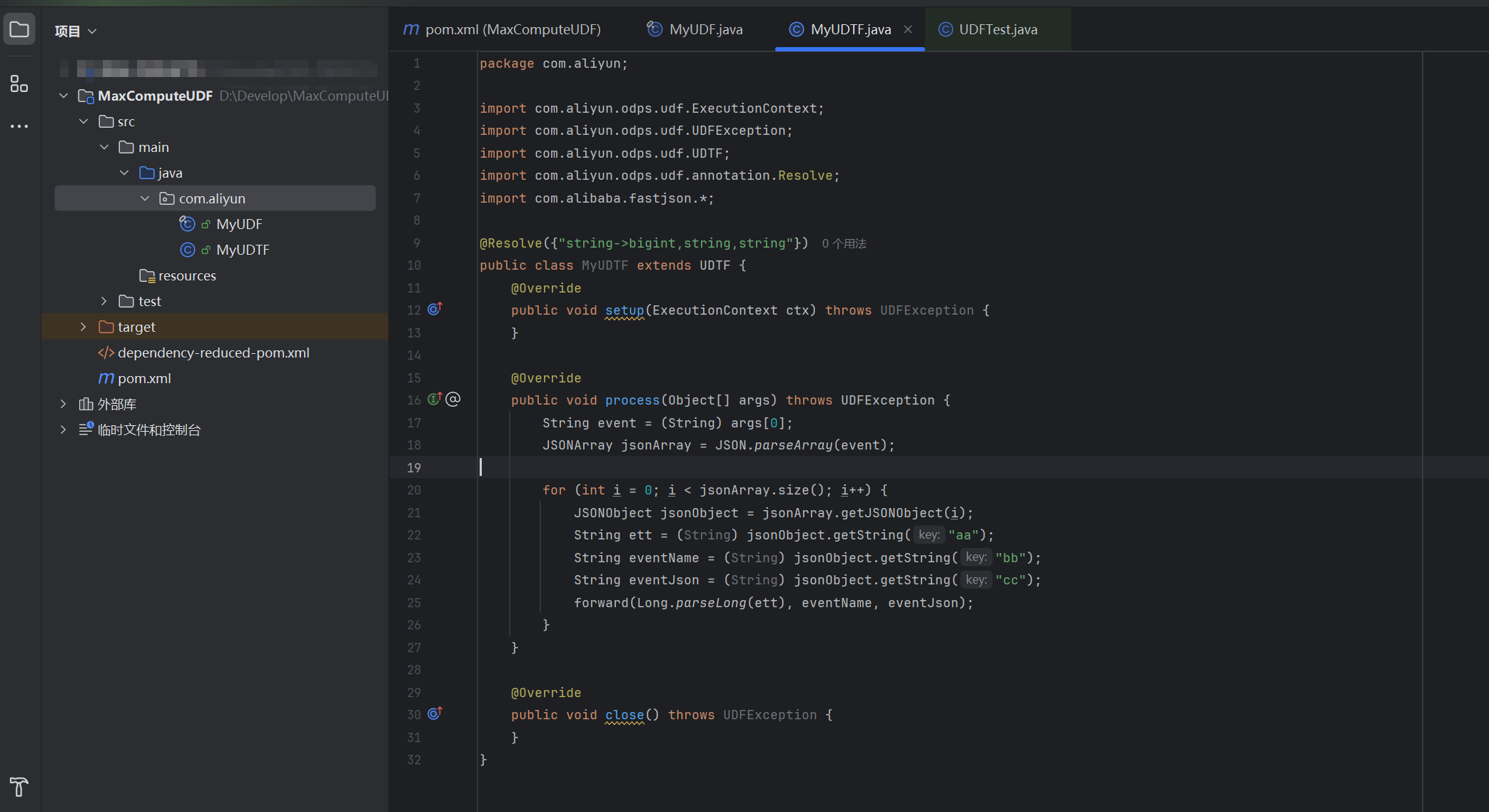

2、创建UDTF类

package com.aliyun;import com.aliyun.odps.udf.ExecutionContext;
import com.aliyun.odps.udf.UDFException;
import com.aliyun.odps.udf.UDTF;
import com.aliyun.odps.udf.annotation.Resolve;
import com.alibaba.fastjson.*;@Resolve({"string->bigint,string,string"})
public class MyUDTF extends UDTF {@Overridepublic void process(Object[] args) throws UDFException {String event = (String) args[0];JSONArray jsonArray = JSON.parseArray(event);for (int i = 0; i < jsonArray.size(); i++) {JSONObject jsonObject = jsonArray.getJSONObject(i);String ett = (String) jsonObject.getString("aa");String eventName = (String) jsonObject.getString("bb");String eventJson = (String) jsonObject.getString("cc");forward(Long.parseLong(ett), eventName, eventJson);}}
}

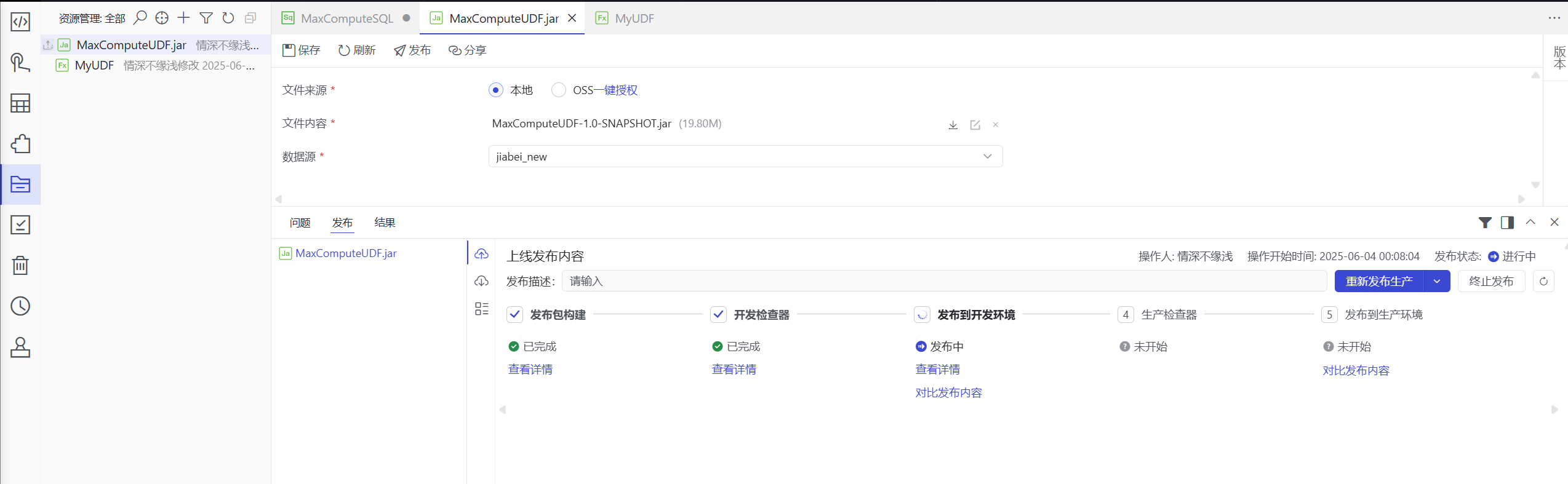

3、打包上传更新资源

打包后直接更新第一次上传的jar包,重新发布

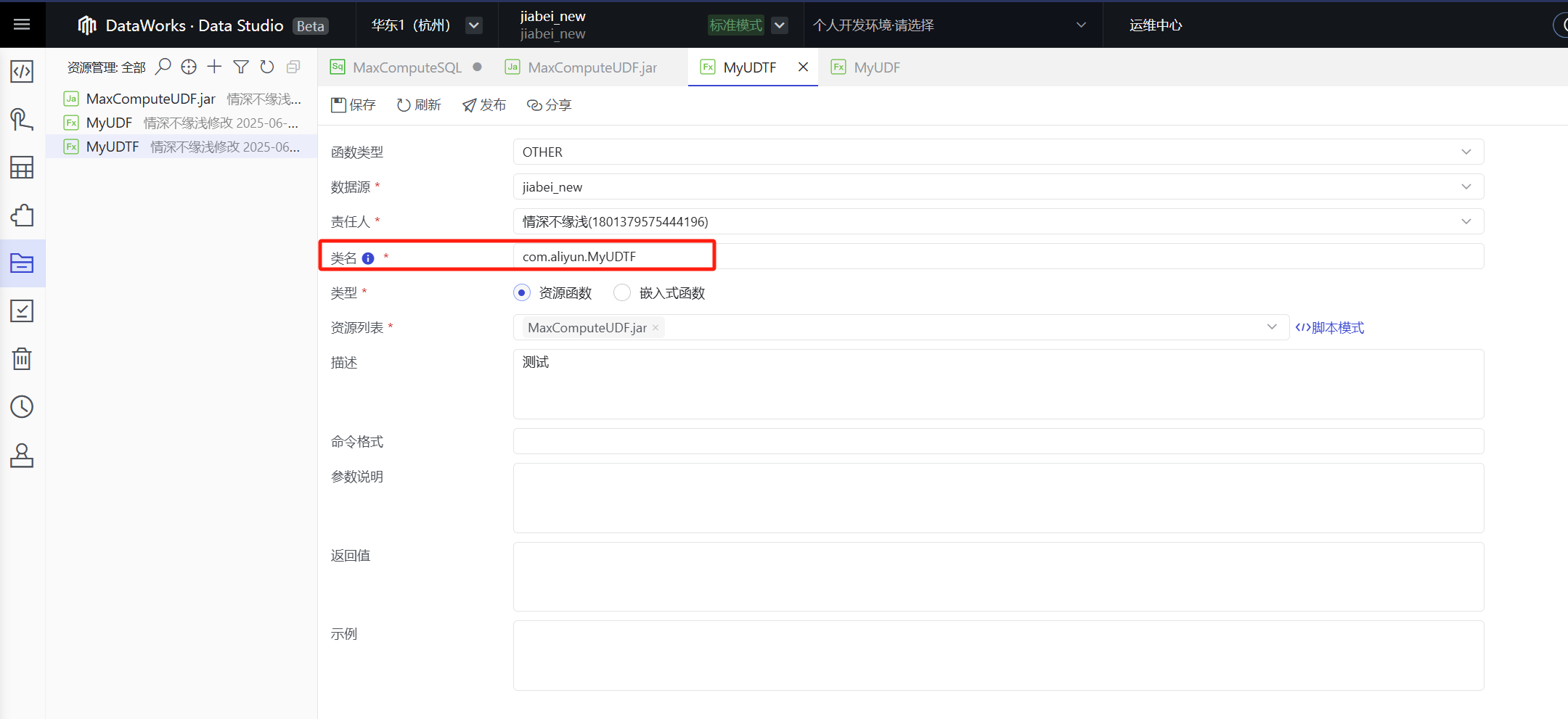

4、创建函数MyUDTF

配置如下

5、SQL验证

测试数据如下

{"a": "","b": "app","key": [{"aa": "1","bb": "张三","cc": {"age": "21","des": "工人"}},{"aa": "2","bb": "李四","cc": {"age": 24,"des": "大学生"}},{"aa": "3","bb": "王五","cc": {"age": "33","des": "老师"}}]
}

测试SQL如下

SELECT  MyUDTF(GET_JSON_OBJECT('{"a": "","b": "app","key": [{"aa": "1","bb": "张三","cc": {"age": "21","des": "工人"}},{"aa": "2","bb": "李四","cc": {"age": 24,"des": "大学生"}},{"aa": "3","bb": "王五","cc": {"age": "33","des": "老师"}}]
}','$.key')
) AS (id,name,jsonvalue)
;

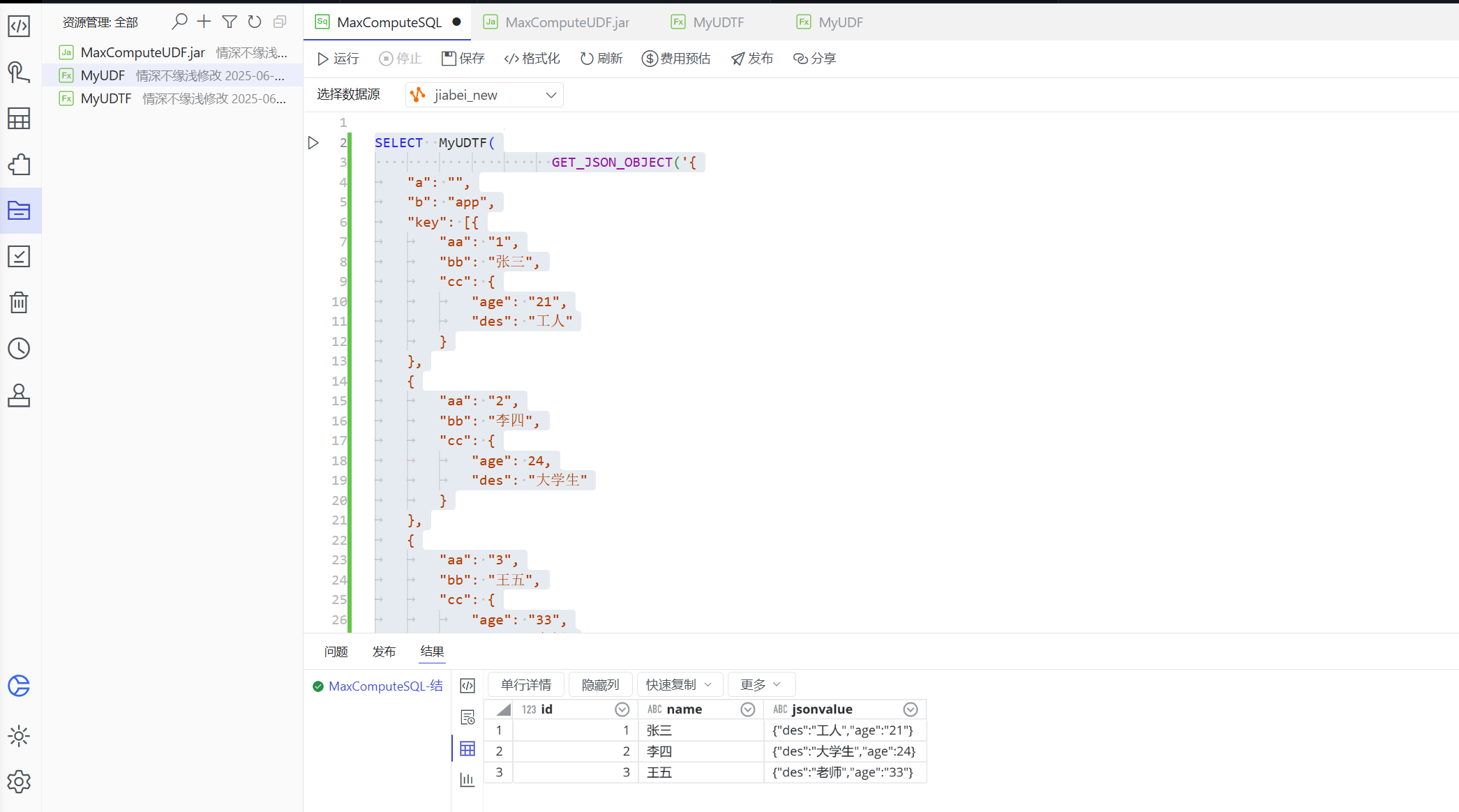

测试结果如下

三、常见问题

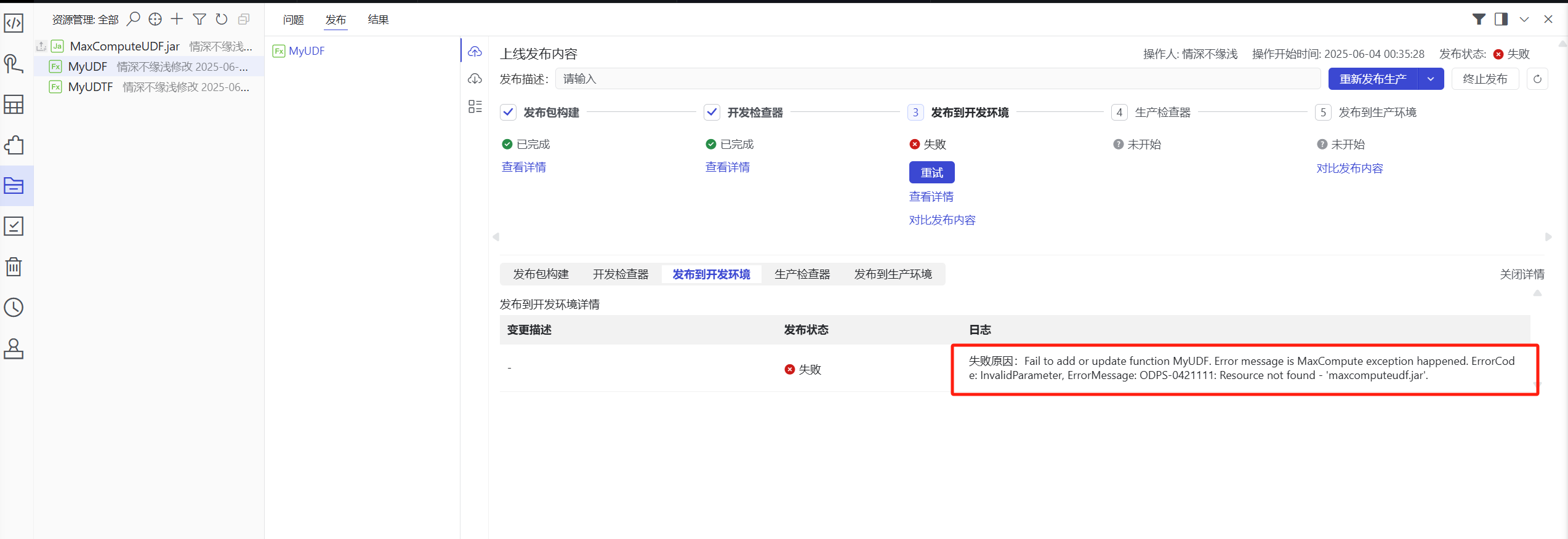

1、发布函数报错

失败原因：Fail to add or update function MyUDF. Error message is MaxCompute exception happened. ErrorCode: InvalidParameter, ErrorMessage: ODPS-0421111: Resource not found - ‘maxcomputeudf.jar’.

问题原因: 引用的资源没有发布,导致找不到资源
解决方案: 先发布引用的资源, 再重试发布函数即可,这里注意未发布的资源会有上传的符号
