Spring源码5.2.9 编译踩坑

源码编译踩坑

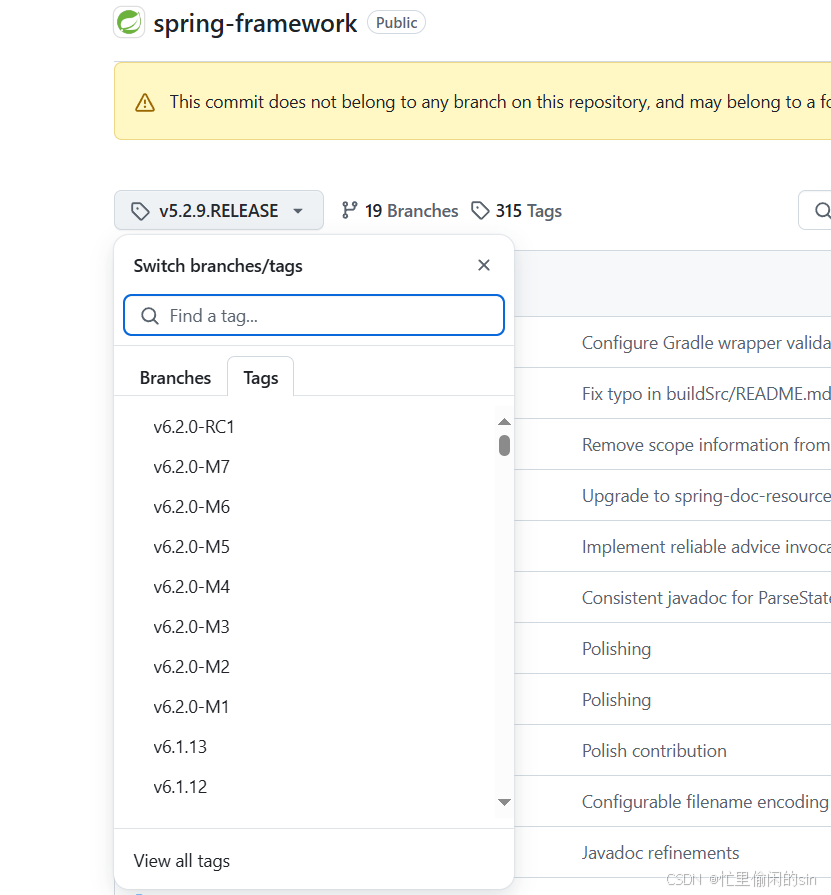

拉取源码

我这块以5.2.9版本为例

spring-projects/spring-framework at v5.2.9.RELEASE (github.com)

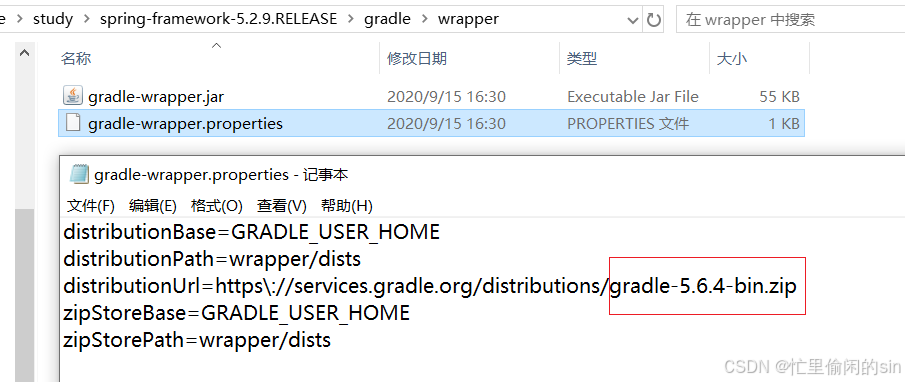

版本分析

确定版本

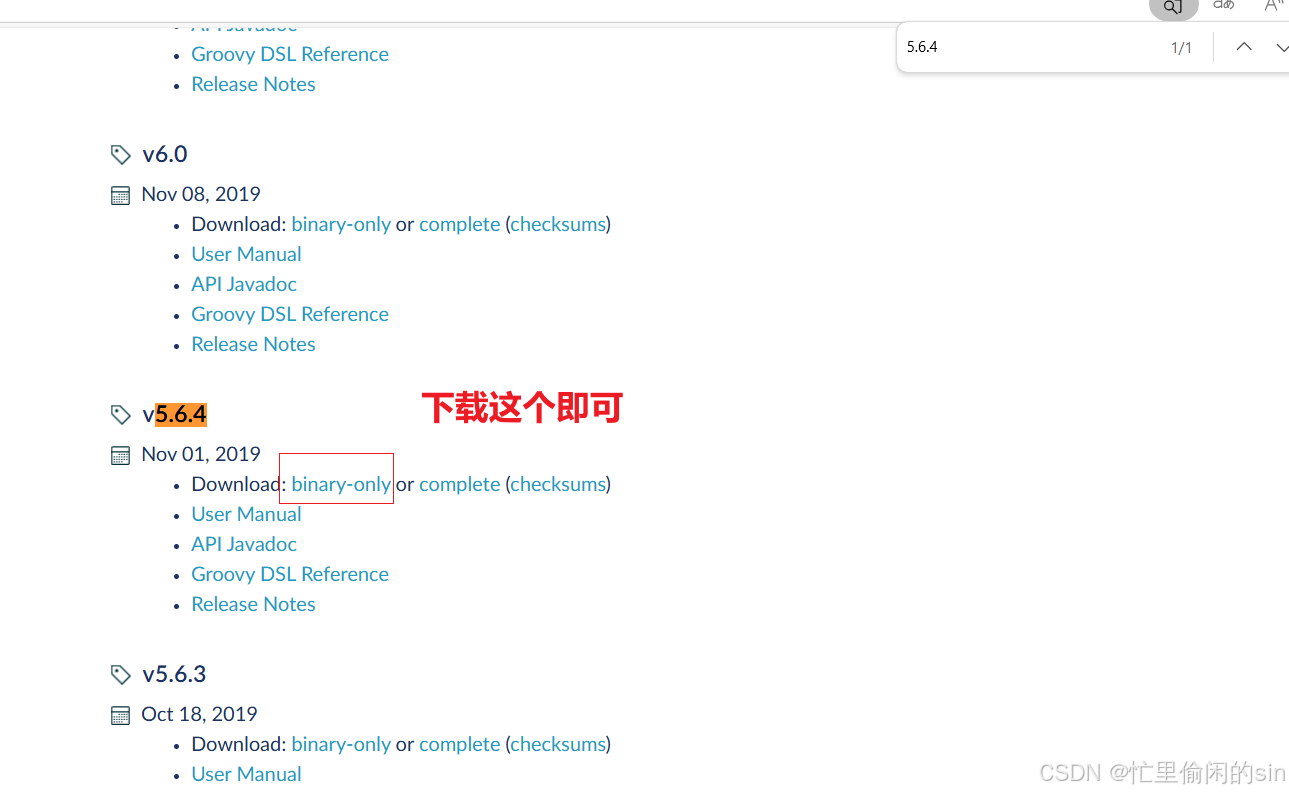

这块将Gradle升级到了5.6.4 ，我们去官网下载即可

Gradle安装

Gradle | Releases

解压

将其解压到你想存放的文件夹

配置环境变量

• 右键“此电脑”–>“属性”–>“高级系统设置”–>“环境变量”–>“系统变量”
• 我们在系统变量中新增一个GRADLE_HOME值为解压后的路径
• 修改Path变量，将Gradle的bin目录添加进去，
• 在Path变量添加%GRADLE_HOME%\bin

在环境变量中配置默认的仓库地址

在系统变量中新增一个GRADLE_USER_HOME 值为仓库路径

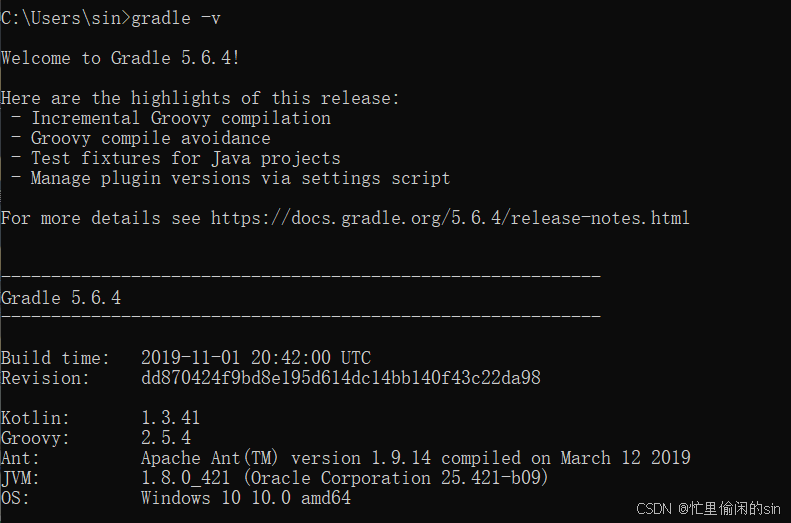

验证

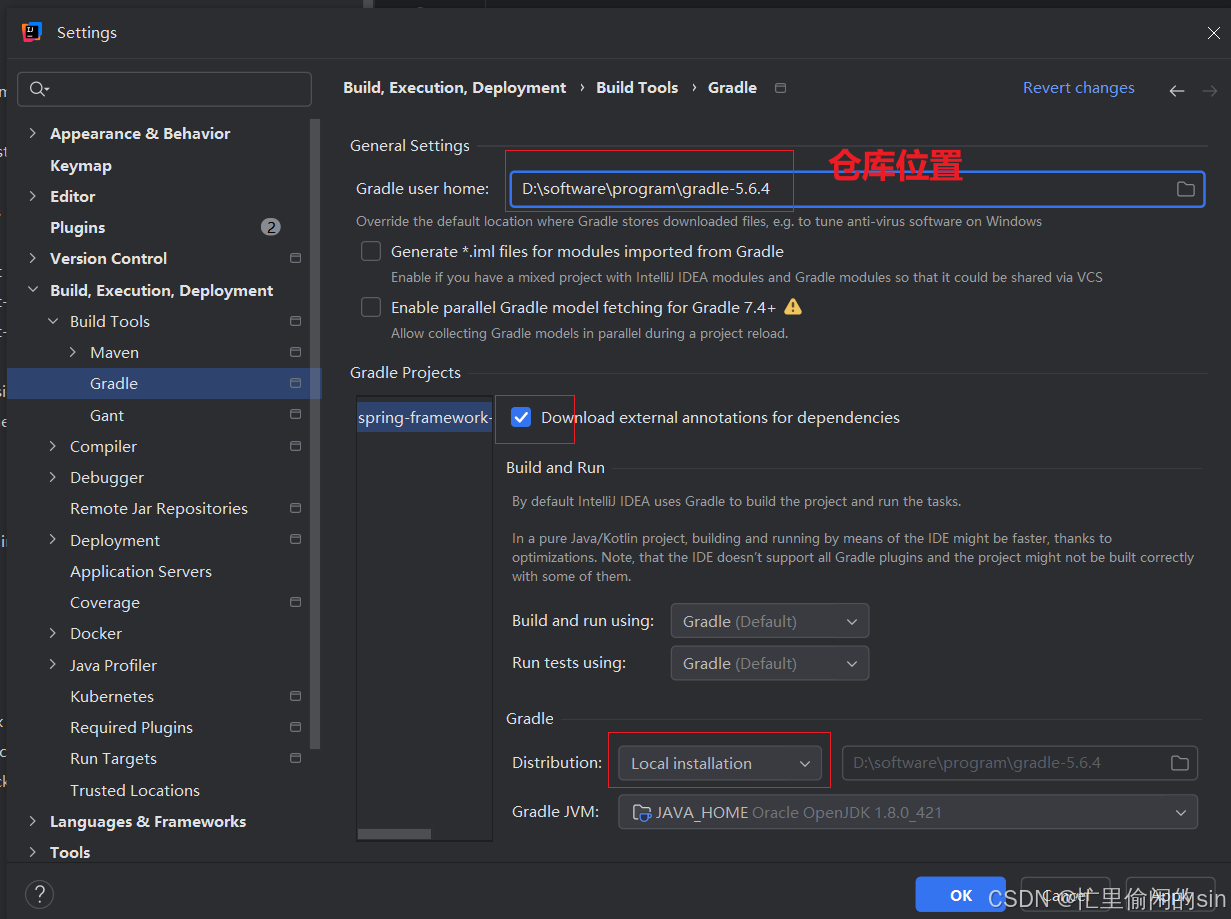

默认下载依赖会在当前目录下

注释掉

安全导入 不信任

等配置结束后在信任文件

这些配置都看一下

修改版本

plugins {id 'io.spring.dependency-management' version '1.0.9.RELEASE' apply false//id 'io.spring.gradle-enterprise-conventions' version '0.0.2'id 'io.spring.nohttp' version '0.0.5.RELEASE'id 'org.jetbrains.kotlin.jvm' version '1.3.72' apply falseid 'org.jetbrains.dokka' version '0.10.1' apply falseid 'org.asciidoctor.jvm.convert' version '2.4.0'id 'de.undercouch.download' version '4.1.1'id "io.freefair.aspectj" version '4.1.6' apply falseid 'com.gradle.build-scan' version '3.2'id "com.jfrog.artifactory" version '4.24.20' apply falseid "com.github.ben-manes.versions" version '0.24.0'
}

因为spring是使用gradle打包的，我们在编译前先配置下gradle的国内镜像，找到项目里面的build.gradle文件，在repositories中添加代码保存，如下图

repositories {mavenCentral()maven { url "https://maven.aliyun.com/repository/public" }maven { url "https://maven.aliyun.com/repository/spring-plugin" }maven { url "https://maven.aliyun.com/nexus/content/groups/public/" }maven { url "https://maven.aliyun.com/nexus/content/repositories/spring-plugin" }maven { url 'http://maven.aliyun.com/nexus/content/repositories/google' }maven { url "https://repo.spring.io/libs-spring-framework-build" }}

gradle.properties

version=5.2.9.RELEASE
## 设置此参数主要是编译下载包会占用大量的内存，可能会内存溢出
org.gradle.jvmargs=-Xmx2048M
## 开启 Gradle 缓存
org.gradle.caching=true
## 开启并行编译
org.gradle.parallel=true
## 启用新的孵化模式
org.gradle.configureondemand=true
## 开启守护进程 通过开启守护进程，下一次构建的时候，将会连接这个守护进程进行构建，而不是重新fork一个gradle构建进程
org.gradle.daemon=true

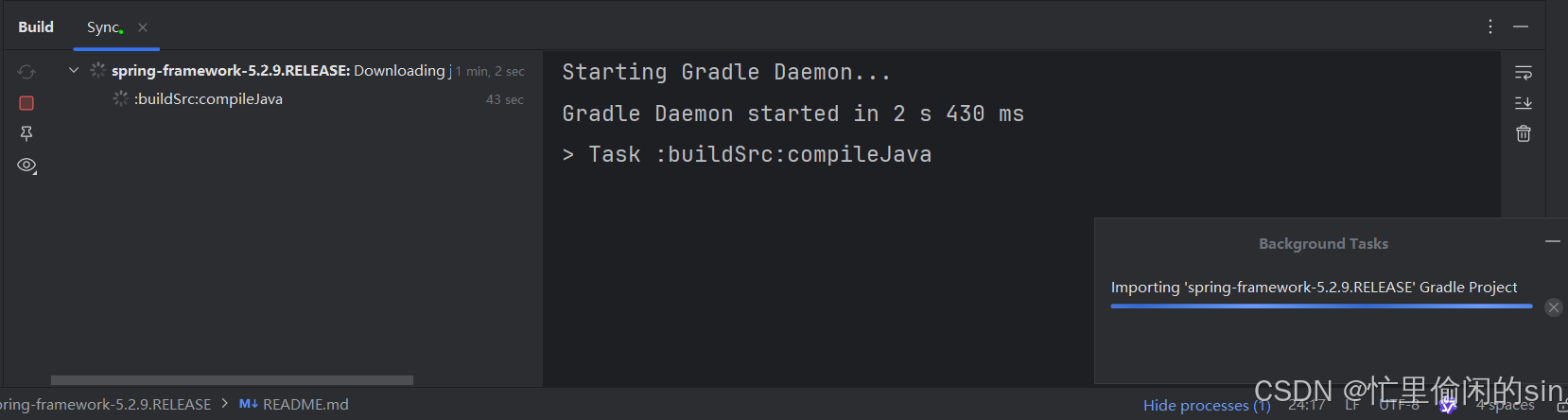

等待构建

时间取决于网络

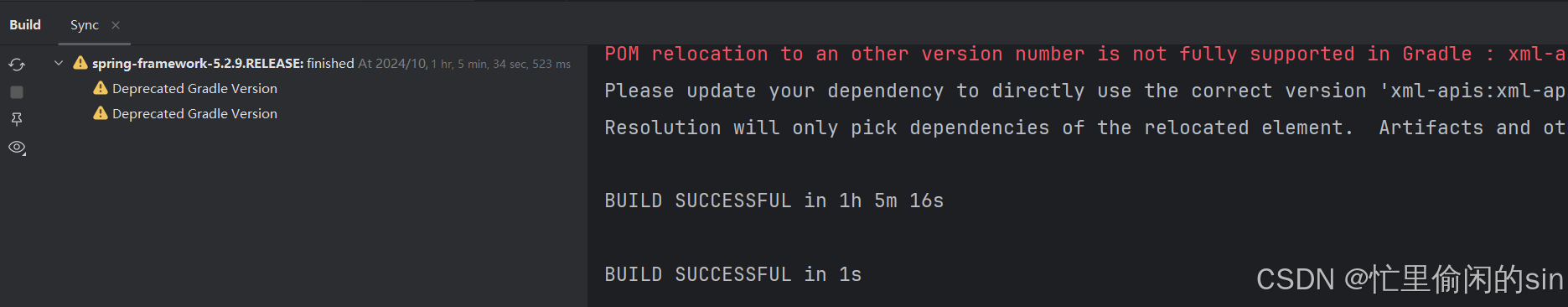

完成

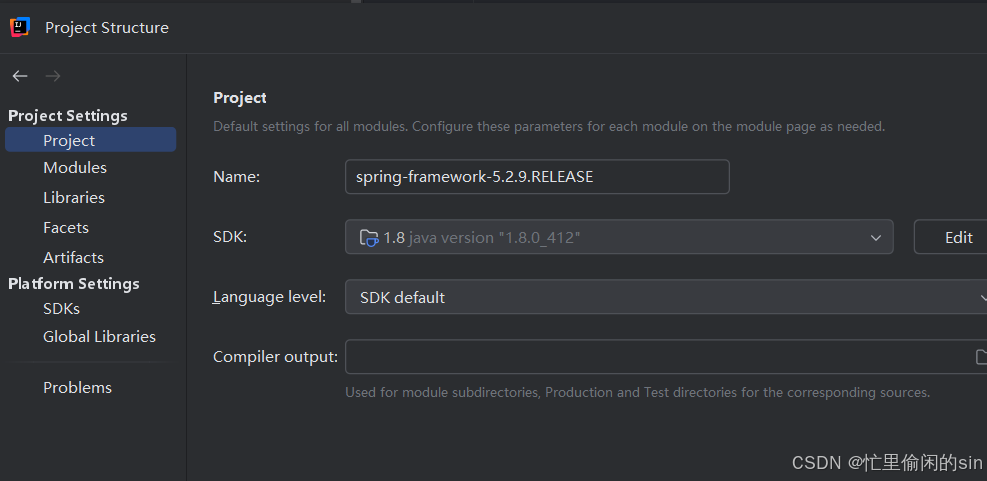

测试

忒慢

说到最后

本项目只需要修改两个文件
gradle.properties和build.gradle
下面给出完整内容
gradle.properties完整文件内容

version=5.2.9.RELEASE
## 设置此参数主要是编译下载包会占用大量的内存，可能会内存溢出
org.gradle.jvmargs=-Xmx2048M
## 开启 Gradle 缓存
org.gradle.caching=true
## 开启并行编译
org.gradle.parallel=true
## 启用新的孵化模式
org.gradle.configureondemand=true
## 开启守护进程 通过开启守护进程，下一次构建的时候，将会连接这个守护进程进行构建，而不是重新fork一个gradle构建进程
org.gradle.daemon=true

build.gradle完整文件内容

plugins {id 'io.spring.dependency-management' version '1.0.9.RELEASE' apply false//id 'io.spring.gradle-enterprise-conventions' version '0.0.2'id 'io.spring.nohttp' version '0.0.5.RELEASE'id 'org.jetbrains.kotlin.jvm' version '1.3.72' apply falseid 'org.jetbrains.dokka' version '0.10.1' apply falseid 'org.asciidoctor.jvm.convert' version '2.4.0'id 'de.undercouch.download' version '4.1.1'id "io.freefair.aspectj" version '4.1.6' apply falseid 'com.gradle.build-scan' version '3.2'id "com.jfrog.artifactory" version '4.24.20' apply falseid "com.github.ben-manes.versions" version '0.24.0'
}apply from: "$rootDir/gradle/build-scan-user-data.gradle"
ext {moduleProjects = subprojects.findAll { it.name.startsWith("spring-") }javaProjects = subprojects - project(":framework-bom")withoutJclOverSlf4j = {exclude group: "org.slf4j", name: "jcl-over-slf4j"}
}configure(allprojects) { project ->apply plugin: "io.spring.dependency-management"dependencyManagement {imports {mavenBom "com.fasterxml.jackson:jackson-bom:2.10.5"mavenBom "io.netty:netty-bom:4.1.51.Final"mavenBom "io.projectreactor:reactor-bom:Dysprosium-SR12"mavenBom "io.rsocket:rsocket-bom:1.0.1"mavenBom "org.eclipse.jetty:jetty-bom:9.4.31.v20200723"mavenBom "org.jetbrains.kotlin:kotlin-bom:1.3.72"mavenBom "org.jetbrains.kotlinx:kotlinx-coroutines-bom:1.3.5"mavenBom "org.junit:junit-bom:5.6.2"}dependencies {dependencySet(group: 'org.apache.logging.log4j', version: '2.13.3') {entry 'log4j-api'entry 'log4j-core'entry 'log4j-slf4j-impl'entry 'log4j-jul'}dependency "org.slf4j:slf4j-api:1.7.30"dependency "com.google.code.findbugs:jsr305:3.0.2"dependencySet(group: 'org.aspectj', version: '1.9.6') {entry 'aspectjrt'entry 'aspectjtools'entry 'aspectjweaver'}dependencySet(group: 'org.codehaus.groovy', version: '2.5.13') {entry 'groovy'entry 'groovy-jsr223'entry 'groovy-templates'entry 'groovy-test'entry 'groovy-xml'}dependency "io.reactivex:rxjava:1.3.8"dependency "io.reactivex:rxjava-reactive-streams:1.2.1"dependency "io.reactivex.rxjava2:rxjava:2.2.19"dependency "io.projectreactor.tools:blockhound:1.0.2.RELEASE"dependency "com.caucho:hessian:4.0.63"dependency "com.fasterxml:aalto-xml:1.2.2"dependency("com.fasterxml.woodstox:woodstox-core:6.2.1") {exclude group: "stax", name: "stax-api"}dependency "com.google.code.gson:gson:2.8.6"dependency "com.google.protobuf:protobuf-java-util:3.11.4"dependency "com.googlecode.protobuf-java-format:protobuf-java-format:1.4"dependency("com.thoughtworks.xstream:xstream:1.4.11.1") {exclude group: "xpp3", name: "xpp3_min"exclude group: "xmlpull", name: "xmlpull"}dependency "org.apache.johnzon:johnzon-jsonb:1.2.8"dependency("org.codehaus.jettison:jettison:1.3.8") {exclude group: "stax", name: "stax-api"}dependencySet(group: 'org.jibx', version: '1.3.3') {entry 'jibx-bind'entry 'jibx-run'}dependency "org.ogce:xpp3:1.1.6"dependency "org.yaml:snakeyaml:1.26"dependency "com.h2database:h2:1.4.200"dependency "com.github.ben-manes.caffeine:caffeine:2.8.5"dependency "com.github.librepdf:openpdf:1.3.20"dependency "com.rometools:rome:1.12.2"dependency "commons-io:commons-io:2.5"dependency "io.vavr:vavr:0.10.3"dependency "net.sf.jopt-simple:jopt-simple:5.0.4"dependencySet(group: 'org.apache.activemq', version: '5.8.0') {entry 'activemq-broker'entry('activemq-kahadb-store') {exclude group: "org.springframework", name: "spring-context"}entry 'activemq-stomp'}dependency "org.apache.bcel:bcel:6.0"dependency "org.apache.commons:commons-pool2:2.8.0"dependencySet(group: 'org.apache.derby', version: '10.14.2.0') {entry 'derby'entry 'derbyclient'}dependency "org.apache.poi:poi-ooxml:4.1.2"dependency "org.apache-extras.beanshell:bsh:2.0b6"dependency "org.freemarker:freemarker:2.3.30"dependency "org.hsqldb:hsqldb:2.5.1"dependency "org.quartz-scheduler:quartz:2.3.2"dependency "org.codehaus.fabric3.api:commonj:1.1.0"dependency "net.sf.ehcache:ehcache:2.10.6"dependency "org.ehcache:jcache:1.0.1"dependency "org.ehcache:ehcache:3.4.0"dependency "org.hibernate:hibernate-core:5.4.21.Final"dependency "org.hibernate:hibernate-validator:6.1.5.Final"dependency "org.webjars:webjars-locator-core:0.45"dependency "org.webjars:underscorejs:1.8.3"dependencySet(group: 'org.apache.tomcat', version: '9.0.37') {entry 'tomcat-util'entry('tomcat-websocket') {exclude group: "org.apache.tomcat", name: "tomcat-websocket-api"exclude group: "org.apache.tomcat", name: "tomcat-servlet-api"}}dependencySet(group: 'org.apache.tomcat.embed', version: '9.0.37') {entry 'tomcat-embed-core'entry 'tomcat-embed-websocket'}dependencySet(group: 'io.undertow', version: '2.0.31.Final') {entry 'undertow-core'entry('undertow-websockets-jsr') {exclude group: "org.jboss.spec.javax.websocket", name: "jboss-websocket-api_1.1_spec"}entry('undertow-servlet') {exclude group: "org.jboss.spec.javax.servlet", name: "jboss-servlet-api_3.1_spec"exclude group: "org.jboss.spec.javax.annotation", name: "jboss-annotations-api_1.2_spec"}}dependencySet(group: 'com.squareup.okhttp3', version: '3.14.9') {entry 'okhttp'entry 'mockwebserver'}dependency("org.apache.httpcomponents:httpclient:4.5.12") {exclude group: "commons-logging", name: "commons-logging"}dependency("org.apache.httpcomponents:httpasyncclient:4.1.4") {exclude group: "commons-logging", name: "commons-logging"}dependency "org.eclipse.jetty:jetty-reactive-httpclient:1.1.4"dependency "org.jruby:jruby:9.2.11.1"dependency "org.python:jython-standalone:2.7.1"dependency "org.mozilla:rhino:1.7.11"dependency "commons-fileupload:commons-fileupload:1.4"dependency "org.synchronoss.cloud:nio-multipart-parser:1.1.0"dependency("dom4j:dom4j:1.6.1") {exclude group: "xml-apis", name: "xml-apis"}dependency("jaxen:jaxen:1.1.1") {exclude group: "xml-apis", name: "xml-apis"exclude group: "xom", name: "xom"exclude group: "xerces", name: "xercesImpl"}dependency("junit:junit:4.12") {exclude group: "org.hamcrest", name: "hamcrest-core"}dependency("de.bechte.junit:junit-hierarchicalcontextrunner:4.12.1") {exclude group: "junit", name: "junit"}dependency "org.testng:testng:6.14.3"dependency "org.hamcrest:hamcrest:2.1"dependency "org.awaitility:awaitility:3.1.6"dependency "org.assertj:assertj-core:3.17.2"dependencySet(group: 'org.xmlunit', version: '2.6.2') {entry 'xmlunit-assertj'entry('xmlunit-matchers') {exclude group: "org.hamcrest", name: "hamcrest-core"}}dependencySet(group: 'org.mockito', version: '3.3.3') {entry('mockito-core') {exclude group: "org.hamcrest", name: "hamcrest-core"}entry 'mockito-junit-jupiter'}dependency "io.mockk:mockk:1.10.0"dependency("net.sourceforge.htmlunit:htmlunit:2.43.0") {exclude group: "commons-logging", name: "commons-logging"}dependency("org.seleniumhq.selenium:htmlunit-driver:2.43.1") {exclude group: "commons-logging", name: "commons-logging"}dependency("org.seleniumhq.selenium:selenium-java:3.141.59") {exclude group: "commons-logging", name: "commons-logging"exclude group: "io.netty", name: "netty"}dependency "org.skyscreamer:jsonassert:1.5.0"dependency "com.jayway.jsonpath:json-path:2.4.0"dependencySet(group: 'org.apache.tiles', version: '3.0.8') {entry 'tiles-api'entry('tiles-core', withoutJclOverSlf4j)entry('tiles-servlet', withoutJclOverSlf4j)entry('tiles-jsp', withoutJclOverSlf4j)entry('tiles-el', withoutJclOverSlf4j)entry('tiles-extras') {exclude group: "org.springframework", name: "spring-web"exclude group: "org.slf4j", name: "jcl-over-slf4j"}}dependency("org.apache.taglibs:taglibs-standard-jstlel:1.2.5") {exclude group: "org.apache.taglibs", name: "taglibs-standard-spec"}dependency "com.ibm.websphere:uow:6.0.2.17"dependency "com.jamonapi:jamon:2.82"dependency "joda-time:joda-time:2.10.6"dependency "org.eclipse.persistence:org.eclipse.persistence.jpa:2.7.7"dependency "org.javamoney:moneta:1.3"dependency "com.sun.activation:javax.activation:1.2.0"dependency "com.sun.mail:javax.mail:1.6.2"dependencySet(group: 'com.sun.xml.bind', version: '2.3.0.1') {entry 'jaxb-core'entry 'jaxb-impl'entry 'jaxb-xjc'}dependency "javax.activation:javax.activation-api:1.2.0"dependency "javax.annotation:javax.annotation-api:1.3.2"dependency "javax.cache:cache-api:1.1.0"dependency "javax.ejb:javax.ejb-api:3.2"dependency "javax.el:javax.el-api:3.0.1-b04"dependency "javax.enterprise.concurrent:javax.enterprise.concurrent-api:1.0"dependency "javax.faces:javax.faces-api:2.2"dependency "javax.inject:javax.inject:1"dependency "javax.inject:javax.inject-tck:1"dependency "javax.interceptor:javax.interceptor-api:1.2.2"dependency "javax.jms:javax.jms-api:2.0.1"dependency "javax.json:javax.json-api:1.1.4"dependency "javax.json.bind:javax.json.bind-api:1.0"dependency "javax.mail:javax.mail-api:1.6.2"dependency "javax.money:money-api:1.0.3"dependency "javax.resource:javax.resource-api:1.7.1"dependency "javax.servlet:javax.servlet-api:4.0.1"dependency "javax.servlet.jsp:javax.servlet.jsp-api:2.3.2-b02"dependency "javax.servlet.jsp.jstl:javax.servlet.jsp.jstl-api:1.2.1"dependency "javax.transaction:javax.transaction-api:1.3"dependency "javax.validation:validation-api:2.0.1.Final"dependency "javax.websocket:javax.websocket-api:1.1"dependency "javax.xml.bind:jaxb-api:2.3.1"dependency "javax.xml.ws:jaxws-api:2.3.1"dependency "org.eclipse.persistence:javax.persistence:2.2.0"// Substitute for "javax.management:jmxremote_optional:1.0.1_04" which// is not available on Maven Centraldependency "org.glassfish.external:opendmk_jmxremote_optional_jar:1.0-b01-ea"dependency "org.glassfish:javax.el:3.0.1-b08"dependency "org.glassfish.main:javax.jws:4.0-b33"dependency "org.glassfish.tyrus:tyrus-container-servlet:1.13.1"}generatedPomCustomization {enabled = false}resolutionStrategy {cacheChangingModulesFor 0, "seconds"}repositories {mavenCentral()maven { url "https://maven.aliyun.com/repository/public" }maven { url "https://maven.aliyun.com/repository/spring-plugin" }maven { url "https://maven.aliyun.com/nexus/content/groups/public/" }maven { url "https://maven.aliyun.com/nexus/content/repositories/spring-plugin" }maven { url 'http://maven.aliyun.com/nexus/content/repositories/google' }maven { url "https://repo.spring.io/libs-spring-framework-build" }}}configurations.all {resolutionStrategy {cacheChangingModulesFor 0, "seconds"cacheDynamicVersionsFor 0, "seconds"}}
}configure([rootProject] + javaProjects) { project ->group = "org.springframework"apply plugin: "java"apply plugin: "java-test-fixtures"apply plugin: "checkstyle"apply plugin: 'org.springframework.build.compile'apply from: "${rootDir}/gradle/custom-java-home.gradle"apply from: "${rootDir}/gradle/ide.gradle"pluginManager.withPlugin("kotlin") {apply plugin: "org.jetbrains.dokka"compileKotlin {kotlinOptions {jvmTarget = "1.8"freeCompilerArgs = ["-Xjsr305=strict"]allWarningsAsErrors = true}}compileTestKotlin {kotlinOptions {jvmTarget = "1.8"freeCompilerArgs = ["-Xjsr305=strict"]}}}test {useJUnitPlatform()include(["**/*Tests.class", "**/*Test.class"])systemProperty("java.awt.headless", "true")systemProperty("testGroups", project.properties.get("testGroups"))systemProperty("io.netty.leakDetection.level", "paranoid")}checkstyle {toolVersion = "8.36.1"configDir = rootProject.file("src/checkstyle")}dependencies {testCompile("org.junit.jupiter:junit-jupiter-api")testCompile("org.junit.jupiter:junit-jupiter-params")testCompile("org.mockito:mockito-core")testCompile("org.mockito:mockito-junit-jupiter")testCompile("io.mockk:mockk")testCompile("org.assertj:assertj-core")// Pull in the latest JUnit 5 Launcher API to ensure proper support in IDEs.testRuntime("org.junit.platform:junit-platform-launcher")testRuntime("org.junit.jupiter:junit-jupiter-engine")testRuntime("org.apache.logging.log4j:log4j-core")testRuntime("org.apache.logging.log4j:log4j-slf4j-impl")testRuntime("org.apache.logging.log4j:log4j-jul")// JSR-305 only used for non-required meta-annotationscompileOnly("com.google.code.findbugs:jsr305")testCompileOnly("com.google.code.findbugs:jsr305")checkstyle("io.spring.javaformat:spring-javaformat-checkstyle:0.0.15")}ext.javadocLinks = ["https://docs.oracle.com/javase/8/docs/api/","https://docs.oracle.com/javaee/7/api/","https://docs.oracle.com/cd/E13222_01/wls/docs90/javadocs/",  // CommonJ"https://www.ibm.com/support/knowledgecenter/SS7JFU_8.5.5/com.ibm.websphere.javadoc.doc/web/apidocs/","https://glassfish.java.net/nonav/docs/v3/api/","https://docs.jboss.org/jbossas/javadoc/4.0.5/connector/","https://docs.jboss.org/jbossas/javadoc/7.1.2.Final/","https://tiles.apache.org/tiles-request/apidocs/","https://tiles.apache.org/framework/apidocs/","https://www.eclipse.org/aspectj/doc/released/aspectj5rt-api/","https://www.ehcache.org/apidocs/2.10.4/","https://www.quartz-scheduler.org/api/2.3.0/","https://fasterxml.github.io/jackson-core/javadoc/2.10/","https://fasterxml.github.io/jackson-databind/javadoc/2.10/","https://fasterxml.github.io/jackson-dataformat-xml/javadoc/2.10/","https://hc.apache.org/httpcomponents-client-ga/httpclient/apidocs/","https://junit.org/junit4/javadoc/4.12/","https://junit.org/junit5/docs/5.6.2/api/"] as String[]
}configure(moduleProjects) { project ->apply from: "${rootDir}/gradle/spring-module.gradle"
}configure(rootProject) {description = "Spring Framework"apply plugin: "groovy"apply plugin: "kotlin"apply plugin: "io.spring.nohttp"apply plugin: 'org.springframework.build.api-diff'apply from: "${rootDir}/gradle/publications.gradle"apply from: "${rootDir}/gradle/docs.gradle"nohttp {source.exclude "**/test-output/**"allowlistFile = project.file("src/nohttp/allowlist.lines")def rootPath = file(rootDir).toPath()def projectDirs = allprojects.collect { it.projectDir } + "${rootDir}/buildSrc"projectDirs.forEach { dir ->[ 'bin', 'build', 'out', '.settings' ].collect { rootPath.relativize(new File(dir, it).toPath()) }.forEach { source.exclude "$it/**" }[ '.classpath', '.project' ].collect { rootPath.relativize(new File(dir, it).toPath()) }.forEach { source.exclude "$it" }}}publishing {publications {mavenJava(MavenPublication) {artifact docsZipartifact schemaZipartifact distZip}}}
}
