STM32基于HAL工程读取DS1302时间数据

STM32基于HAL工程读取DS1302时间数据

---

• ✨申明：本文章仅发表在CSDN网站，任何其他网站，未注明来源，见此内容均为盗链和爬取，请多多尊重和支持原创!
• 🍁对于文中所提供的相关资源链接将作不定期更换。
• 📌相关篇《STM32基于STM32CubeMX读取/设置DS1307》
• 🎯本工程使用STM32F103VE+DS1302实物验证没有问题。

基于STM32CubeMX配置工程，当然不局限与STM32其他型号的芯片的使用，只要是stm32芯片都可以使用该源文件进行驱动，方便适配移植，减少不必要的重复开发工作。

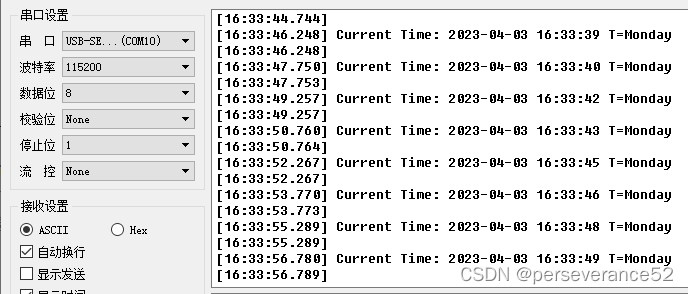

• 📜串口打印信息：


📓STM32CubeMX配置

• 🌿只需配置串口，用于读取DS1302数据输出。


• 当然你也可以在STM32CubeMX先指定DS1302引脚。

• 🔰如果你不想使用系统嘀嗒定时器作为微秒延时函数来时基，可以启用一个定时器。
• 🔖时钟源根据个人具体的STM32型号自己配置。

🛠KEIL工程配置

• 🔧usart.c文件中添加printf重映射，并在Keil设置中勾选MicroLib选项。

#include "stdio.h"
/*可调用printf*/
int fputc(int ch,FILE *f)
{/*&huart1指的是串口1，如果用别的串口就修改数字*/HAL_UART_Transmit(&huart1 , (uint8_t *)&ch , 1 , 1000);return ch;
}

📖设置时间到DS1302中

• 🔨创建一个数组存放当前时间，注意数组下标和时间参数对应关系。

uint8_t	buf[8]={1,23/*年*/,4/*月*/,3/*日*/,17/*时*/,34/*分*/,8/*秒*/,1};
DS1302_WriteTime(buf);

📋DS1302驱动代码

• 🌿DS1302.h文件

/*
如何使用：
1.根据所使用的控制器替换头文件 "stm32f3xx_hal.h"。我使用的是STM32F103VC。
2.重新分配与芯片连接的端口和引脚（DS1302_GPIO、DS1302_SCLK、DS1302_SDA、DS1302_RST）。
3.在主函数中执行 DS1302_Init();。现在就可以使用了。*/#ifndef _DS1302_H
#define _DS1302_H#include "stm32f1xx_hal.h"
#include "dwt_delay.h"//----------------------------------------------------------------------------------
//将下面列出的端口和引脚根据自己的需求进行重新分配
//----------------------------------------------------------------------------------
#define DS1302_CLK_Pin 	GPIO_PIN_7
#define DS1302_IO_Pin		GPIO_PIN_6
#define DS1302_RST_Pin	GPIO_PIN_4#define DS1302_GPIO				GPIOA
#define DS1302_SCLK				DS1302_CLK_Pin
#define DS1302_SDA				DS1302_IO_Pin
#define DS1302_RST				DS1302_RST_Pin
//存放时间
typedef struct _time
{uint8_t second;uint8_t minute;uint8_t hour;uint8_t date;uint8_t month;uint8_t week;uint8_t year;} DS1302_Time_t;/* 初始化 */
/* 配置 STM32 端口，启动微秒定时器，并将时钟从省电模式唤醒 */
void DS1302_Init(void);/* Reads time byte by byte to 'buf' */
void DS1302_ReadTime(DS1302_Time_t* time);/* Writes time byte by byte from 'buf' */
void DS1302_WriteTime(uint8_t *buf); /* Writes 'val' to ram address 'addr' */
/* Ram addresses range from 0 to 30 */
void DS1302_WriteRam(uint8_t addr, uint8_t val);/* Чтение из RAM по адресу 'addr' */
uint8_t DS1302_ReadRam(uint8_t addr);/* Очистка RAM памяти */
void DS1302_ClearRam(void);/* Reads time in burst mode, includes control byte */
void DS1302_ReadTimeBurst(uint8_t * temp);/* Writes time in burst mode, includes control byte */
void DS1302_WriteTimeBurst(uint8_t * buf);/* Reads ram in burst mode 'len' bytes into 'buf' */
void DS1302_ReadRamBurst(uint8_t len, uint8_t * buf);/* Writes ram in burst mode 'len' bytes from 'buf' */
void DS1302_WriteRamBurst(uint8_t len, uint8_t * buf);//Запуск часов.
void DS1302_ClockStart(void);//Остановка часов.
void DS1302_ClockStop(void);//Сброс часов
void DS1302_ClockClear(void);#endif //_DS1302_H

• 🌿DS1302.c文件

#include "DS1302.h"// Регистры DS1302
#define DS1302_SEC				0x80
#define DS1302_MIN				0x82
#define DS1302_HOUR				0x84
#define DS1302_DATE				0x86
#define DS1302_MONTH				0x88
#define DS1302_DAY				0x8A
#define DS1302_YEAR				0x8C
#define DS1302_CONTROL				0x8E
#define DS1302_CHARGER				0x90
#define DS1302_CLKBURST				0xBE
#define DS1302_RAMBURST 			0xFE#define RAMSIZE 				0x31	// Размер RAM в байтах
#define DS1302_RAMSTART				0xC0 	// Первый адрес RAM#define HEX2BCD(v)	((v) % 10 + (v) / 10 * 16)
#define BCD2HEX(v)	((v) % 16 + (v) / 16 * 10)// SDA Write(output) Mode
static void writeSDA(void) {GPIO_InitTypeDef GPIO_InitStructure;GPIO_InitStructure.Pin = DS1302_SDA;GPIO_InitStructure.Mode =  GPIO_MODE_OUTPUT_PP;GPIO_InitStructure.Speed = GPIO_SPEED_FREQ_HIGH;HAL_GPIO_Init(DS1302_GPIO, &GPIO_InitStructure);}// SDA Read(input) Mode
static void readSDA(void) {GPIO_InitTypeDef GPIO_InitStructure;GPIO_InitStructure.Pin = DS1302_SDA;GPIO_InitStructure.Mode =  GPIO_MODE_INPUT;GPIO_InitStructure.Pull = GPIO_PULLDOWN;GPIO_InitStructure.Speed = GPIO_SPEED_FREQ_HIGH;HAL_GPIO_Init(DS1302_GPIO, &GPIO_InitStructure);
}/* Отправка адреса или команды */
static void DS1302_SendCmd(uint8_t cmd) {uint8_t i;for (i = 0; i < 8; i ++) {	//		DS1302_SDA = (bit)(addr & 1);HAL_GPIO_WritePin(DS1302_GPIO, DS1302_SDA, (cmd & 1) ?  GPIO_PIN_SET :  GPIO_PIN_RESET);//		DS1302_SCK = 1;HAL_GPIO_WritePin(DS1302_GPIO, DS1302_SCLK,  GPIO_PIN_SET);delayUS_DWT(1);//		DS1302_SCK = 0;HAL_GPIO_WritePin(DS1302_GPIO, DS1302_SCLK,  GPIO_PIN_RESET);delayUS_DWT(1);cmd >>= 1;}
}/* Прочитать байт по адресу 'addr' */
static void DS1302_WriteByte(uint8_t addr, uint8_t d)
{uint8_t i;//	DS1302_RST = 1;HAL_GPIO_WritePin(DS1302_GPIO, DS1302_RST,  GPIO_PIN_SET);	//addr = addr & 0xFE;DS1302_SendCmd(addr);	// Отправка адресаfor (i = 0; i < 8; i ++) {//		DS1302_SDA = (bit)(d & 1);HAL_GPIO_WritePin(DS1302_GPIO, DS1302_SDA, (d & 1) ?  GPIO_PIN_SET :  GPIO_PIN_RESET);//		DS1302_SCK = 1;HAL_GPIO_WritePin(DS1302_GPIO, DS1302_SCLK,  GPIO_PIN_SET);delayUS_DWT(1);//		DS1302_SCK = 0;HAL_GPIO_WritePin(DS1302_GPIO, DS1302_SCLK,  GPIO_PIN_RESET);delayUS_DWT(1);d >>= 1;}//	DS1302_RST = 0;HAL_GPIO_WritePin(DS1302_GPIO, DS1302_RST,  GPIO_PIN_RESET);//	DS1302_SDA = 0;HAL_GPIO_WritePin(DS1302_GPIO, DS1302_SDA,  GPIO_PIN_RESET);
}/* Sends 'cmd' command and writes in burst mode 'len' bytes from 'temp' */
static void DS1302_WriteBurst(uint8_t cmd, uint8_t len, uint8_t * temp)
{uint8_t i, j;DS1302_WriteByte(DS1302_CONTROL, 0x00);			// Отключить защиту от записи//	DS1302_RST = 1;HAL_GPIO_WritePin(DS1302_GPIO, DS1302_RST,  GPIO_PIN_SET);	DS1302_SendCmd(cmd);	// Sends burst write commandfor(j = 0; j < len; j++) {for (i = 0; i < 8; i ++) {//			DS1302_SDA = (bit)(d & 1);HAL_GPIO_WritePin(DS1302_GPIO, DS1302_SDA, (temp[j] & 1) ?  GPIO_PIN_SET :  GPIO_PIN_RESET);//			DS1302_SCK = 1;HAL_GPIO_WritePin(DS1302_GPIO, DS1302_SCLK,  GPIO_PIN_SET);delayUS_DWT(1);//			DS1302_SCK = 0;HAL_GPIO_WritePin(DS1302_GPIO, DS1302_SCLK,  GPIO_PIN_RESET);delayUS_DWT(1);temp[j] >>= 1;}}//	DS1302_RST = 0;HAL_GPIO_WritePin(DS1302_GPIO, DS1302_RST,  GPIO_PIN_RESET);//	DS1302_SDA = 0;HAL_GPIO_WritePin(DS1302_GPIO, DS1302_SDA,  GPIO_PIN_RESET);DS1302_WriteByte(DS1302_CONTROL, 0x80);			// Включить защиту от записи
}/* Reads a byte from addr */
static uint8_t DS1302_ReadByte(uint8_t addr)
{uint8_t i;uint8_t temp = 0;//	DS1302_RST = 1;HAL_GPIO_WritePin(DS1302_GPIO, DS1302_RST,  GPIO_PIN_SET);	addr = addr | 0x01; 	// Generate Read AddressDS1302_SendCmd(addr);	// Sends addressreadSDA();for (i = 0; i < 8; i ++) {temp >>= 1;//		if(DS1302_SDA)if(HAL_GPIO_ReadPin(DS1302_GPIO, DS1302_SDA))temp |= 0x80;//		DS1302_SCK = 1;HAL_GPIO_WritePin(DS1302_GPIO, DS1302_SCLK,  GPIO_PIN_SET);delayUS_DWT(1);//		DS1302_SCK = 0;HAL_GPIO_WritePin(DS1302_GPIO, DS1302_SCLK,  GPIO_PIN_RESET);delayUS_DWT(1);}writeSDA();//	DS1302_RST = 0;HAL_GPIO_WritePin(DS1302_GPIO, DS1302_RST,  GPIO_PIN_RESET);//	DS1302_SDA = 0;HAL_GPIO_WritePin(DS1302_GPIO, DS1302_SDA,  GPIO_PIN_RESET);return temp;
}/* Sends 'cmd' command and reads in burst mode 'len' bytes into 'temp' */
static void DS1302_ReadBurst(uint8_t cmd, uint8_t len, uint8_t * temp)
{uint8_t i, j;//	DS1302_RST = 1;HAL_GPIO_WritePin(DS1302_GPIO, DS1302_RST,  GPIO_PIN_SET);	cmd = cmd | 0x01; 		// Generate read commandDS1302_SendCmd(cmd);	// Sends burst read commandreadSDA();for (j = 0; j < len; j ++) {temp[j] = 0;for (i = 0; i < 8; i ++) {temp[j] >>= 1;//			if(DS1302_SDA)if(HAL_GPIO_ReadPin(DS1302_GPIO, DS1302_SDA))temp[j] |= 0x80;//			DS1302_SCK = 1;HAL_GPIO_WritePin(DS1302_GPIO, DS1302_SCLK,  GPIO_PIN_SET);delayUS_DWT(1);//			DS1302_SCK = 0;HAL_GPIO_WritePin(DS1302_GPIO, DS1302_SCLK,  GPIO_PIN_RESET);delayUS_DWT(1);}}writeSDA();//	DS1302_RST = 0;HAL_GPIO_WritePin(DS1302_GPIO, DS1302_RST,  GPIO_PIN_RESET);HAL_GPIO_WritePin(DS1302_GPIO, DS1302_SDA,  GPIO_PIN_RESET);
}/* Writes time byte by byte from 'buf' */
void DS1302_WriteTime(uint8_t *buf)
{	DS1302_WriteByte(DS1302_CONTROL, 0x00);			// 解除保护delayUS_DWT(1);DS1302_WriteByte(DS1302_SEC, 0x80);DS1302_WriteByte(DS1302_YEAR, HEX2BCD(buf[1]));DS1302_WriteByte(DS1302_MONTH, HEX2BCD(buf[2]));DS1302_WriteByte(DS1302_DATE, HEX2BCD(buf[3]));DS1302_WriteByte(DS1302_HOUR, HEX2BCD(buf[4]));DS1302_WriteByte(DS1302_MIN, HEX2BCD(buf[5]));DS1302_WriteByte(DS1302_SEC, HEX2BCD(buf[6]));DS1302_WriteByte(DS1302_DAY, HEX2BCD(buf[7]));DS1302_WriteByte(DS1302_CONTROL, 0x80);			// 写保护delayUS_DWT(1);
}/* Reads time byte by byte to 'buf' */
void DS1302_ReadTime(DS1302_Time_t* time)
{ uint8_t tmp;tmp = DS1302_ReadByte(DS1302_YEAR); 	time->year= BCD2HEX(tmp);		 tmp = DS1302_ReadByte(DS1302_MONTH); 	time->month = BCD2HEX(tmp);	 tmp = DS1302_ReadByte(DS1302_DATE); 	time->date = BCD2HEX(tmp);tmp = DS1302_ReadByte(DS1302_HOUR);		time->hour = BCD2HEX(tmp);tmp = DS1302_ReadByte(DS1302_MIN);		time->minute = BCD2HEX(tmp); tmp = DS1302_ReadByte((DS1302_SEC)) & 0x7F;time->second = BCD2HEX(tmp);tmp = DS1302_ReadByte(DS1302_DAY);		time->week = BCD2HEX(tmp);
}/* DS1302初始化 */
void DS1302_Init(void)
{DWT_Delay_Init(); //初始化计时器以进行毫秒级定时。GPIO_InitTypeDef GPIO_InitStructure;GPIO_InitStructure.Pin = DS1302_SCLK | DS1302_SDA | DS1302_RST;GPIO_InitStructure.Mode =  GPIO_MODE_OUTPUT_PP;GPIO_InitStructure.Speed = GPIO_SPEED_FREQ_HIGH;HAL_GPIO_Init(DS1302_GPIO, &GPIO_InitStructure);DS1302_WriteByte(DS1302_CHARGER, 0x00);			// Отключить Trickle Charger//	DS1302_RST = 0;HAL_GPIO_WritePin(DS1302_GPIO, DS1302_RST,  GPIO_PIN_RESET);//	DS1302_SCK = 0;HAL_GPIO_WritePin(DS1302_GPIO, DS1302_SCLK,  GPIO_PIN_RESET);delayUS_DWT(10); // 不小于10微秒的延时。.DS1302_ClockStart();
}/* Writes 'val' to ram address 'addr' */
/* Ram addresses range from 0 to 30 */
void DS1302_WriteRam(uint8_t addr, uint8_t val) {DS1302_WriteByte(DS1302_CONTROL, 0x00);			// 禁用写入保护delayUS_DWT(1);if (addr >= RAMSIZE) {return;}DS1302_WriteByte(DS1302_RAMSTART + (2 * addr), val);	DS1302_WriteByte(DS1302_CONTROL, 0x80);			// 启用写入保护。delayUS_DWT(1);
}/* Reads ram address 'addr' */
uint8_t DS1302_ReadRam(uint8_t addr) {if (addr >= RAMSIZE) {return 0;}return DS1302_ReadByte(DS1302_RAMSTART + (2 * addr));
}/* Clears the entire ram writing 0 */
void DS1302_ClearRam(void) {uint8_t i;for(i=0; i< RAMSIZE; i++){DS1302_WriteRam(i, 0x00);}
}/* Reads time in burst mode, includes control byte */
void DS1302_ReadTimeBurst(uint8_t * buf) {uint8_t temp[8] = {0, 0, 0, 0, 0, 0, 0, 0};DS1302_ReadBurst(DS1302_CLKBURST, 8, temp); buf[1] = BCD2HEX(temp[6]);	// Yearbuf[2] = BCD2HEX(temp[4]);	// Monthbuf[3] = BCD2HEX(temp[3]);	// Datebuf[4] = BCD2HEX(temp[2]);	// Hourbuf[5] = BCD2HEX(temp[1]);	// Minbuf[6] = BCD2HEX(temp[0]);	// Secbuf[7] = BCD2HEX(temp[5]);	// Daybuf[0] = temp[7]; 			// Control
}/* Writes time in burst mode, includes control byte */
void DS1302_WriteTimeBurst(uint8_t * buf) {uint8_t temp[8];temp[0]=HEX2BCD(buf[6]);	// Sectemp[1]=HEX2BCD(buf[5]);	// Mintemp[2]=HEX2BCD(buf[4]);	// Hourtemp[3]=HEX2BCD(buf[3]);	// Datetemp[4]=HEX2BCD(buf[2]);	// Monthtemp[5]=HEX2BCD(buf[7]);	// Daytemp[6]=HEX2BCD(buf[1]);	// Yeartemp[7]=buf[0];				// ControlDS1302_WriteBurst(DS1302_CLKBURST, 8, temp);
}/* Reads ram in burst mode 'len' bytes into 'buf' */
void DS1302_ReadRamBurst(uint8_t len, uint8_t * buf) {uint8_t i;if(len <= 0) {return;}if (len > RAMSIZE) {len = RAMSIZE;}for(i = 0; i < len; i++) {buf[i] = 0;}DS1302_ReadBurst(DS1302_RAMBURST, len, buf);
}/* Writes ram in burst mode 'len' bytes from 'buf' */
void DS1302_WriteRamBurst(uint8_t len, uint8_t * buf) {if(len <= 0) {return;}if (len > RAMSIZE) {len = RAMSIZE;}DS1302_WriteBurst(DS1302_RAMBURST, len, buf);
}//启动时钟。
//DS1302 最初处于 Halt 模式（已停止，省电模式）。
//为了开始计时，需要执行此函数一次。
void DS1302_ClockStart(void)
{uint8_t buf = 0x00;DS1302_WriteByte(DS1302_CONTROL, 0x00);			// 禁用写入保护。delayUS_DWT(1);buf = DS1302_ReadByte(DS1302_SEC) & 0x7F;		// 写入 8 位中的零的同时，保留当前秒数的值DS1302_WriteByte(DS1302_SEC, buf);DS1302_WriteByte(DS1302_CONTROL, 0x80);			// 启用写入保护。delayUS_DWT(1);
}//停止时钟。
//为了进入 Halt 模式（省电模式），此功能可能并不实用
void DS1302_ClockStop(void)
{uint8_t buf = 0x00;DS1302_WriteByte(DS1302_CONTROL, 0x00);			// 禁用写入保护delayUS_DWT(1);buf = DS1302_ReadByte(DS1302_SEC) | 0x80;		// 写入 8 位中的1的同时，保留当前秒数的值DS1302_WriteByte(DS1302_SEC, buf);DS1302_WriteByte(DS1302_CONTROL, 0x80);			// 启用写入保护delayUS_DWT(1);
}//重置时钟
//将0写入所有时钟寄存器（从0x80到0x8C）并将 DS1302 传输到 Halt 模式（省电模式）。
//要启动时钟，请使用 DS1302_ClockStart() 函数。
void DS1302_ClockClear(void)
{DS1302_WriteByte(DS1302_CONTROL, 0x00);			// 禁用写入保护delayUS_DWT(1);DS1302_WriteByte(DS1302_SEC, 0x80);				//重置秒并进入 Halt 模式。DS1302_WriteByte(DS1302_MIN, 0x00);DS1302_WriteByte(DS1302_HOUR, 0x00);DS1302_WriteByte(DS1302_DATE, 0x00);DS1302_WriteByte(DS1302_MONTH, 0x00);DS1302_WriteByte(DS1302_DAY, 0x00);DS1302_WriteByte(DS1302_YEAR, 0x00);DS1302_WriteByte(DS1302_CONTROL, 0x80);			// 启用写入保护。delayUS_DWT(1);
}

• 🌿dwt_delay.c文件

uint32_t DWT_Delay_Init(void) {/* Disable TRC */CoreDebug->DEMCR &= ~CoreDebug_DEMCR_TRCENA_Msk; // ~0x01000000;/* Enable TRC */CoreDebug->DEMCR |=  CoreDebug_DEMCR_TRCENA_Msk; // 0x01000000;/* Disable clock cycle counter */DWT->CTRL &= ~DWT_CTRL_CYCCNTENA_Msk; //~0x00000001;/* Enable  clock cycle counter */DWT->CTRL |=  DWT_CTRL_CYCCNTENA_Msk; //0x00000001;/* Reset the clock cycle counter value */DWT->CYCCNT = 0;/* 3 NO OPERATION instructions */__ASM volatile ("NOP");__ASM volatile ("NOP");__ASM volatile ("NOP");/* Check if clock cycle counter has started */if(DWT->CYCCNT){return 0; /*clock cycle counter started*/}else{return 1; /*clock cycle counter not started*/}
}

• 🌿dwt_delay.h文件

#ifndef DWT_DELAY_H
#define DWT_DELAY_H#ifdef __cplusplus
extern "C" {
#endif#include "stm32f1xx_hal.h"/*** @brief  Initializes DWT_Cycle_Count for DWT_Delay_us function* @return Error DWT counter*         1: DWT counter Error*         0: DWT counter works*/
uint32_t DWT_Delay_Init(void);/*** @brief  This function provides a delay (in microseconds)* @param  microseconds: delay in microseconds*/
__STATIC_INLINE void delayUS_DWT(volatile uint32_t microseconds)
{uint32_t clk_cycle_start = DWT->CYCCNT;/* Go to number of cycles for system */microseconds *= (HAL_RCC_GetHCLKFreq() / 1000000);/* Delay till end */while ((DWT->CYCCNT - clk_cycle_start) < microseconds);
}#ifdef __cplusplus
}
#endif#endif //DWT_DELAY_H

📝main主程序代码

/* USER CODE BEGIN Header */
/********************************************************************************* @file           : main.c* @brief          : Main program body******************************************************************************* @attention** Copyright (c) 2023 STMicroelectronics.* All rights reserved.** This software is licensed under terms that can be found in the LICENSE file* in the root directory of this software component.* If no LICENSE file comes with this software, it is provided AS-IS.********************************************************************************/
/* USER CODE END Header */
/* Includes ------------------------------------------------------------------*/
#include "main.h"
#include "tim.h"
#include "usart.h"
#include "gpio.h"/* Private includes ----------------------------------------------------------*/
/* USER CODE BEGIN Includes */
#include "stdio.h"
#include "DS1302.h"
/* USER CODE END Includes *//* Private typedef -----------------------------------------------------------*/
/* USER CODE BEGIN PTD *//* USER CODE END PTD *//* Private define ------------------------------------------------------------*/
/* USER CODE BEGIN PD */
/* USER CODE END PD *//* Private macro -------------------------------------------------------------*/
/* USER CODE BEGIN PM *//* USER CODE END PM *//* Private variables ---------------------------------------------------------*//* USER CODE BEGIN PV *//* USER CODE END PV *//* Private function prototypes -----------------------------------------------*/
void SystemClock_Config(void);
/* USER CODE BEGIN PFP *//* USER CODE END PFP *//* Private user code ---------------------------------------------------------*/
/* USER CODE BEGIN 0 *//* USER CODE END 0 *//*** @brief  The application entry point.* @retval int*/
int main(void)
{/* USER CODE BEGIN 1 */DS1302_Time_t time = {0};
//	uint8_t	buf[8]={23,4,3,14,34,8,1};const char *WEEK[7] = { "Sunday", "Monday", "Tuesday", "Wednesday", "Thursday", "Friday", "Saturday" };/* USER CODE END 1 *//* MCU Configuration--------------------------------------------------------*//* Reset of all peripherals, Initializes the Flash interface and the Systick. */HAL_Init();/* USER CODE BEGIN Init *//* USER CODE END Init *//* Configure the system clock */SystemClock_Config();/* USER CODE BEGIN SysInit *//* USER CODE END SysInit *//* Initialize all configured peripherals */MX_GPIO_Init();MX_USART1_UART_Init();MX_TIM6_Init();/* USER CODE BEGIN 2 */printf("Hello World \r\n");DWT_Delay_Init();DS1302_Init();
//		DS1302_WriteTime(buf);uint32_t TimerUART = HAL_GetTick();/* USER CODE END 2 *//* Infinite loop *//* USER CODE BEGIN WHILE */while (1){/* USER CODE END WHILE *//* USER CODE BEGIN 3 */if ((HAL_GetTick() - TimerUART) > 1500){/* 定义时间结构体 *//* 获取并打印当前时间 */DS1302_ReadTime(&time);printf("Current Time: 20%02d-%02d-%02d %02d:%02d:%02d T=%s \r\n", time.year, time.month, time.date, time.hour, time.minute, time.second, WEEK[time.week]);TimerUART = HAL_GetTick();HAL_GPIO_TogglePin(GPIOE, LED_Pin);}}/* USER CODE END 3 */
}/*** @brief System Clock Configuration* @retval None*/
void SystemClock_Config(void)
{RCC_OscInitTypeDef RCC_OscInitStruct = {0};RCC_ClkInitTypeDef RCC_ClkInitStruct = {0};/** Initializes the RCC Oscillators according to the specified parameters* in the RCC_OscInitTypeDef structure.*/RCC_OscInitStruct.OscillatorType = RCC_OSCILLATORTYPE_HSE;RCC_OscInitStruct.HSEState = RCC_HSE_ON;RCC_OscInitStruct.HSEPredivValue = RCC_HSE_PREDIV_DIV1;RCC_OscInitStruct.HSIState = RCC_HSI_ON;RCC_OscInitStruct.PLL.PLLState = RCC_PLL_ON;RCC_OscInitStruct.PLL.PLLSource = RCC_PLLSOURCE_HSE;RCC_OscInitStruct.PLL.PLLMUL = RCC_PLL_MUL9;if (HAL_RCC_OscConfig(&RCC_OscInitStruct) != HAL_OK){Error_Handler();}/** Initializes the CPU, AHB and APB buses clocks*/RCC_ClkInitStruct.ClockType = RCC_CLOCKTYPE_HCLK | RCC_CLOCKTYPE_SYSCLK| RCC_CLOCKTYPE_PCLK1 | RCC_CLOCKTYPE_PCLK2;RCC_ClkInitStruct.SYSCLKSource = RCC_SYSCLKSOURCE_PLLCLK;RCC_ClkInitStruct.AHBCLKDivider = RCC_SYSCLK_DIV1;RCC_ClkInitStruct.APB1CLKDivider = RCC_HCLK_DIV2;RCC_ClkInitStruct.APB2CLKDivider = RCC_HCLK_DIV1;if (HAL_RCC_ClockConfig(&RCC_ClkInitStruct, FLASH_LATENCY_2) != HAL_OK){Error_Handler();}
}/* USER CODE BEGIN 4 *//* USER CODE END 4 *//*** @brief  This function is executed in case of error occurrence.* @retval None*/
void Error_Handler(void)
{/* USER CODE BEGIN Error_Handler_Debug *//* User can add his own implementation to report the HAL error return state */__disable_irq();while (1){}/* USER CODE END Error_Handler_Debug */
}#ifdef  USE_FULL_ASSERT
/*** @brief  Reports the name of the source file and the source line number*         where the assert_param error has occurred.* @param  file: pointer to the source file name* @param  line: assert_param error line source number* @retval None*/
void assert_failed(uint8_t *file, uint32_t line)
{/* USER CODE BEGIN 6 *//* User can add his own implementation to report the file name and line number,ex: printf("Wrong parameters value: file %s on line %d\r\n", file, line) *//* USER CODE END 6 */
}
#endif /* USE_FULL_ASSERT */

📚工程源码
