HDFD 回收站【Trash】机制

一、回收站 Trash 机制开启

        HDFS本身是一个文件系统，默认情况下HDFS不开启回收站，数据删除后将被永久删除

        添加并修改两个属性值可开启Trash功能 - (core-site.xml)

<property>  <name>fs.trash.interval</name>  <value>1440</value>
</property>
注：Trash分钟数，当超过分钟数后检查点会被删除，默认值为0，为0时Trash功能将被禁用<property>  <name>fs.trash.checkpoint.interval</name>  <value>0</value>
</property>
注：检查点的创建时间间隔（单位为分钟数），其值应该小于或等于 fs.trash.internal。默认为0，为0时，该值设置为 fs.trash.internal的值以上两参数的作用：当NameNode启动后，会启动一个守护线程，每隔【fs.trash.checkpoint.interval】的时间会在【.Trash】目录下创建当前时间的检查点，把最近删除的数据放在此检查点内，并在【fs.trash.interval】的周期去将过期的检查点删除注：检查点 【Trash checkpoint】 : 1.检查点仅仅是用户回收站下的一个目录，用于存储在创建检查点之前删除的所有文件或目录。和 Current 同级目录/user/deploy/.Trash/{timestamp_of_checkpoint_creation}2.删除的文件被移动到回收站Current目录，并且在可配置的时间间隔内，HDFS会为在Current回收站目录下的文件创建检查点/user/${username}/.Trash/<创建日期>，并在过期时删除旧的检查点。

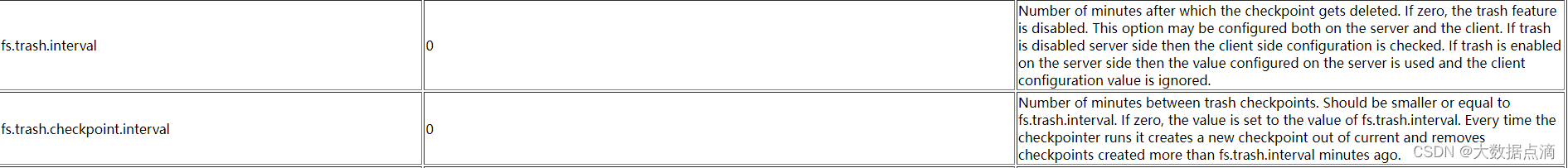

图为：官网参数描述

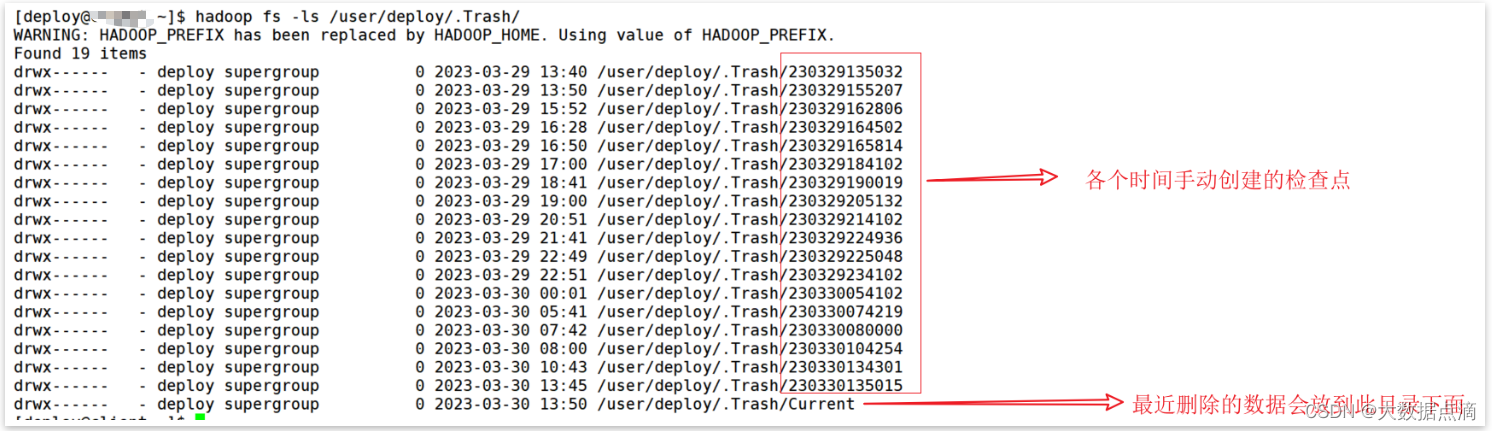

 图为 .Trash 下的目录

二、回收站 Trash 功能机制使用

        当用户开始回收站后，从HDFS删除的文件或目录不会立即被清除，会被移动到回收站Current目录中：/user/deploy/.Trash/Current，当然还可以使用命令，跳过回收站进行删除，将数据直接永久删除

-- 1.删除 HDFS 数据hadoop fs -rm -r -f /user/hive/external/dwd/dwd_test-- 2.恢复误删除的文件hadoop fs -mv /user/deploy/.Trash/Current/user/hive/external/dwd/dwd_test  /user/hive/external/dwd/dwd_test-- 3.强制删除数据不进入回收站hadoop fs -rm -r -f -skipTrash /user/hive/external/dwd/dwd_test-- 4.手动删除回收站文件hadoop fs -rm -r -f /user/deploy/.Trash/Cureent/user/hive/external/dwd/dwd/dwd_test-- 5，清空 HDFS 的回收站hadoop fs -expunge  (hdfs dfs -expunge 命令只会创建新的checkpoint，不会删除过期的checkpoint)1.Hadoop 官方文档命名的说明-检查点 Checkpoints 的创建与删除expungeUsage: hadoop fs -expunge [-immediate] [-fs <path>]Permanently delete files in checkpoints older than the retention threshold from trash directory, and create new checkpoint. -- 永久删除超过阈值的检查点中文件，并创建新的检查点When checkpoint is created, recently deleted files in trash are moved under the checkpoint. Files in checkpoints older than fs.trash.interval will be permanently deleted on the next invocation of -expunge command.-- 当检查点被创建了，最近删除的数据会被移动到检查点中，在下次执行 expunge 时过期的checkpoint会被永久删除If the file system supports the feature, users can configure to create and delete checkpoints periodically by the parameter stored as fs.trash.checkpoint.interval (in core-site.xml). This value should be smaller or equal to fs.trash.interval.-- 如果文件系统支持该特性，用户可以配置通过存储在fs.trash.checkpoint.interval(在core-site.xml中)中的参数定期创建和删除检查点。这个值应该小于或等于fs.trash.interval。If the -immediate option is passed, all files in the trash for the current user are immediately deleted, ignoring the fs.trash.interval setting.If the -fs option is passed, the supplied filesystem will be expunged, rather than the default filesystem and checkpoint is created.For examplehadoop fs -expunge --immediate -fs s3a://landsat-pds/2.操作如下，执行命令会先进行删除已达到过期时间的 checkpoint ,然后会创建新的checkpoint,将最近删除的数据放入

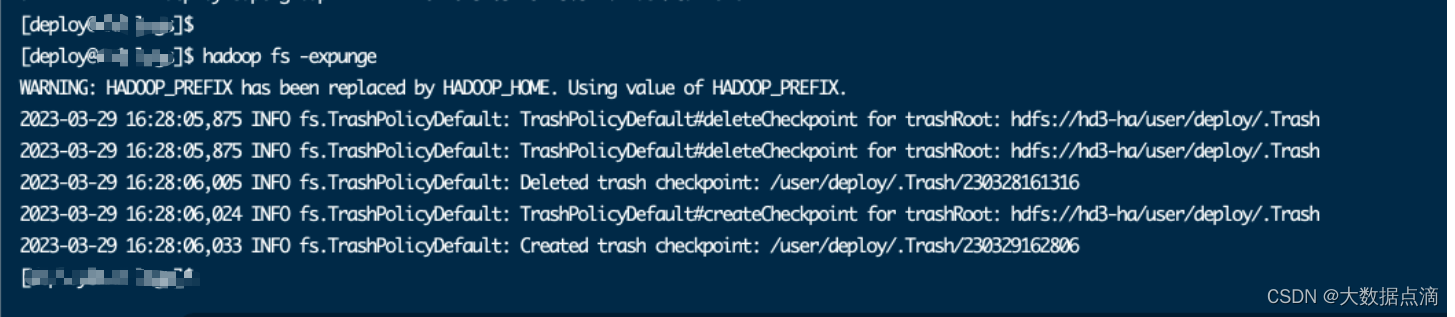

图为 手动执行hadoop fs -extunge时先delete检查点，后create检查点的

三、回收站 Trash工作原理-源码

1.1 初始化

        NameNode启动时会在后台启动一个emptier守护线程，用于定时（NameNode重启周期清零）清理HDFS集群上每个用户下的回收站数据，定时周期为 fs.trash.checkpoint.interval。

        源码路径：org.apache.hadoop.hdfs.server.namenode

  private void startTrashEmptier(final Configuration conf) throws IOException {long trashInterval =conf.getLong(FS_TRASH_INTERVAL_KEY, FS_TRASH_INTERVAL_DEFAULT);if (trashInterval == 0) {return;} else if (trashInterval < 0) {throw new IOException("Cannot start trash emptier with negative interval."+ " Set " + FS_TRASH_INTERVAL_KEY + " to a positive value.");}// This may be called from the transitionToActive code path, in which// case the current user is the administrator, not the NN. The trash// emptier needs to run as the NN. See HDFS-3972.FileSystem fs = SecurityUtil.doAsLoginUser(new PrivilegedExceptionAction<FileSystem>() {@Overridepublic FileSystem run() throws IOException {return FileSystem.get(conf);}});this.emptier = new Thread(new Trash(fs, conf).getEmptier(), "Trash Emptier");this.emptier.setDaemon(true);this.emptier.start();}

        调用Trash类初始化配置信息和垃圾回收策略。

        源码路径：org.apache.hadoop.fs.Trash

  public Trash(FileSystem fs, Configuration conf) throws IOException {super(conf);trashPolicy = TrashPolicy.getInstance(conf, fs, fs.getHomeDirectory());}

        HDFS为每个执行用户创建一个专属主目录/user/$USER/，被删除的数据会移动到执行用户的主目录下。

        源码路径：org.apache.hadoop.fs.FileSystem

/** Return the current user's home directory in this filesystem.* The default implementation returns "/user/$USER/".*/public Path getHomeDirectory() {return this.makeQualified(new Path("/user/"+System.getProperty("user.name")));}

        通过反射创建TrashPolicy对象，垃圾回收策略可以用户自定义实现，通过参数fs.trash.classname指定。系统默认使用TrashPolicyDefault.class。

        源码路径：org.apache.hadoop.fs.TrashPolicy

  public static TrashPolicy getInstance(Configuration conf, FileSystem fs, Path home) {Class<? extends TrashPolicy> trashClass = conf.getClass("fs.trash.classname", TrashPolicyDefault.class, TrashPolicy.class);TrashPolicy trash = ReflectionUtils.newInstance(trashClass, conf);trash.initialize(conf, fs, home); // initialize TrashPolicyreturn trash;}

2.2 启动定时线程

        NameNode通过this.emptier.start()方法启动线程，emptier线程周期性休眠后唤醒，执行删除垃圾数据trashPolicy.deleteCheckpoint()和创建检查点trashPolicy.createCheckpoint()操作。

        源码路径：org.apache.hadoop.fs.TrashPolicy

    @Overridepublic void run() {if (emptierInterval == 0)return;                                   // trash disabledlong now = Time.now();long end;while (true) {end = ceiling(now, emptierInterval);try {                                     // sleep for intervalThread.sleep(end - now);} catch (InterruptedException e) {break;                                  // exit on interrupt}try {now = Time.now();if (now >= end) {FileStatus[] homes = null;try {homes = fs.listStatus(homesParent);         // list all home dirs} catch (IOException e) {LOG.warn("Trash can't list homes: "+e+" Sleeping.");continue;}for (FileStatus home : homes) {         // dump each trashif (!home.isDirectory())continue;try {TrashPolicyDefault trash = new TrashPolicyDefault(fs, home.getPath(), conf);trash.deleteCheckpoint();       //删除垃圾数据trash.createCheckpoint();      //创建检查点} catch (IOException e) {LOG.warn("Trash caught: "+e+". Skipping "+home.getPath()+".");} }}} catch (Exception e) {LOG.warn("RuntimeException during Trash.Emptier.run(): ", e); }}try {fs.close();} catch(IOException e) {LOG.warn("Trash cannot close FileSystem: ", e);}}

2.3 删除垃圾数据

        检查/user/${user.name}/.Trash/（所有用户）下的第一级子目录，将目录名为格式yyMMddHHmmss的目录转化为时间 time（跳过Current和无法解析的目录），如果符合条件（now - deletionInterval > time），则删除该目录 （deletionInterval = ${fs.trash.interval}）。回收站的默认清理机制粒度比较粗，只针对/user/${user.name}/.Trash/下的第一级子目录.

  public void deleteCheckpoint() throws IOException {FileStatus[] dirs = null;try {dirs = fs.listStatus(trash);            // scan trash sub-directories} catch (FileNotFoundException fnfe) {return;}long now = Time.now();for (int i = 0; i < dirs.length; i++) {Path path = dirs[i].getPath();String dir = path.toUri().getPath();String name = path.getName();if (name.equals(CURRENT.getName()))         // skip currentcontinue;long time;try {time = getTimeFromCheckpoint(name);    //将目录名转换为时间} catch (ParseException e) {LOG.warn("Unexpected item in trash: "+dir+". Ignoring.");continue;}if ((now - deletionInterval) > time) {if (fs.delete(path, true)) {             //删除目录LOG.info("Deleted trash checkpoint: "+dir);} else {LOG.warn("Couldn't delete checkpoint: "+dir+" Ignoring.");}}}}

2.4 创建检查点

        如果/user/${user.name}/.Trash/目录下存在Current目录，则将该目录重命名为yyMMddHHmmss（执行到该条代码的当前时间）。如果不存在Current目录，则直接跳过。重命名后，新的删除数据写入时仍会创建Current目录。

  public void createCheckpoint() throws IOException {if (!fs.exists(current))                     // no trash, no checkpointreturn;Path checkpointBase;synchronized (CHECKPOINT) {checkpointBase = new Path(trash, CHECKPOINT.format(new Date()));}Path checkpoint = checkpointBase;int attempt = 0;while (true) {try {fs.rename(current, checkpoint, Rename.NONE);    //重命名目录break;} catch (FileAlreadyExistsException e) {if (++attempt > 1000) {throw new IOException("Failed to checkpoint trash: "+checkpoint);}checkpoint = checkpointBase.suffix("-" + attempt);}}LOG.info("Created trash checkpoint: "+checkpoint.toUri().getPath());}

四、特殊案例

        集群配置垃圾回收参数如下：

fs.trash.interval = 4320 //3天 fs.trash.checkpoint.interval = 0 //未自定义设置，
fs.trash.checkpoint.interval=${fs.trash.interval}

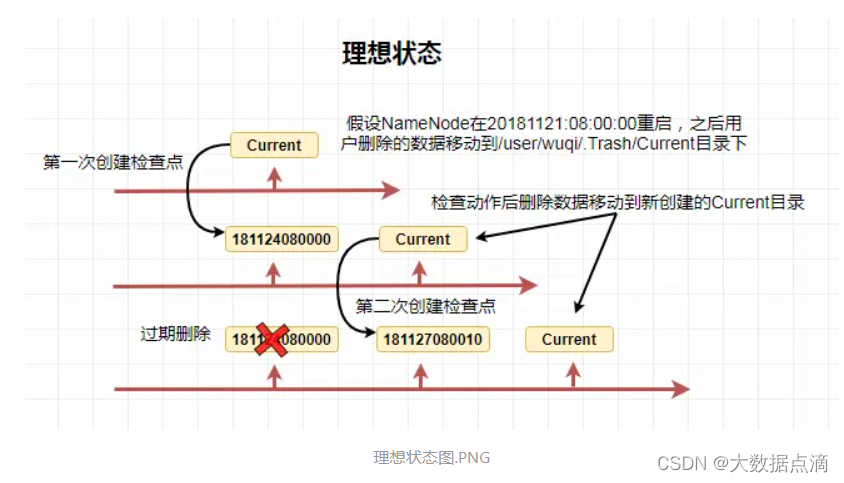

2018:11:27 08:00:00开始唤醒emptier线程，先执行deleteCheckpoint()方法，理想情况下应该是符合条件（(now - deletionInterval) > time）。
now：大于181127080000，小于181127080010的某个时间点
deletionInterval：4320 minutes
time：181124080000 => 符合条件，开始删除181124080000目录

        而在现实操作中，往往会发生如下极端情况：

now：大于181127080000，小于181127080010的某个时间点
deletionInterval：4320 minutes
time：181124080033 => 不符合条件，跳过执行createCheckpoint()方法
fs.trash.checkpoint.interval默认不设置的情况下，会出现本来设置回收站数据保存3天，而实际上会保留接近9天的情况。

五、expunge命令

        用户可以通过手动执行hadoop shell命令清理过期检查点和创建新的检查点，功能同emptier线程的单次执行。

hdfs dfs -expunge
hadoop fs -expunge

        源码路径：org.apache.hadoop.fs.shell

    protected void processArguments(LinkedList<PathData> args)throws IOException {Trash trash = new Trash(getConf());trash.expunge();trash.checkpoint();    }

        源码路径：org.apache.hadoop.fs.Trash

 /** Delete old checkpoint(s). */public void expunge() throws IOException {trashPolicy.deleteCheckpoint();}
