《Spring系列》第13章 Aop切面(二) 代理创建

前言

本篇文章主要介绍AOP的源码，要想看懂AOP，那么就看AOP给容器中注入了什么组件，这个组件什么时候工作，这个组件的功能是什么？

1. @EnableAspectJAutoProxy会向IOC容器中注入一个后置处理器，它会在Bean的创建过程进行加工
2. 当我们获取Bean的时候，因为已经存在Aop注入的后置处理器，会在Bean的创建阶段生成代理对象
3. 最终生成的Bean代理对象，里面会是一个层层代理的链式结构，因为Aop里面的增强方法是存在顺序的，所以这里也是按照顺序执行
4. 当调用目标方法的时候，就会按照顺序依次执行增强方法和目标方法

一、@EnableAspectJAutoProxy

1.注解引入了哪个类

当使用AOP的时候，会通过注解@EnableAspectJAutoProxy来开启AOP，那么这个注解做了些什么呢？看一下其源码，发现通过@Import注解引用了AspectJAutoProxyRegistrar.class，其最终目的就是注入了这个类

@Target(ElementType.TYPE)
@Retention(RetentionPolicy.RUNTIME)
@Documented
@Import(AspectJAutoProxyRegistrar.class) // 在这里引入了一个类
public @interface EnableAspectJAutoProxy {boolean proxyTargetClass() default false;boolean exposeProxy() default false;
}

AspectJAutoProxyRegistrar 是上面注解导入的一个类，它实现了ImportBeanDefinitionRegistrar接口，该接口同样也是Spring提供的扩展点，它可以把自定义的BeanDefinition注册到Spring容器中。

那么该类中主要做了2件事

1. 通过AopConfigUtils注册了一个BeanDefinition，具体为AnnotationAwareAspectJAutoProxyCreator
2. 根据@EnableAspectJAutoProxy设置的属性，进行相应的操作

// 导入的这个类实现了 ImportBeanDefinitionRegistrar 接口
// 该接口可以将自定义的组件添加到容器中
class AspectJAutoProxyRegistrar implements ImportBeanDefinitionRegistrar {@Overridepublic void registerBeanDefinitions(AnnotationMetadata importingClassMetadata, BeanDefinitionRegistry registry) {// 通过Aop工具类 `注册切面注解自动代理创建器当其需要的时候`  这也是方法名的意思AopConfigUtils.registerAspectJAnnotationAutoProxyCreatorIfNecessary(registry);// 获取@EnableAspectJAutoProxy注解的属性  在其注解里面可以设置2个属性AnnotationAttributes enableAspectJAutoProxy =AnnotationConfigUtils.attributesFor(importingClassMetadata, EnableAspectJAutoProxy.class);// 通过这2个属性 在进行响应的处理if (enableAspectJAutoProxy != null) {if (enableAspectJAutoProxy.getBoolean("proxyTargetClass")) {AopConfigUtils.forceAutoProxyCreatorToUseClassProxying(registry);}if (enableAspectJAutoProxy.getBoolean("exposeProxy")) {AopConfigUtils.forceAutoProxyCreatorToExposeProxy(registry);}}}
}

上面的方法中看到会借助AopConfigUtils类来注册BeanDefinition，进入对应的方法里面可以看到注册的类为AnnotationAwareAspectJAutoProxyCreator

	// 第1步：首先会调用到这里@Nullablepublic static BeanDefinition registerAspectJAnnotationAutoProxyCreatorIfNecessary(BeanDefinitionRegistry registry) {return registerAspectJAnnotationAutoProxyCreatorIfNecessary(registry, (Object)null);}// 第2步：再次会进入到这里@Nullablepublic static BeanDefinition registerAspectJAnnotationAutoProxyCreatorIfNecessary(BeanDefinitionRegistry registry, @Nullable Object source) {// 在这里看到注入的Bean为 AnnotationAwareAspectJAutoProxyCreator.classreturn registerOrEscalateApcAsRequired(AnnotationAwareAspectJAutoProxyCreator.class, registry, source);}// 第3步@Nullableprivate static BeanDefinition registerOrEscalateApcAsRequired(Class<?> cls, BeanDefinitionRegistry registry, @Nullable Object source) {Assert.notNull(registry, "BeanDefinitionRegistry must not be null");// 判断是否包含这个名称为 internalAutoProxyCreator的Beanif (registry.containsBeanDefinition("org.springframework.aop.config.internalAutoProxyCreator")) {// 获取到BeanBeanDefinition apcDefinition = registry.getBeanDefinition("org.springframework.aop.config.internalAutoProxyCreator");// 如果全限定类名是否相同 也就是上面的名字相同,那么需要在判断类型if (!cls.getName().equals(apcDefinition.getBeanClassName())) {// 当不相同的时候int currentPriority = findPriorityForClass(apcDefinition.getBeanClassName());int requiredPriority = findPriorityForClass(cls);// 判断优先级if (currentPriority < requiredPriority) {apcDefinition.setBeanClassName(cls.getName());}}return null;} else {// 不存在则创建BeanRootBeanDefinition beanDefinition = new RootBeanDefinition(cls);beanDefinition.setSource(source);beanDefinition.getPropertyValues().add("order", -2147483648);beanDefinition.setRole(2);registry.registerBeanDefinition("org.springframework.aop.config.internalAutoProxyCreator", beanDefinition);return beanDefinition;}}

2.引入类介绍

通过上面的内容得知，@EnableAspectJAutoProxy注解最终会向Bean的定义信息里面注册一个AnnotationAwareAspectJAutoProxyCreator类，其对应的beanName为org.springframework.aop.config.internalAutoProxyCreator，

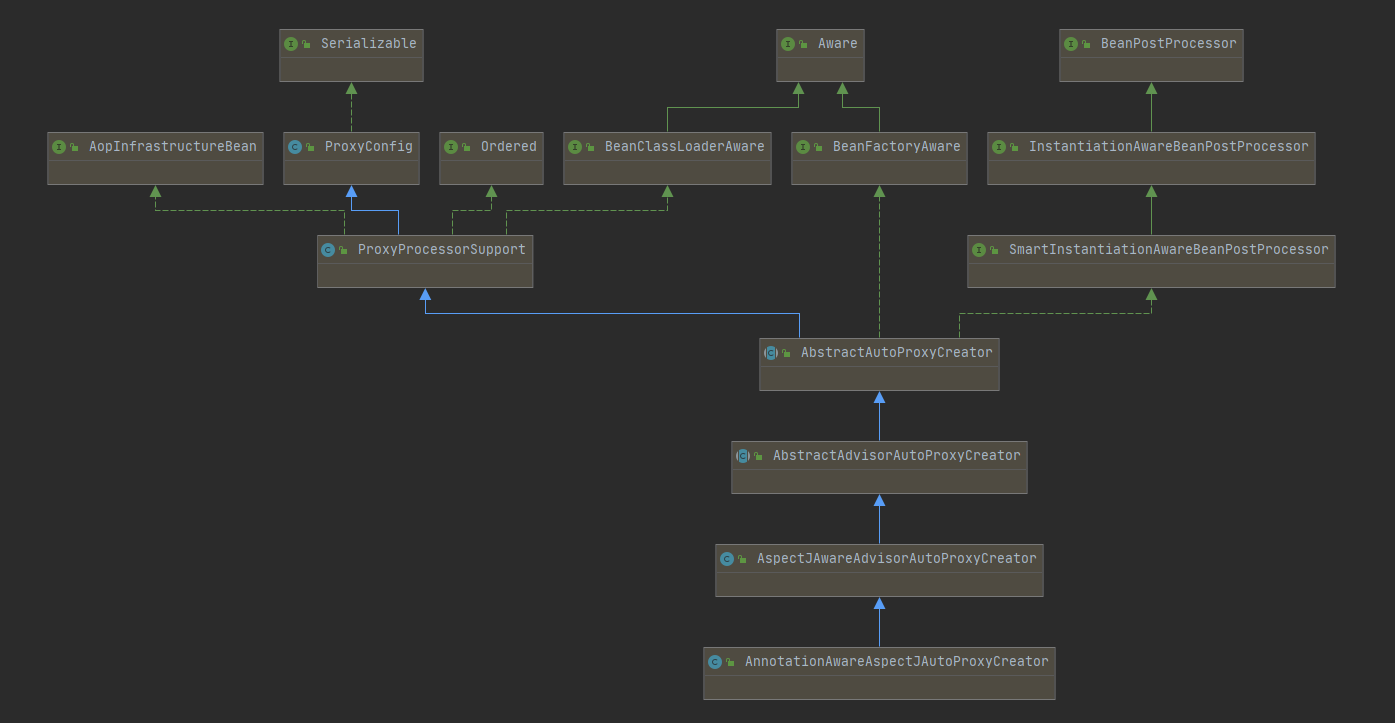

通过下面的类图可以看出，AnnotationAwareAspectJAutoProxyCreator实现了BeanPostProcessor，证明它是一个后置处理器，不仅需要把它注入到IOC容器中，还需要把它注入到BeanFactory后置处理器集合中

> 注入到后置处理器集合中

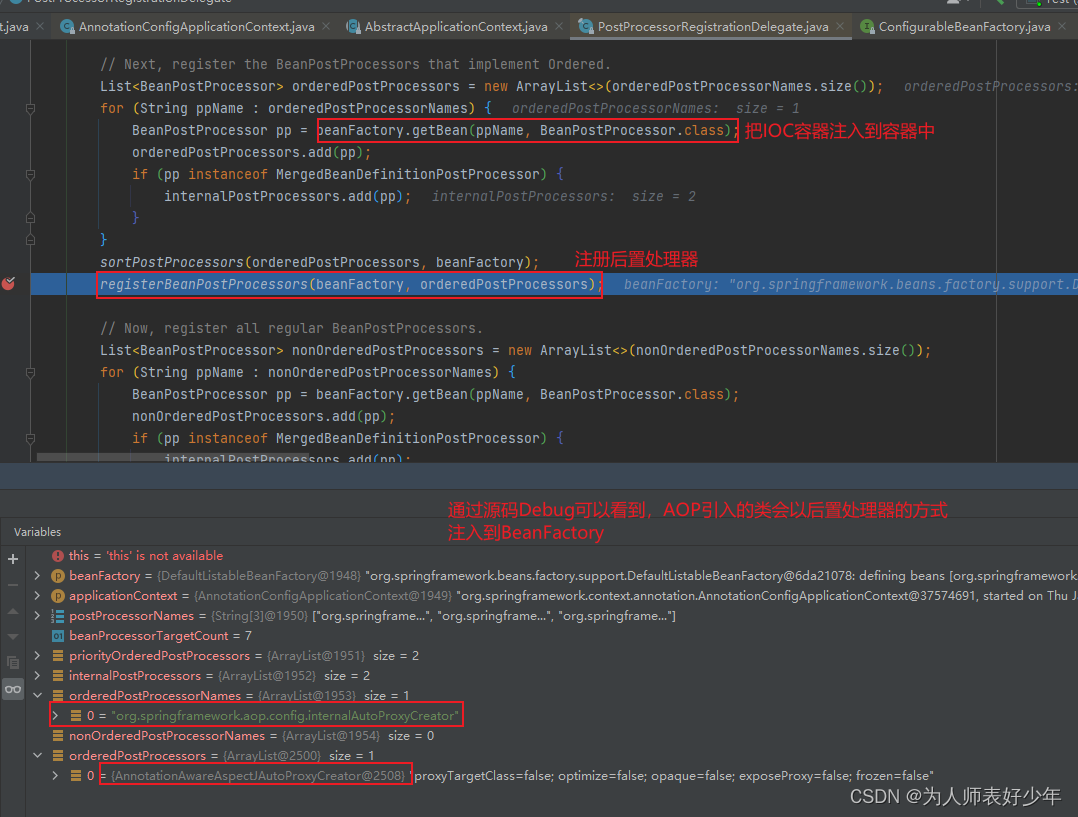

实现逻辑的方法为refresh() -> registerBeanPostProcessors() ，它负责了2件事情：

1. 把后置处理器存入IOC容器中，所有的bean都要注入到容器中，这是必须的
2. 把后置处理器按照优先级规则存入beanFactory中

// PostProcessorRegistrationDelegate// 下面的代码看着很长，其实仔细看很简单，主要就是注册后置处理器，但是需要按照优先级分成三组，顺序注册
// 大体的执行流程未:
//	1) 先获取IOC容器已经定义了的需要创建对象的所有BeanPostProcessor
//	2) 给容器中加别的BeanPostProcess
//  3) 优先注册实现了 PriorityOrdered接口的BeanPostProcessor
//  4) 再给容器中注册实现了Ordered接口的BeanPostProcessor
//  5) 注册没实现优先级接口的BeanPostProcessor
//  6) 注册BeanPostProcessor 实际上就是通过getBean()创建BeanPostProcessor对象，保存在容器中
//	7) 把BeanPostProcessor注册到BeanFactory中public static void registerBeanPostProcessors(ConfigurableListableBeanFactory beanFactory, AbstractApplicationContext applicationContext) {// 获取到工厂里面的所有BeanPostProcessorString[] postProcessorNames = beanFactory.getBeanNamesForType(BeanPostProcessor.class, true, false);// Register BeanPostProcessorChecker that logs an info message when// a bean is created during BeanPostProcessor instantiation, i.e. when// a bean is not eligible for getting processed by all BeanPostProcessors.// 数量int beanProcessorTargetCount = beanFactory.getBeanPostProcessorCount() + 1 + postProcessorNames.length;beanFactory.addBeanPostProcessor(new BeanPostProcessorChecker(beanFactory, beanProcessorTargetCount));// Separate between BeanPostProcessors that implement PriorityOrdered,// Ordered, and the rest.List<BeanPostProcessor> priorityOrderedPostProcessors = new ArrayList<>();List<BeanPostProcessor> internalPostProcessors = new ArrayList<>();List<String> orderedPostProcessorNames = new ArrayList<>();List<String> nonOrderedPostProcessorNames = new ArrayList<>();// 遍历for (String ppName : postProcessorNames) {// 实现PriorityOrdered接口的后置处理器添加到priorityOrderedPostProcessorsif (beanFactory.isTypeMatch(ppName, PriorityOrdered.class)) {BeanPostProcessor pp = beanFactory.getBean(ppName, BeanPostProcessor.class);priorityOrderedPostProcessors.add(pp);// 实现MergedBeanDefinitionPostProcessor接口的添加到internalPostProcessorsif (pp instanceof MergedBeanDefinitionPostProcessor) {internalPostProcessors.add(pp);}}// 实现Ordered接口的添加到orderedPostProcessorNames// 像使用AOP需要注入的【AnnotationAwareAspectJAutoProxyCreator】在顶层实现了Ordered接口// 所以会在这里else if (beanFactory.isTypeMatch(ppName, Ordered.class)) {orderedPostProcessorNames.add(ppName);}else {// 未实现排序的处理器nonOrderedPostProcessorNames.add(ppName);}}// First, register the BeanPostProcessors that implement PriorityOrdered.// 注册实现PriorityOrdered接口的后置处理器sortPostProcessors(priorityOrderedPostProcessors, beanFactory);registerBeanPostProcessors(beanFactory, priorityOrderedPostProcessors);// Next, register the BeanPostProcessors that implement Ordered.// 注册实现Ordered接口的后置处理器List<BeanPostProcessor> orderedPostProcessors = new ArrayList<>(orderedPostProcessorNames.size());for (String ppName : orderedPostProcessorNames) {BeanPostProcessor pp = beanFactory.getBean(ppName, BeanPostProcessor.class);orderedPostProcessors.add(pp);if (pp instanceof MergedBeanDefinitionPostProcessor) {internalPostProcessors.add(pp);}}sortPostProcessors(orderedPostProcessors, beanFactory);registerBeanPostProcessors(beanFactory, orderedPostProcessors);// Now, register all regular BeanPostProcessors.// 注册未实现排序的处理器List<BeanPostProcessor> nonOrderedPostProcessors = new ArrayList<>(nonOrderedPostProcessorNames.size());for (String ppName : nonOrderedPostProcessorNames) {BeanPostProcessor pp = beanFactory.getBean(ppName, BeanPostProcessor.class);nonOrderedPostProcessors.add(pp);if (pp instanceof MergedBeanDefinitionPostProcessor) {internalPostProcessors.add(pp);}}registerBeanPostProcessors(beanFactory, nonOrderedPostProcessors);// Finally, re-register all internal BeanPostProcessors.// 最终 注册实现MergedBeanDefinitionPostProcessor接口的sortPostProcessors(internalPostProcessors, beanFactory);registerBeanPostProcessors(beanFactory, internalPostProcessors);// Re-register post-processor for detecting inner beans as ApplicationListeners, // moving it to the end of the processor chain (for picking up proxies etc).// 重新注册后置处理器把内部Bean检测为ApplicationListenersbeanFactory.addBeanPostProcessor(new ApplicationListenerDetector(applicationContext));}

二、获取增强器

带着问题看源码

AOP底层是借助的后置处理器，这个已经说了很多遍了，上面介绍的AnnotationAwareAspectJAutoProxyCreator类实现了BeanPostProcessor，并且注入到容器中了，剩下的肯定使用，那么我们需要关心的无非是几个问题：

1. 创建成AOP代理对象的方法入口在哪里?
2. 获取该bean可以应用的增强器
3. 代理对象创建过程
4. 创建后的代理对象长啥样？

1.入口方法

既然是后置处理器，肯定是bean初始化的时候，会创建成代理对象，那么bean的初始化也分情况：

1. 如果是普通的bean创建，那么会在doCreateBean() -> initializeBean()，当创建bean以后，初始化的时候，会执行对应的后置处理器
2. 如果是循环依赖的bean创建，那么会在doCreateBean() -> getEarlyBeanReference()，在这里也会执行后置处理器

上面我在Debug源码的时候只试了这2种情况，可能还要其它的入口，但到不管有多少个入口，到最后都会到1个地方负责创建代理，那就是AnnotationAwareAspectJAutoProxyCreator类，找到其重写后置处理器接口的方法就好了。

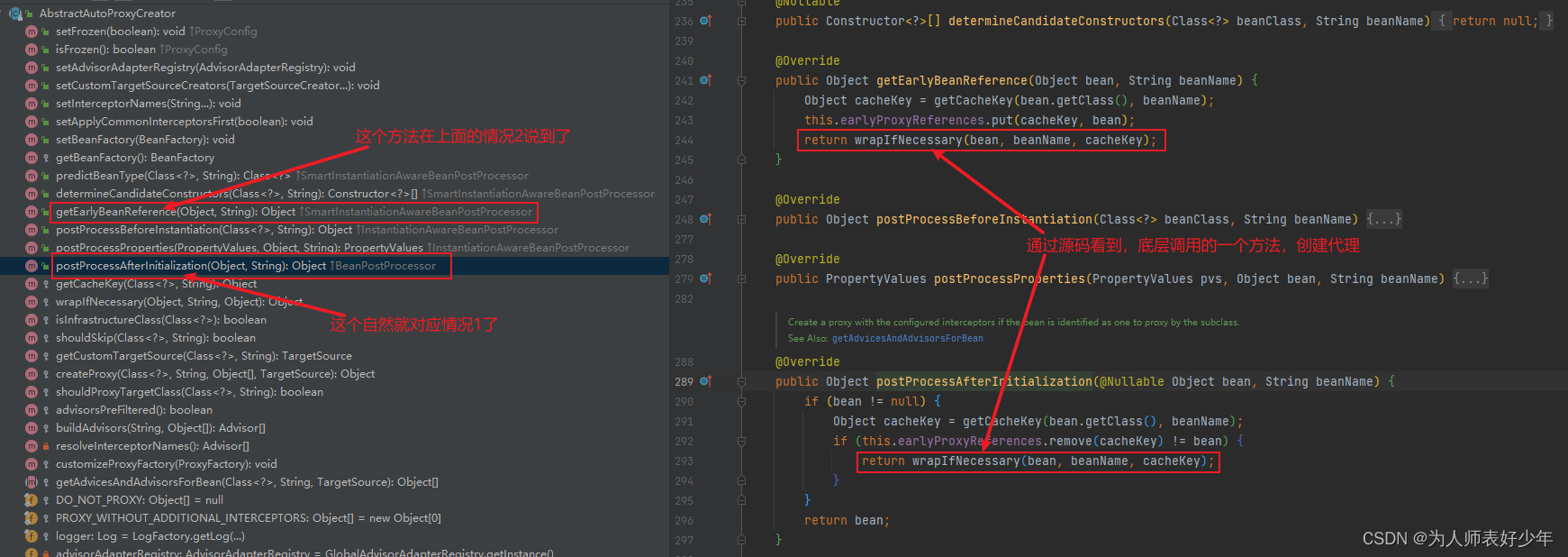

在源码翻阅的时候，发现其中并没有，但是在其父类AbstractAutoProxyCreator，其中存在重写的postProcessAfterInitialization()

2.获取该bean可以应用的增强器

> 整体逻辑

AOP又给我们提供了各种类型的切面，当需要把bean给创建成代理对象，整体逻辑如下：

1. 创建前需要存在各种特殊判断，判断这个bean到底是否需要创建代理对象，排除一些特殊情况，当判断通过，接下来就是开始创建代理
2. 获取代码设置的全部增强器，还有各种切入点Pointcut，这些第一次获取以后肯定是缓存起来的
3. 从全部的增强器中获取到该bean可以使用的增强器
4. 对增强器进行排序

> wrapIfNecessary()

通过上面我们看到，创建代理对象都是走到AbstractAutoProxyCreator#wrapIfNecessary()这个类的后置处理器方法中

@Override
public Object postProcessAfterInitialization(@Nullable Object bean, String beanName) {if (bean != null) {// 根据给定bean的class和name构建出一个key，格式: beanClassName_beanNameObject cacheKey = getCacheKey(bean.getClass(), beanName);// 可能存在循环依赖，判断该bean是否已经提前暴露,  存在这里就不用创建代理对象了if (this.earlyProxyReferences.remove(cacheKey) != bean) {// 适合被代理,则需求封装指定beanreturn wrapIfNecessary(bean, beanName, cacheKey);}}return bean;
}

wrapIfNecessary()这个方法通过名字也可以看出意思来，如果该bean可以被代理，那就创建

// 在这里面的类代表无须再次尝试创建AOP代理对象,  包括已经创建完的和不需要创建的
private final Map<Object, Boolean> advisedBeans = new ConcurrentHashMap<>(256);protected Object wrapIfNecessary(Object bean, String beanName, Object cacheKey) {// 1.如果已经处理过if (StringUtils.hasLength(beanName) && this.targetSourcedBeans.contains(beanName)) {return bean;}// 2.代表该bean无需增强if (Boolean.FALSE.equals(this.advisedBeans.get(cacheKey))) {return bean;}// 3.bean的类是aop基础设施类 || bean应该跳过，则标记为无需处理，并返回if (isInfrastructureClass(bean.getClass()) || shouldSkip(bean.getClass(), beanName)) {this.advisedBeans.put(cacheKey, Boolean.FALSE);return bean;}// 4.获取当前bean的Advices和AdvisorsObject[] specificInterceptors = getAdvicesAndAdvisorsForBean(bean.getClass(), beanName, null);// 5.如果存在增强器则创建代理if (specificInterceptors != DO_NOT_PROXY) {// 代表该bean已经处理了this.advisedBeans.put(cacheKey, Boolean.TRUE);// 创建搭理Object proxy = createProxy(bean.getClass(), beanName, specificInterceptors, new SingletonTargetSource(bean));// 创建完代理后，将cacheKey -> 代理类的class放到缓存this.proxyTypes.put(cacheKey, proxy.getClass());return proxy;}// 6.标记为无需处理this.advisedBeans.put(cacheKey, Boolean.FALSE);return bean;
}

> 不能创建代理对象前的特殊情况

在wrapIfNecessary()前会有几个方法执行，负责判断是否可以把当前bean创建成代理对象，初始化的时候肯定会有一些特殊情况存在，需要特殊排除

isInfrastructureClass() 排除基础设置类

是否是基础配置类，一些固定的类不能被代理

	@Overrideprotected boolean isInfrastructureClass(Class<?> beanClass) {// Previously we setProxyTargetClass(true) in the constructor, but that has too// broad an impact. Instead we now override isInfrastructureClass to avoid proxying// aspects. I'm not entirely happy with that as there is no good reason not// to advise aspects, except that it causes advice invocation to go through a// proxy, and if the aspect implements e.g the Ordered interface it will be// proxied by that interface and fail at runtime as the advice method is not// defined on the interface. We could potentially relax the restriction about// not advising aspects in the future.return (super.isInfrastructureClass(beanClass) ||(this.aspectJAdvisorFactory != null && this.aspectJAdvisorFactory.isAspect(beanClass)));}

shouldSkip() 是否跳过创建

	@Overrideprotected boolean shouldSkip(Class<?> beanClass, String beanName) {// TODO: Consider optimization by caching the list of the aspect names// 获取候选的增强器List<Advisor> candidateAdvisors = findCandidateAdvisors();for (Advisor advisor : candidateAdvisors) {if (advisor instanceof AspectJPointcutAdvisor &&((AspectJPointcutAdvisor) advisor).getAspectName().equals(beanName)) {return true;}}return super.shouldSkip(beanClass, beanName);}

> 获取全部的增强器

继续回到wrapIfNecessary()中，接下来会获取增强器，getAdvicesAndAdvisorsForBean()获取指定bean的增强方法一定是包含两个步骤的：

1. 获取所有的增强，通过findCandidateAdvisors()
2. 寻找所有增强中适用于该bean的增强并应用，通过findAdvisorsThatCanApply()

	// 获取当前Bean的所有增强器@Nullableprotected Object[] getAdvicesAndAdvisorsForBean(Class<?> beanClass, String beanName, @Nullable TargetSource targetSource) {// 获取增强方法List<Advisor> advisors = this.findEligibleAdvisors(beanClass, beanName);// 获取到了则返回,获取不到返回nullreturn advisors.isEmpty() ? DO_NOT_PROXY : advisors.toArray();}// 获取到能在这个目标方法中匹配的增强器protected List<Advisor> findEligibleAdvisors(Class<?> beanClass, String beanName) {// 1)找到所有的增强器List<Advisor> candidateAdvisors = this.findCandidateAdvisors();// 2)从所有增强里面获取到能在bean使用的增强器List<Advisor> eligibleAdvisors = this.findAdvisorsThatCanApply(candidateAdvisors, beanClass, beanName);// 3.扩展方法，留个子类实现this.extendAdvisors(eligibleAdvisors);if (!eligibleAdvisors.isEmpty()) {// 4.对符合条件的Advisor进行排序eligibleAdvisors = this.sortAdvisors(eligibleAdvisors);}return eligibleAdvisors;}

a> findCandidateAdvisors() 获取全部增强器

1. 通过调用父类方法，来解析通过XML配置的AOP
2. 解析通过注解方式设置的AOP
3. 将所有的封装成增强器返回

@Override
protected List<Advisor> findCandidateAdvisors() {// 1）通过父类,加载对XML配置的AOPList<Advisor> advisors = super.findCandidateAdvisors();// Build Advisors for all AspectJ aspects in the bean factory.if (this.aspectJAdvisorsBuilder != null) {// 2) 解析注解方式配置的AOPadvisors.addAll(this.aspectJAdvisorsBuilder.buildAspectJAdvisors());}return advisors;
}

b> buildAspectJAdvisors() 筛选AOP切面类

【方法功能】：既然要筛选切面类，那肯定要遍历项目，筛选出全部标记@Aspect的切面类

上面方法中，会分别解析通过XML和注解配置的AOP，这里只介绍第2种，因为现在的开发更多的使用注解配置

那么就详细看一下buildAspectJAdvisors()，该方法的整体逻辑为：

1. 第一次获取，不存在增强器缓存的情况
   1. 获取所有在beanFactory中注册的beanName
   2. 遍历所有的beanName，并找出声明@Aspect注解的类
      1. 如果是切面类是单例，则获取到该单例bean中的所有增强方法，然后存入缓存
      2. 其它情况，把当前BeanFactory和切面bean封装为一个多例类型的Factory，存入缓存
2. 不是第一次获取，存在增强器缓存的情况
   1. 执行到这里，代表缓存中是存在的
   2. 首先从切面缓存中直接获取增强器，代表是一个单例的切面类
   3. 获取不到，则可能是多例，然后对应的factory，然后获取增强类

public List<Advisor> buildAspectJAdvisors() {List<String> aspectNames = this.aspectBeanNames;// 1.尝试从缓存中获取aspectNames，若没有则手动获取if (aspectNames == null) {synchronized (this) {aspectNames = this.aspectBeanNames;// 加锁以后Double Checkif (aspectNames == null) {// 返回结果List<Advisor> advisors = new ArrayList<>();aspectNames = new ArrayList<>();// 1.获取所有的beanNameString[] beanNames = BeanFactoryUtils.beanNamesForTypeIncludingAncestors(this.beanFactory, Object.class, true, false);// 2.遍历for (String beanName : beanNames) {// 不合法的bean则略过, 由子类重写方法定义规则if (!isEligibleBean(beanName)) {continue;}// We must be careful not to instantiate beans eagerly as in this case they// would be cached by the Spring container but would not have been weaved.// 获取对应的bean类型Class<?> beanType = this.beanFactory.getType(beanName, false);if (beanType == null) {continue;}// 如果该bean存在@Aspect注解if (this.advisorFactory.isAspect(beanType)) {aspectNames.add(beanName);// 把切面类封装成一个元数据类, 包含bean的树形AspectMetadata amd = new AspectMetadata(beanType, beanName);// 判断@Aspect注解中标注的是否为singleton类型，默认的切面类都是singleton类型if (amd.getAjType().getPerClause().getKind() == PerClauseKind.SINGLETON) {MetadataAwareAspectInstanceFactory factory = new BeanFactoryAspectInstanceFactory(this.beanFactory, beanName);// ---------找到增强类中的增强方法, 也就是那些标记 @Before @After 这些注解的方法---------List<Advisor> classAdvisors = this.advisorFactory.getAdvisors(factory);// 如果切面类是singleton类型，则将解析得到的Advisor进行缓存if (this.beanFactory.isSingleton(beanName)) {this.advisorsCache.put(beanName, classAdvisors);}else {// 如果不是单例，则将factory放到缓存，以便再次获取时可以通过factory来解析this.aspectFactoryCache.put(beanName, factory);}advisors.addAll(classAdvisors);}else {// 如果@Aspect注解标注的beanName的Bean是单例，但切面实例化模型不是单例，则抛异常if (this.beanFactory.isSingleton(beanName)) {throw new IllegalArgumentException("Bean with name '" + beanName +"' is a singleton, but aspect instantiation model is not singleton");}// 将当前BeanFactory和切面bean封装为一个多例类型的Factory，同时对当前bean和factory进行缓存MetadataAwareAspectInstanceFactory factory = new PrototypeAspectInstanceFactory(this.beanFactory, beanName);this.aspectFactoryCache.put(beanName, factory);advisors.addAll(this.advisorFactory.getAdvisors(factory));}}}this.aspectBeanNames = aspectNames;return advisors;}}}if (aspectNames.isEmpty()) {return Collections.emptyList();}List<Advisor> advisors = new ArrayList<>();for (String aspectName : aspectNames) {// 根据aspectName从缓存中获取Advisor集合List<Advisor> cachedAdvisors = this.advisorsCache.get(aspectName);if (cachedAdvisors != null) {// 缓存获取到了,返回结果advisors.addAll(cachedAdvisors);}else {// 如果不存在于advisorsCache缓存，则代表存在于aspectFactoryCache中，可能是多例的情况，这时候不能bean，而要存beanFactory// 从aspectFactoryCache中拿到缓存的factory，然后解析出Advisor，添加到结果中MetadataAwareAspectInstanceFactory factory = this.aspectFactoryCache.get(aspectName);advisors.addAll(this.advisorFactory.getAdvisors(factory));}}return advisors;
}

c> getAdvisors() 解析切面类中的增强方法

【方法功能】：上面在buildAspectJAdvisors()已经晒出出所有的AOP切面类了，然后就是遍历这些类，通过该方法，筛选里面的切面方法

1. 获取切面类所有标注了AOP注解的方法
2. 遍历处理方法

@Override
public List<Advisor> getAdvisors(MetadataAwareAspectInstanceFactory aspectInstanceFactory) {// 1.获取类型Class<?> aspectClass = aspectInstanceFactory.getAspectMetadata().getAspectClass();// 2.获取beanNameString aspectName = aspectInstanceFactory.getAspectMetadata().getAspectName();// 3.验证validate(aspectClass);// We need to wrap the MetadataAwareAspectInstanceFactory with a decorator// so that it will only instantiate once.// 通过上面的英文可以看出将其进行封装，使用装饰器模式，保持每次获取到的都是同一个切面实例MetadataAwareAspectInstanceFactory lazySingletonAspectInstanceFactory =new LazySingletonAspectInstanceFactoryDecorator(aspectInstanceFactory);List<Advisor> advisors = new ArrayList<>();// 获取所有的没有使用@Pointcut注解标注的方法，然后对其进行遍历for (Method method : getAdvisorMethods(aspectClass)) {// 判断当前方法是否标注有@Before，@After或@Around等注解，如果标注了，则将其封装为一个AdvisorAdvisor advisor = getAdvisor(method, lazySingletonAspectInstanceFactory, 0, aspectName);if (advisor != null) {advisors.add(advisor);}}// If it's a per target aspect, emit the dummy instantiating aspect.if (!advisors.isEmpty() && lazySingletonAspectInstanceFactory.getAspectMetadata().isLazilyInstantiated()) {// 如果Advisor不为空，并且是需要延迟初始化的bean，则在第0位位置添加一个同步实例化增强器（用以保证增强使用之前的实例化）Advisor instantiationAdvisor = new SyntheticInstantiationAdvisor(lazySingletonAspectInstanceFactory);advisors.add(0, instantiationAdvisor);}// Find introduction fields.// 判断属性上是否包含有@DeclareParents注解标注的需要新添加的属性，如果有，则将其封装为一个Advisorfor (Field field : aspectClass.getDeclaredFields()) {Advisor advisor = getDeclareParentsAdvisor(field);if (advisor != null) {advisors.add(advisor);}}return advisors;
}

d> getAdvisor() 普通增强器获取

【方法功能】：前面已经找到了切面类中的所有方法，接下来就是遍历每个方法，层层遍历

上面的getAdvisor()获取到了切面类中的所有方法，然后调用该重载方法，负责对切点方法注解的获取，然后根据注解信息生成增强

@Override
@Nullable
public Advisor getAdvisor(Method candidateAdviceMethod, MetadataAwareAspectInstanceFactory aspectInstanceFactory,int declarationOrderInAspect, String aspectName) {// 校验validate(aspectInstanceFactory.getAspectMetadata().getAspectClass());// 切点信息的获取AspectJExpressionPointcut expressionPointcut = getPointcut(candidateAdviceMethod, aspectInstanceFactory.getAspectMetadata().getAspectClass());if (expressionPointcut == null) {return null;}// 根据切点信息生成增强器return new InstantiationModelAwarePointcutAdvisorImpl(expressionPointcut, candidateAdviceMethod,this, aspectInstanceFactory, declarationOrderInAspect, aspectName);
}

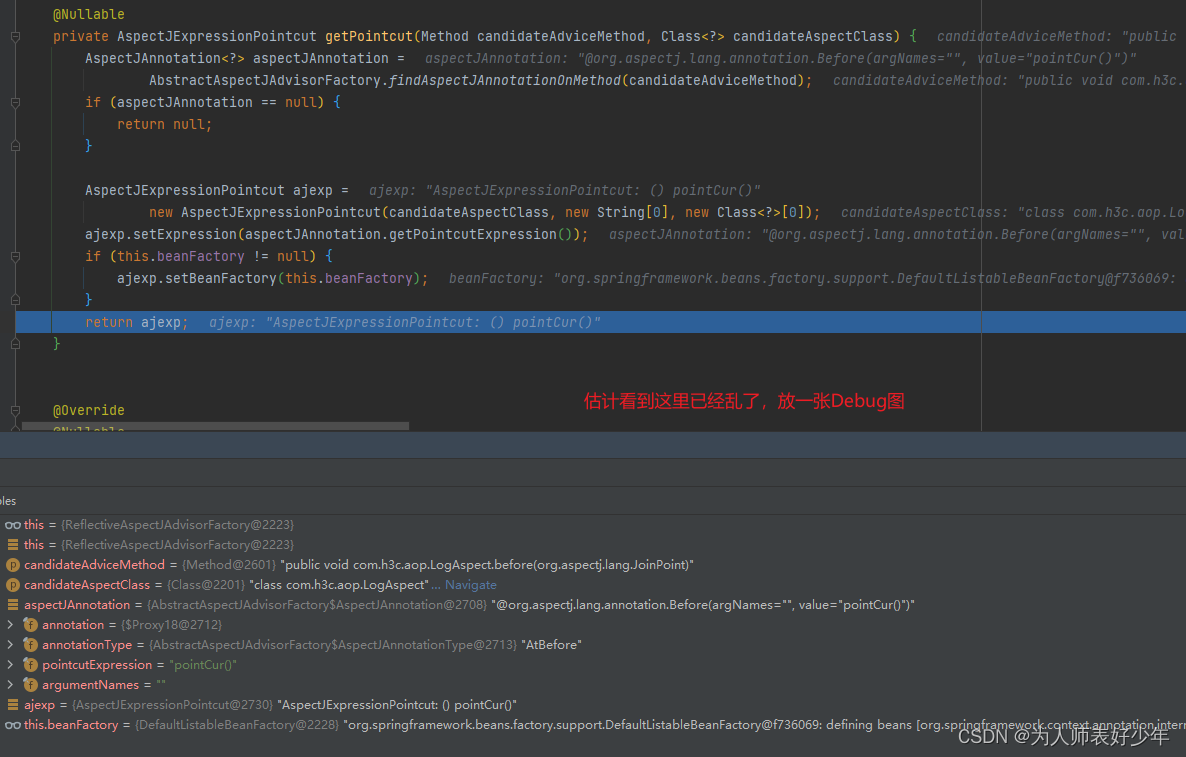

e> getPointcut() 切入信息的获取

【方法功能】：负责解析切面注解上的切入点

@Nullable
private AspectJExpressionPointcut getPointcut(Method candidateAdviceMethod, Class<?> candidateAspectClass) {// 1.查找并返回给定方法的第一个AspectJ注解（@Before, @Around, @After, @AfterReturning, @AfterThrowing, @Pointcut）AspectJAnnotation<?> aspectJAnnotation = AbstractAspectJAdvisorFactory.findAspectJAnnotationOnMethod(candidateAdviceMethod);if (aspectJAnnotation == null) {return null;}// 2.使用AspectJExpressionPointcut实例封装获取的信息AspectJExpressionPointcut ajexp = new AspectJExpressionPointcut(candidateAspectClass, new String[0], new Class<?>[0]);// 提取得到的注解中的表达式，// 例如：@Around("execution(* com.joonwhee.open.aop.*.*(..))")，得到：execution(* com.joonwhee.open.aop.*.*(..))ajexp.setExpression(aspectJAnnotation.getPointcutExpression());if (this.beanFactory != null) {ajexp.setBeanFactory(this.beanFactory);}return ajexp;
}

private static final Class<?>[] ASPECTJ_ANNOTATION_CLASSES = new Class<?>[] {Pointcut.class, Around.class, Before.class, After.class, AfterReturning.class, AfterThrowing.class};@Nullable
protected static AspectJAnnotation<?> findAspectJAnnotationOnMethod(Method method) {// 从所有的切面注解遍历，找到该方法匹配的注解for (Class<?> clazz : ASPECTJ_ANNOTATION_CLASSES) {AspectJAnnotation<?> foundAnnotation = findAnnotation(method, (Class<Annotation>) clazz);if (foundAnnotation != null) {return foundAnnotation;}}return null;
}

f> 根据切点信息生成增强器

> 创建增强器包装类并赋初始值

所有的增强都由Advisor的实现类InstantiationModelAwarePointcutAdvisorImpl统一封装的

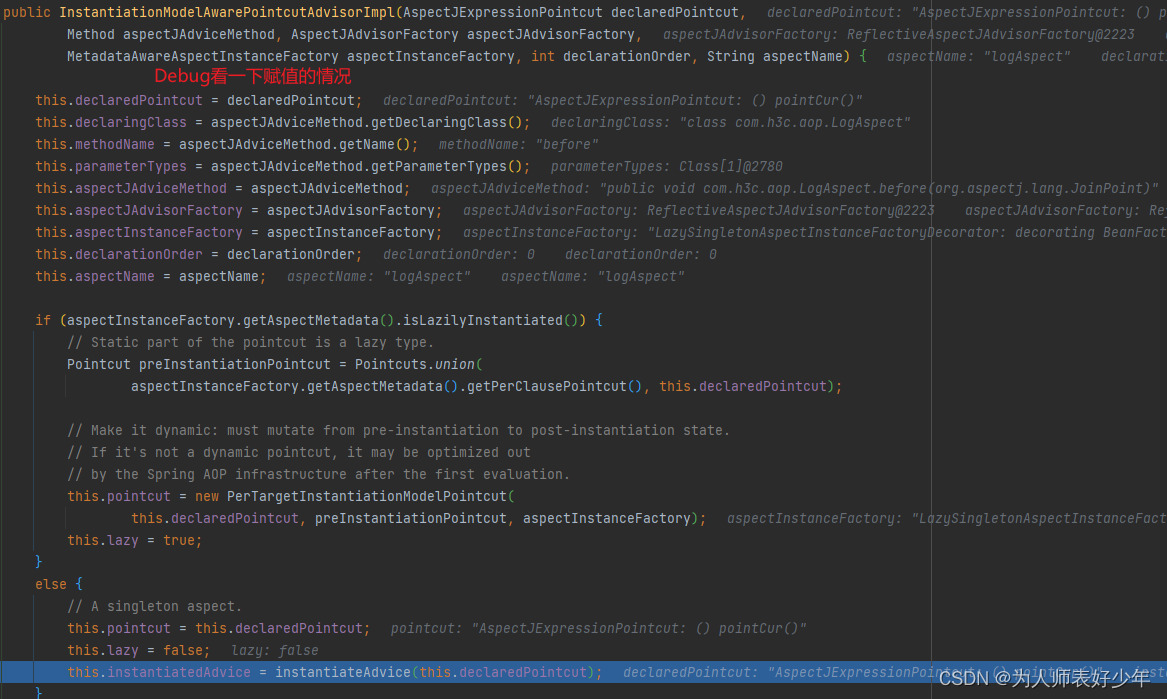

public InstantiationModelAwarePointcutAdvisorImpl(AspectJExpressionPointcut declaredPointcut,Method aspectJAdviceMethod, AspectJAdvisorFactory aspectJAdvisorFactory,MetadataAwareAspectInstanceFactory aspectInstanceFactory, int declarationOrder, String aspectName) {this.declaredPointcut = declaredPointcut;this.declaringClass = aspectJAdviceMethod.getDeclaringClass();this.methodName = aspectJAdviceMethod.getName();this.parameterTypes = aspectJAdviceMethod.getParameterTypes();this.aspectJAdviceMethod = aspectJAdviceMethod;this.aspectJAdvisorFactory = aspectJAdvisorFactory;this.aspectInstanceFactory = aspectInstanceFactory;this.declarationOrder = declarationOrder;this.aspectName = aspectName;if (aspectInstanceFactory.getAspectMetadata().isLazilyInstantiated()) {// Static part of the pointcut is a lazy type.Pointcut preInstantiationPointcut = Pointcuts.union(aspectInstanceFactory.getAspectMetadata().getPerClausePointcut(), this.declaredPointcut);// Make it dynamic: must mutate from pre-instantiation to post-instantiation state.// If it's not a dynamic pointcut, it may be optimized out// by the Spring AOP infrastructure after the first evaluation.this.pointcut = new PerTargetInstantiationModelPointcut(this.declaredPointcut, preInstantiationPointcut, aspectInstanceFactory);this.lazy = true;}else {// A singleton aspect.this.pointcut = this.declaredPointcut;this.lazy = false;// 实例化增强器this.instantiatedAdvice = instantiateAdvice(this.declaredPointcut);}
}

> 创建增强器对象

private Advice instantiateAdvice(AspectJExpressionPointcut pointcut) {Advice advice = this.aspectJAdvisorFactory.getAdvice(this.aspectJAdviceMethod, pointcut,this.aspectInstanceFactory, this.declarationOrder, this.aspectName);return (advice != null ? advice : EMPTY_ADVICE);
}

通过下面方法中的switch可以看到，Spring会根据不同的注解生成不同的增强器

@Override
@Nullable
public Advice getAdvice(Method candidateAdviceMethod, AspectJExpressionPointcut expressionPointcut,MetadataAwareAspectInstanceFactory aspectInstanceFactory, int declarationOrder, String aspectName) {Class<?> candidateAspectClass = aspectInstanceFactory.getAspectMetadata().getAspectClass();validate(candidateAspectClass);AspectJAnnotation<?> aspectJAnnotation =AbstractAspectJAdvisorFactory.findAspectJAnnotationOnMethod(candidateAdviceMethod);if (aspectJAnnotation == null) {return null;}// If we get here, we know we have an AspectJ method.// Check that it's an AspectJ-annotated classif (!isAspect(candidateAspectClass)) {throw new AopConfigException("Advice must be declared inside an aspect type: " +"Offending method '" + candidateAdviceMethod + "' in class [" +candidateAspectClass.getName() + "]");}if (logger.isDebugEnabled()) {logger.debug("Found AspectJ method: " + candidateAdviceMethod);}AbstractAspectJAdvice springAdvice;// 根据不同的类创建switch (aspectJAnnotation.getAnnotationType()) {case AtPointcut:if (logger.isDebugEnabled()) {logger.debug("Processing pointcut '" + candidateAdviceMethod.getName() + "'");}return null;case AtAround:springAdvice = new AspectJAroundAdvice(candidateAdviceMethod, expressionPointcut, aspectInstanceFactory);break;case AtBefore:springAdvice = new AspectJMethodBeforeAdvice(candidateAdviceMethod, expressionPointcut, aspectInstanceFactory);break;case AtAfter:springAdvice = new AspectJAfterAdvice(candidateAdviceMethod, expressionPointcut, aspectInstanceFactory);break;case AtAfterReturning:springAdvice = new AspectJAfterReturningAdvice(candidateAdviceMethod, expressionPointcut, aspectInstanceFactory);AfterReturning afterReturningAnnotation = (AfterReturning) aspectJAnnotation.getAnnotation();if (StringUtils.hasText(afterReturningAnnotation.returning())) {springAdvice.setReturningName(afterReturningAnnotation.returning());}break;case AtAfterThrowing:springAdvice = new AspectJAfterThrowingAdvice(candidateAdviceMethod, expressionPointcut, aspectInstanceFactory);AfterThrowing afterThrowingAnnotation = (AfterThrowing) aspectJAnnotation.getAnnotation();if (StringUtils.hasText(afterThrowingAnnotation.throwing())) {springAdvice.setThrowingName(afterThrowingAnnotation.throwing());}break;default:throw new UnsupportedOperationException("Unsupported advice type on method: " + candidateAdviceMethod);}// Now to configure the advice...springAdvice.setAspectName(aspectName);springAdvice.setDeclarationOrder(declarationOrder);String[] argNames = this.parameterNameDiscoverer.getParameterNames(candidateAdviceMethod);if (argNames != null) {springAdvice.setArgumentNamesFromStringArray(argNames);}springAdvice.calculateArgumentBindings();return springAdvice;
}

> 筛选该bean可以使用的增强器

a> findAdvisorsThatCanApply()

【方法描述】：遍历全部增强器，依次判断该bean可否应用

继续回到上面的方法中wrapIfNecessary() -> getAdvicesAndAdvisorsForBean() -> findEligibleAdvisors()中，当我们获取了全部的增强以后，这个肯定需要缓存起来的，然后创建bean的时候，需要筛选出该bean可以使用的增强器

	public static List<Advisor> findAdvisorsThatCanApply(List<Advisor> candidateAdvisors, Class<?> clazz) {// 空的话直接返回if (candidateAdvisors.isEmpty()) {return candidateAdvisors;}List<Advisor> eligibleAdvisors = new ArrayList<>();// 首先处理引介增强（@DeclareParents）用的比较少可以忽略for (Advisor candidate : candidateAdvisors) {if (candidate instanceof IntroductionAdvisor && canApply(candidate, clazz)) {eligibleAdvisors.add(candidate);}}boolean hasIntroductions = !eligibleAdvisors.isEmpty();// 遍历所有增强器for (Advisor candidate : candidateAdvisors) {if (candidate instanceof IntroductionAdvisor) {// already processedcontinue;}// 判断是否可以应用if (canApply(candidate, clazz, hasIntroductions)) {eligibleAdvisors.add(candidate);}}return eligibleAdvisors;}

b> canApply() 判断该bean可否应用增强器

public static boolean canApply(Advisor advisor, Class<?> targetClass, boolean hasIntroductions) {// 判断是否上面提到的引介增强,用的比较少if (advisor instanceof IntroductionAdvisor) {return ((IntroductionAdvisor) advisor).getClassFilter().matches(targetClass);}// 通常我们的Advisor都是PointcutAdvisor类型else if (advisor instanceof PointcutAdvisor) {PointcutAdvisor pca = (PointcutAdvisor) advisor;return canApply(pca.getPointcut(), targetClass, hasIntroductions);}else {// It doesn't have a pointcut so we assume it applies.return true;}
}

这里面就是负责把切入点和方法进行匹配

public static boolean canApply(Pointcut pc, Class<?> targetClass, boolean hasIntroductions) {Assert.notNull(pc, "Pointcut must not be null");// 判断目标bean是否与增强器上面的切点表达式是否匹配// 也就是判断 @Pointcut(value = "execution(public int com.h3c.aop.bean.*.*(..))") 这个和目前bean是否匹配if (!pc.getClassFilter().matches(targetClass)) {return false;}// 判断如果当前Advisor所指代的方法的切点表达式如果是对任意方法都放行，则直接返回MethodMatcher methodMatcher = pc.getMethodMatcher();if (methodMatcher == MethodMatcher.TRUE) {// No need to iterate the methods if we're matching any method anyway...return true;}IntroductionAwareMethodMatcher introductionAwareMethodMatcher = null;if (methodMatcher instanceof IntroductionAwareMethodMatcher) {introductionAwareMethodMatcher = (IntroductionAwareMethodMatcher) methodMatcher;}// 获取目标类的所有接口Set<Class<?>> classes = new LinkedHashSet<>();if (!Proxy.isProxyClass(targetClass)) {classes.add(ClassUtils.getUserClass(targetClass));}classes.addAll(ClassUtils.getAllInterfacesForClassAsSet(targetClass));// 遍历目标类上的接口方法for (Class<?> clazz : classes) {// Method[] methods = ReflectionUtils.getAllDeclaredMethods(clazz);for (Method method : methods) {// 使用matches判断能否作用于该方法上if (introductionAwareMethodMatcher != null ?introductionAwareMethodMatcher.matches(method, targetClass, hasIntroductions) :methodMatcher.matches(method, targetClass)) {return true;}}}return false;
}

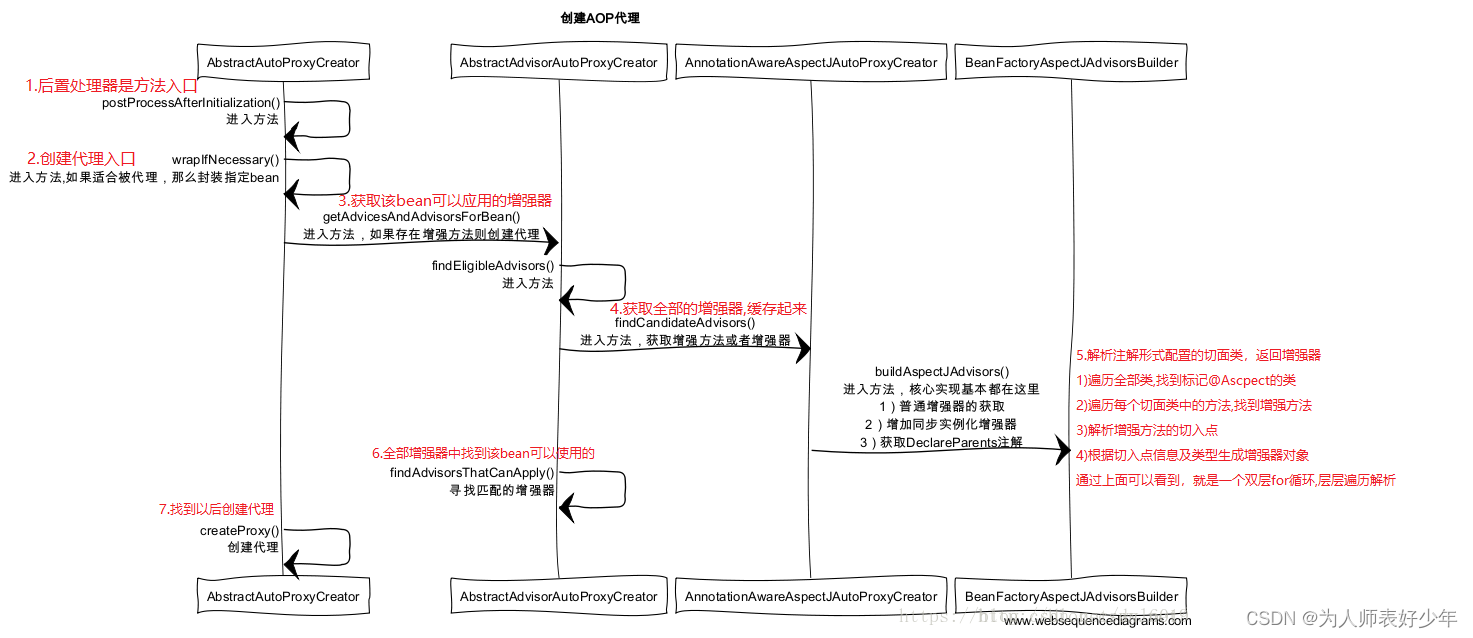

3.执行逻辑图

上面介绍了如何获取增强器，那么在通过下面的图回顾一下：

三、根据增强器创建代理

1.Spring代理介绍

上面已经获取到了其增强器，然后继续回到wrapIfNecessary()，接下来就是开始创建代理了，那么在看源码之前先把代理的知识聊一下

如果忘了最基础的如何创建代理请阅读《GoF设计模式》 之No.11代理模式》

那么接下来说一下Spring框架，Spring作为一个优秀的框架，提供了多种应用层面上代理的方式：ProxyFactoryBean、ProxyFactory、AspectJProxyFactory

注意：此处这里指的是Spring提供的应用层得方式，并不是指的底层实现方式。底层实现方式现在只有业界都熟悉的两种：JDK动态代理和CGLIB代理~

• ProxyFactoryBean是将我们的AOP和IOC融合起来，
• ProxyFactory则是只能通过代码硬编码进行编写 一般都是给spring自己使用。
• AspectJ是目前大家最常用的集成AspectJ和Spring


涉及的关键类说明
ProxyConfig：为上面三个类提供配置属性
AdvisedSupport：继承ProxyConfig，实现了Advised。封装了对通知（Advise）和通知器(Advisor)的操作
ProxyCreatorSupport：继承AdvisedSupport，其帮助子类（上面三个类）创建JDK或者cglib的代理对象

1) ProxyFactoryBean

使用Spring提供的类org.springframework.aop.framework.ProxyFactoryBean是创建AOP的最基本的方式，是比较麻烦的，需要实现特定的接口，并进行一些较为复杂的配置。

它是将Aop和IOC融合起来，所以它肯定是个Bean，然后我们可以自定义我们的代理实现逻辑，最终交给Spring容器管理即可。

public class ProxyFactoryBean extends ProxyCreatorSupportimplements FactoryBean<Object>, BeanClassLoaderAware, BeanFactoryAware {

【写个例子】

@Configuration
public class ProxyConfig {// 目标类@Beanpublic HelloService helloService() {return new HelloService();}// 增强类@Beanpublic LogMethodBeforeAdvice logMethodBeforeAdvice() {return new LogMethodBeforeAdvice();}// 创建一个代理,注入IOC,从这里可以看到ProxyFactoryBean会与IOC融合起来@Beanpublic ProxyFactoryBean proxyFactoryBean(HelloService helloService) {ProxyFactoryBean proxyFactoryBean = new ProxyFactoryBean();// 设置目标对象proxyFactoryBean.setTarget(helloService);// 设置需要被代理的接口proxyFactoryBean.setInterfaces(HelloInterface.class);// 需要植入进目标对象的bean列表 此处需要注意：这些bean必须实现类 org.aopalliance.intercept.MethodInterceptor或 org.springframework.aop.Advisor的bean ,配置中的顺序对应调用的顺序proxyFactoryBean.setInterceptorNames("logMethodBeforeAdvice");return proxyFactoryBean;}public static void main(String[] args) {AnnotationConfigApplicationContext context = new AnnotationConfigApplicationContext(ProxyConfig.class);HelloInterface helloInterface = (HelloInterface) context.getBean("proxyFactoryBean");helloInterface.hello();}}interface HelloInterface {void hello();
}class HelloService implements HelloInterface {@Overridepublic void hello() {System.out.println("执行hello()-------");}
}class LogMethodBeforeAdvice implements MethodBeforeAdvice {@Overridepublic void before(Method method, Object[] args, Object target) throws Throwable {System.out.println("before-----------------");}
}

2) ProxyFactory

它和Spring容器没啥关系，可议直接创建代理来使用：

public static void main(String[] args) {ProxyFactory proxyFactory = new ProxyFactory(new HelloService());// 添加两个Advise，一个匿名内部类表示proxyFactory.addAdvice((AfterReturningAdvice) (returnValue, method, args1, target) ->System.out.println("AfterReturningAdvice method=" + method.getName()));proxyFactory.addAdvice(new LogMethodBeforeAdvice());HelloInterface proxy = (HelloInterface) proxyFactory.getProxy();proxy.hello();
}// 输出
before-----------------
执行hello()-------
AfterReturningAdvice method=hello

很显然它代理的Bean都是new出来的，所以比如HelloServiceImpl就不能和Spring IoC很好的结合了，所以一般都是Spring内部去使用。

public class ProxyFactory extends ProxyCreatorSupport {// 它提供了丰富的构造函数~~~public ProxyFactory() {}public ProxyFactory(Object target) {setTarget(target);setInterfaces(ClassUtils.getAllInterfaces(target));}public ProxyFactory(Class<?>... proxyInterfaces) {setInterfaces(proxyInterfaces);}public ProxyFactory(Class<?> proxyInterface, Interceptor interceptor) {addInterface(proxyInterface);addAdvice(interceptor);}public ProxyFactory(Class<?> proxyInterface, TargetSource targetSource) {addInterface(proxyInterface);setTargetSource(targetSource);}// 创建代理的语句：调用父类ProxyCreatorSupport#createAopProxy 此处就不用再解释了public Object getProxy() {return createAopProxy().getProxy();}public Object getProxy(@Nullable ClassLoader classLoader) {return createAopProxy().getProxy(classLoader);}// 主义这是个静态方法，可以一步到位，代理指定的接口public static <T> T getProxy(Class<T> proxyInterface, Interceptor interceptor) {return (T) new ProxyFactory(proxyInterface, interceptor).getProxy();}public static <T> T getProxy(Class<T> proxyInterface, TargetSource targetSource) {return (T) new ProxyFactory(proxyInterface, targetSource).getProxy();}// 注意：若调用此方法生成代理，就直接使用的是CGLIB的方式的public static Object getProxy(TargetSource targetSource) {if (targetSource.getTargetClass() == null) {throw new IllegalArgumentException("Cannot create class proxy for TargetSource with null target class");}ProxyFactory proxyFactory = new ProxyFactory();proxyFactory.setTargetSource(targetSource);proxyFactory.setProxyTargetClass(true);return proxyFactory.getProxy();}
}

3) AspectJProxyFactory

在低版本Spring中定义一个切面是比较麻烦的，需要实现特定的接口，并进行一些较为复杂的配置，低版本Spring AOP的配置是被批评最多的地方。Spring听取这方面的批评声音，并下决心彻底改变这一现状。在Spring2.0中，Spring AOP已经焕然一新，你可以使用@AspectJ注解非常容易的定义一个切面，不需要实现任何的接口

AspectJ是目前大家最常用的 起到集成AspectJ和Spring，也就是我们平时长谈的：自动代理模式。它整个代理的过程全部交给Spring内部去完成，无侵入。

我们只需要配置切面、通知、切点表达式就能自动的实现切入的效果，使用起来极其方便，对调用者可以说是非常透明化的。相信这也是为何当下最流行这种方式的原因~

2.源码分析

接下来就是继续看源码了，首先，下面看到的Aop代理源码，采用的ProxyFactory，也就是上面介绍到的第2种，采用硬编码的方式

> createProxy() 创建代理工厂

// AbstractAutoProxyCreator
protected Object createProxy(Class<?> beanClass, @Nullable String beanName, @Nullable Object[] specificInterceptors, TargetSource targetSource) {if (this.beanFactory instanceof ConfigurableListableBeanFactory) {AutoProxyUtils.exposeTargetClass((ConfigurableListableBeanFactory)this.beanFactory, beanName, beanClass);}// 获取当前类中的相关属性ProxyFactory proxyFactory = new ProxyFactory();proxyFactory.copyFrom(this);if (proxyFactory.isProxyTargetClass()) {if (Proxy.isProxyClass(beanClass)) {Class[] var6 = beanClass.getInterfaces();int var7 = var6.length;for(int var8 = 0; var8 < var7; ++var8) {Class<?> ifc = var6[var8];proxyFactory.addInterface(ifc);}}} else if (this.shouldProxyTargetClass(beanClass, beanName)) {proxyFactory.setProxyTargetClass(true);} else {this.evaluateProxyInterfaces(beanClass, proxyFactory);}// 获取所有增强器(通知方法)Advisor[] advisors = this.buildAdvisors(beanName, specificInterceptors);// 保存到proxyFactoryproxyFactory.addAdvisors(advisors);proxyFactory.setTargetSource(targetSource);this.customizeProxyFactory(proxyFactory);proxyFactory.setFrozen(this.freezeProxy);if (this.advisorsPreFiltered()) {proxyFactory.setPreFiltered(true);}ClassLoader classLoader = this.getProxyClassLoader();if (classLoader instanceof SmartClassLoader && classLoader != beanClass.getClassLoader()) {classLoader = ((SmartClassLoader)classLoader).getOriginalClassLoader();}// 获取代理return proxyFactory.getProxy(classLoader);}

> getProxy 获取代理对象

// ProxyFactory
public Object getProxy(@Nullable ClassLoader classLoader) {// createAopProxy()调用的父类ProxyCreatorSupportreturn createAopProxy().getProxy(classLoader);
}

> createAopProxy 创建AOP代理

// ProxyCreatorSupport
protected final synchronized AopProxy createAopProxy() {if (!this.active) {activate();}return getAopProxyFactory().createAopProxy(this);
}public AopProxyFactory getAopProxyFactory() {return this.aopProxyFactory;
}// DefaultAopProxyFactory// 创建代理对象@Overridepublic AopProxy createAopProxy(AdvisedSupport config) throws AopConfigException {if (!NativeDetector.inNativeImage() &&(config.isOptimize() || config.isProxyTargetClass() || hasNoUserSuppliedProxyInterfaces(config))) {Class<?> targetClass = config.getTargetClass();if (targetClass == null) {throw new AopConfigException("TargetSource cannot determine target class: " +"Either an interface or a target is required for proxy creation.");}if (targetClass.isInterface() || Proxy.isProxyClass(targetClass)) {return new JdkDynamicAopProxy(config);}// 普通对象则使用cglib动态代理return new ObjenesisCglibAopProxy(config);}else {// 存在接口, 则使用JDK动态代理return new JdkDynamicAopProxy(config);}}

> getProxy()

这里会获取代理对象，如果是采用的JDK动态代理，则执行到JdkDynamicAopProxy中

@Override
public Object getProxy(@Nullable ClassLoader classLoader) {if (logger.isTraceEnabled()) {logger.trace("Creating JDK dynamic proxy: " + this.advised.getTargetSource());}// 我们熟悉的代理创建return Proxy.newProxyInstance(classLoader, this.proxiedInterfaces, this);
}

如果是采用的Cglib代理，则进入CglibAopProxy中

@Override
public Object getProxy(@Nullable ClassLoader classLoader) {if (logger.isTraceEnabled()) {logger.trace("Creating CGLIB proxy: " + this.advised.getTargetSource());}try {Class<?> rootClass = this.advised.getTargetClass();Assert.state(rootClass != null, "Target class must be available for creating a CGLIB proxy");Class<?> proxySuperClass = rootClass;if (rootClass.getName().contains(ClassUtils.CGLIB_CLASS_SEPARATOR)) {proxySuperClass = rootClass.getSuperclass();Class<?>[] additionalInterfaces = rootClass.getInterfaces();for (Class<?> additionalInterface : additionalInterfaces) {this.advised.addInterface(additionalInterface);}}// Validate the class, writing log messages as necessary.validateClassIfNecessary(proxySuperClass, classLoader);// Configure CGLIB Enhancer...Enhancer enhancer = createEnhancer();if (classLoader != null) {enhancer.setClassLoader(classLoader);if (classLoader instanceof SmartClassLoader &&((SmartClassLoader) classLoader).isClassReloadable(proxySuperClass)) {enhancer.setUseCache(false);}}enhancer.setSuperclass(proxySuperClass);enhancer.setInterfaces(AopProxyUtils.completeProxiedInterfaces(this.advised));enhancer.setNamingPolicy(SpringNamingPolicy.INSTANCE);enhancer.setStrategy(new ClassLoaderAwareGeneratorStrategy(classLoader));Callback[] callbacks = getCallbacks(rootClass);Class<?>[] types = new Class<?>[callbacks.length];for (int x = 0; x < types.length; x++) {types[x] = callbacks[x].getClass();}// fixedInterceptorMap only populated at this point, after getCallbacks call aboveenhancer.setCallbackFilter(new ProxyCallbackFilter(this.advised.getConfigurationOnlyCopy(), this.fixedInterceptorMap, this.fixedInterceptorOffset));enhancer.setCallbackTypes(types);// Generate the proxy class and create a proxy instance.return createProxyClassAndInstance(enhancer, callbacks);}catch (CodeGenerationException | IllegalArgumentException ex) {throw new AopConfigException("Could not generate CGLIB subclass of " + this.advised.getTargetClass() +": Common causes of this problem include using a final class or a non-visible class",ex);}catch (Throwable ex) {// TargetSource.getTarget() failedthrow new AopConfigException("Unexpected AOP exception", ex);}
}

s(this.advised));
enhancer.setNamingPolicy(SpringNamingPolicy.INSTANCE);
enhancer.setStrategy(new ClassLoaderAwareGeneratorStrategy(classLoader));

  Callback[] callbacks = getCallbacks(rootClass);Class<?>[] types = new Class<?>[callbacks.length];for (int x = 0; x < types.length; x++) {types[x] = callbacks[x].getClass();}// fixedInterceptorMap only populated at this point, after getCallbacks call aboveenhancer.setCallbackFilter(new ProxyCallbackFilter(this.advised.getConfigurationOnlyCopy(), this.fixedInterceptorMap, this.fixedInterceptorOffset));enhancer.setCallbackTypes(types);// Generate the proxy class and create a proxy instance.return createProxyClassAndInstance(enhancer, callbacks);

}
catch (CodeGenerationException | IllegalArgumentException ex) {
throw new AopConfigException("Could not generate CGLIB subclass of " + this.advised.getTargetClass() +
“: Common causes of this problem include using a final class or a non-visible class”,
ex);
}
catch (Throwable ex) {
// TargetSource.getTarget() failed
throw new AopConfigException(“Unexpected AOP exception”, ex);
}
}
