SpringDataJpa源码分析

我们在定义Repository的时候通常定义的时一个接口，而并没有去实现这个接口，那么Jpa是如何让开发者无需自己实现接口就可以使用Repository去操作数据库？
动态代理！！！

Repository原理

试想一下JPA是如何做的？

1. 通过动态代理将接口实例化成对应的类。
2. 解析方法名或根据指定的方法名
3. 并根据得到的结果转换为数据库操作

尝试写一个示例

• 自定义一个Repository

public interface CustomRepository<T, ID> extends Repository<T, ID> {/*** 查询前num条数据* @param num* @return*/List<T> findByFirst(Long num);
}

• 对自定义Repository的代理逻辑

/*** @author yuanmengfan(mf.yuan @ qq.com) on 2024/8/7 23:26* 自定义Repository的代理*/
@Data
public class CustomRepositoryInvocationHandler implements InvocationHandler {// 用于操作数据库private EntityManager em;// 知晓操作那个对象private Class<?> entityClass;public CustomRepositoryInvocationHandler(EntityManager em, Class<?> entityClass) {this.em = em;this.entityClass = entityClass;}@Overridepublic Object invoke(Object proxy, Method method, Object[] args) {Object result = null;String name = method.getName();switch (name) {// 根据方法名定义不同操作数据库的逻辑case "findByFirst":CriteriaBuilder cn = em.getCriteriaBuilder();CriteriaQuery query = cn.createQuery(entityClass);Root from = query.from(entityClass);result = em.createQuery(query.select(from)).setMaxResults(Math.toIntExact((Long) args[0])).getResultList();break;}return result;}
}

• 测试下创建出来的代理对象是否能正常运行

@Testpublic void test() {// 初始化IOC容器AnnotationConfigApplicationContext applicationContext = new AnnotationConfigApplicationContext(JpaConfig.class);LocalContainerEntityManagerFactoryBean localContainerEntityManagerFactoryBean = applicationContext.getBean(LocalContainerEntityManagerFactoryBean.class);// 创建EntityManagerEntityManager em = localContainerEntityManagerFactoryBean.getNativeEntityManagerFactory().createEntityManager();Class<?> proxyClass = UserCustomRepository.class;// 获取接口泛型信息ParameterizedType parameterizedType = (ParameterizedType) proxyClass.getGenericInterfaces()[0];Type[] actualTypeArguments = parameterizedType.getActualTypeArguments();Class entityClass = (Class) actualTypeArguments[0];Class idClass = (Class) actualTypeArguments[1];// 通过动态代理创建对象UserCustomRepository proxyInstance = (UserCustomRepository) Proxy.newProxyInstance(proxyClass.getClassLoader(), new Class[]{proxyClass}, new CustomRepositoryInvocationHandler(em, entityClass));System.out.println(proxyInstance.findByFirst(5L));}

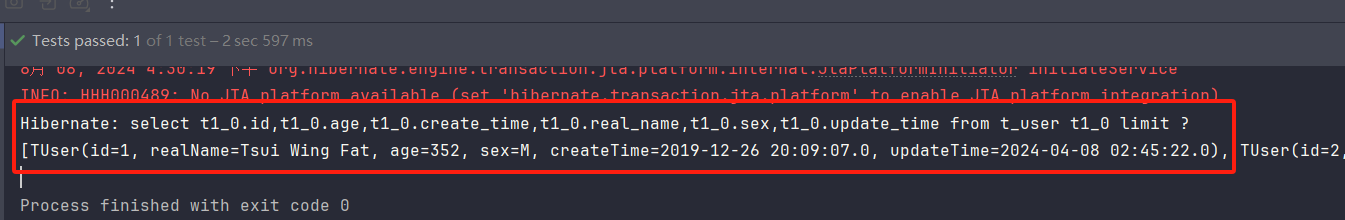

已经可以根据我们指定的类型来操作数据库了。

源码跟踪验证

@Test
public void test(){// 初始化IOC容器AnnotationConfigApplicationContext applicationContext = new AnnotationConfigApplicationContext(JpaConfig.class);UserJpaRepository bean = applicationContext.getBean(UserJpaRepository.class);Optional<TUser> byId = bean.findById(5L);
}

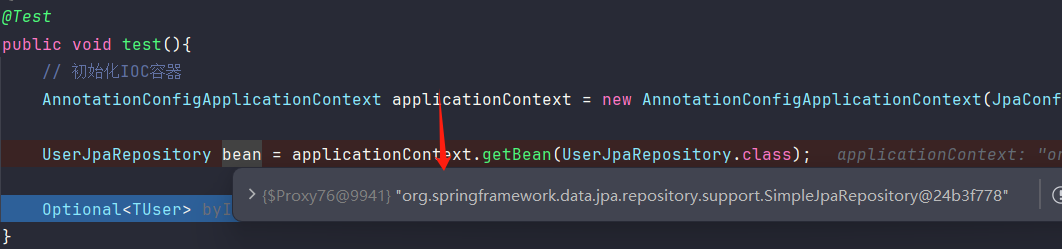

能发现这里在IOC容器中的是代理对象。

可以明显的看出这里是使用的JDK动态代理。

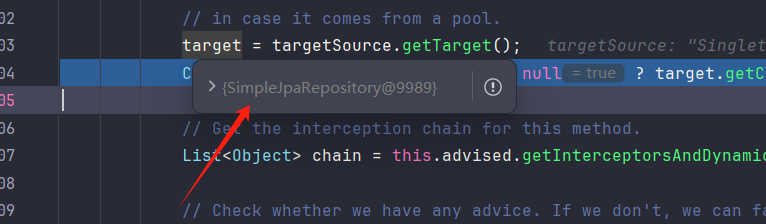

这里可以看见实际上我们的对象是SimpleJpaRepository

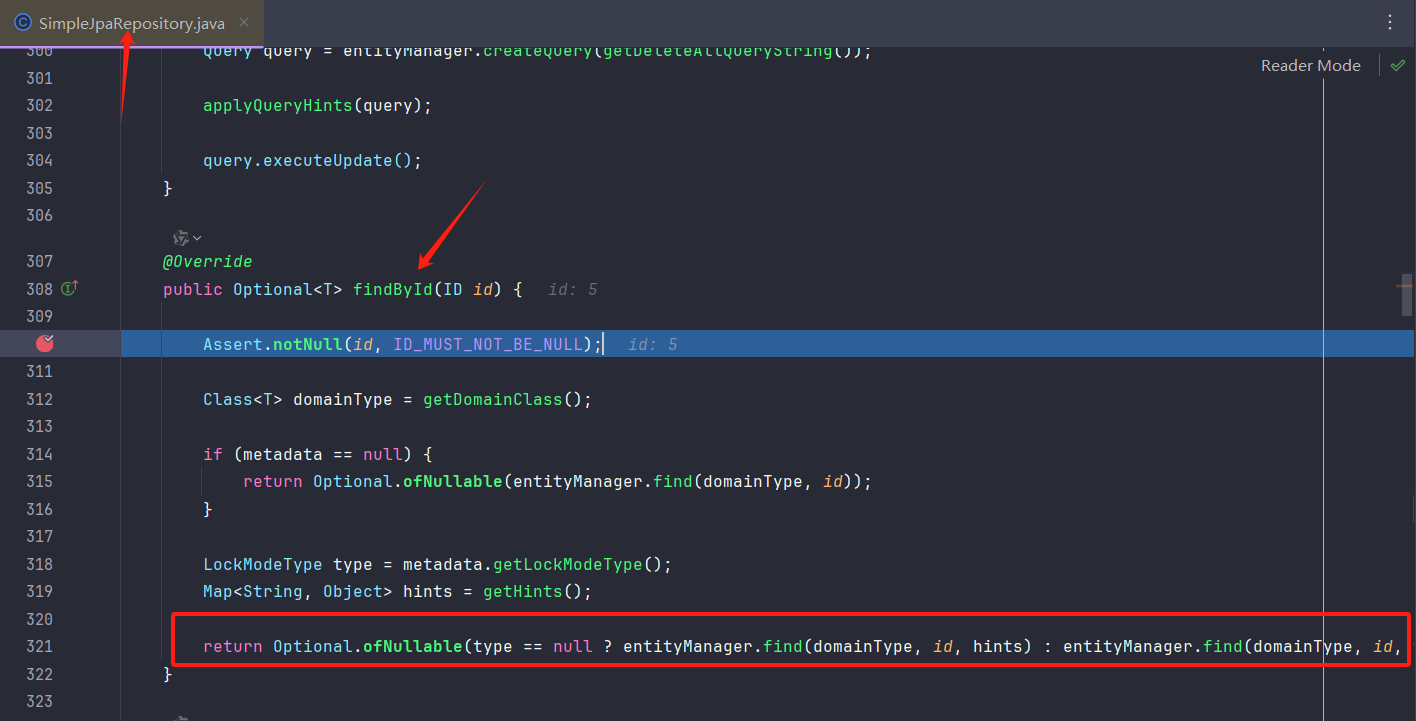

实际调用findById也是通过EntityManage去操作数据库

Spring是如何整合Jpa呢？

疑问

怎么知道要注册那些Repository？

@ComponentScan+@Component

// 添加
@ComponentScan(basePackages = "com.mfyuan")
public class JpaConfig{}// 添加
@Component
public interface UserCustomRepository extends CustomRepository<TUser, Long> {}@Test
public void test1() {// 初始化IOC容器AnnotationConfigApplicationContext applicationContext = new AnnotationConfigApplicationContext(JpaConfig.class);// 尝试从容器中获取BeanUserCustomRepository bean = applicationContext.getBean(UserCustomRepository.class);
}

为什么还是拿不到这个Bean呢？
因为Repository是接口不是类，不会被注册到IOC容器中。在扫描成BeanDefinition是被过滤掉了。
ConfigurationClassParser#doProcessConfigurationClass
ComponentScanAnnotationParser#parse 处理@Component的解析
ClassPathBeanDefinitionScanner#doScan
#findCandidateComponents
#scanCandidateComponents

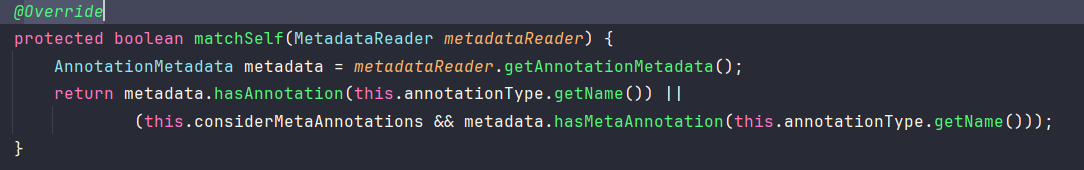

#isCandidateComponent(metadataReader) 判断是否包含@Component注解

#isCandidateComponent(sbd) 判断是否为接口或者抽象类

:::
如何解决不扫描接口的问题呢？

1. ClassPathBeanDefinitionScanner：自定义一个扫描器（让接口也可以别扫描到）。
2. BeanDefinitionRegistryPostProcessor：在BeanDefinition注册的过程中可以允许进干预。
   :::

public class CustomClassPathBeanDefinitionScanner extends ClassPathBeanDefinitionScanner {public CustomClassPathBeanDefinitionScanner(BeanDefinitionRegistry registry) {super(registry);// 添加过滤器只扫描实现CustomRepository接口的类}/*** 允许接口被扫描** @param beanDefinition the bean definition to check* @return*/@Overrideprotected boolean isCandidateComponent(AnnotatedBeanDefinition beanDefinition) {AnnotationMetadata metadata = beanDefinition.getMetadata();return metadata.isInterface();}
}

@Component
public class CustomBeanDefinitionRegistryPostProcessor implements BeanDefinitionRegistryPostProcessor {@Overridepublic void postProcessBeanDefinitionRegistry(BeanDefinitionRegistry registry) throws BeansException {CustomClassPathBeanDefinitionScanner definitionScanner = new CustomClassPathBeanDefinitionScanner(registry);// 清空原有filter definitionScanner.resetFilters(false);// 添加过滤器只扫描实现CustomRepository接口的类definitionScanner.addIncludeFilter(new AssignableTypeFilter(CustomRepository.class));// 能将 com.mfyuan.repository 下的接口也进行注册了definitionScanner.scan("com.mfyuan.repository");}@Overridepublic void postProcessBeanFactory(ConfigurableListableBeanFactory beanFactory) throws BeansException {BeanDefinitionRegistryPostProcessor.super.postProcessBeanFactory(beanFactory);}
}

到现在我们的接口就可以被扫描成BeanDefinition，但是又遇到一个问题？

与之前的错误不同的是已经不再提前找不到对应类型的Bean了，而是接口不能实例化的。
:::

如何将对应的Repository接口注入到容器中？

可以将通过动态代理后的对象放入到容器中，这里就解决了接口不能实例化的问题。
但是不可能一个一个去创建动态代理的对象吧，这样想想就很痛苦。
使用FactoryBean来定义创建过程。与前面Repository原理结合。
:::

@Data
public class CustomRepositoryFactoryBean implements FactoryBean {private Class<?> repositoryInterface;@Autowiredprivate LocalContainerEntityManagerFactoryBean localContainerEntityManagerFactoryBean;public CustomRepositoryFactoryBean(Class<?> repositoryInterface) {this.repositoryInterface = repositoryInterface;}/*** FactoryBean的特性这个方法的返回值是注册到容器中对象*/@Overridepublic Object getObject() {// 创建EntityManagerEntityManager em = localContainerEntityManagerFactoryBean.getNativeEntityManagerFactory().createEntityManager();// 获取接口泛型信息ParameterizedType parameterizedType = (ParameterizedType) repositoryInterface.getGenericInterfaces()[0];Type[] actualTypeArguments = parameterizedType.getActualTypeArguments();Class<?> entityClass = (Class<?>) actualTypeArguments[0];// Class idClass = (Class) actualTypeArguments[1];// 通过动态代理创建对象return Proxy.newProxyInstance(repositoryInterface.getClassLoader(), new Class[]{repositoryInterface}, new CustomRepositoryInvocationHandler(em, entityClass));}/*** FactoryBean的特性这个方法的返回值是注册到容器的对象类型*/@Overridepublic Class<?> getObjectType() {return repositoryInterface;}
}

重写CustomClassPathBeanDefinitionScanner#doScan 对扫描到的BeanDefinition进行修改

public class CustomClassPathBeanDefinitionScanner extends ClassPathBeanDefinitionScanner {// .....@SneakyThrows@Overrideprotected Set<BeanDefinitionHolder> doScan(String... basePackages) {// 这里拿到的就行自定义扫描器 扫出来的所有BeanDefinitionSet<BeanDefinitionHolder> beanDefinitionHolders = super.doScan(basePackages);for (BeanDefinitionHolder beanDefinitionHolder : beanDefinitionHolders) {ScannedGenericBeanDefinition beanDefinition = (ScannedGenericBeanDefinition) beanDefinitionHolder.getBeanDefinition();// 得到扫描到的repositoryClassString repositoryClassName = beanDefinition.getBeanClassName();// 设置BeanDefinition的Class为FactoryBean// mybatis 这里也是这样做的 只不过是新注册了一个BeanDefinitionbeanDefinition.setBeanClass(CustomRepositoryFactoryBean.class);// 添加一个构造参数beanDefinition.getConstructorArgumentValues().addGenericArgumentValue(repositoryClassName);}return beanDefinitionHolders;}
}

测试

@Test
public void test1() {// 初始化IOC容器AnnotationConfigApplicationContext applicationContext = new AnnotationConfigApplicationContext(JpaConfig.class);// 尝试从容器中获取BeanUserCustomRepository bean = applicationContext.getBean(UserCustomRepository.class);System.out.println(bean.findByFirst(5L));
}

能够走自定义Repository里面的方法了。

解释

CustomRepository：相当于一个顶层接口，他去定义对应的统一的数据库操作。类似JpaRepository，CrudRepository等
CustomRepositoryInvocationHandler：相当于是对顶层接口所有的方法进行了一个实现。类似SimpleJpaRepository

源码验证

// 导入JpaRepositoriesRegistrar
@Import(JpaRepositoriesRegistrar.class)
public @interface EnableJpaRepositories {}// 实现了ImportBeanDefinitionRegistrar就代表有动态注册BeanDefinition的能力
class JpaRepositoriesRegistrar extends RepositoryBeanDefinitionRegistrarSupport {}public abstract class RepositoryBeanDefinitionRegistrarSupportimplements ImportBeanDefinitionRegistrar, ResourceLoaderAware, EnvironmentAware {@Overridepublic void registerBeanDefinitions(AnnotationMetadata metadata, BeanDefinitionRegistry registry,BeanNameGenerator generator) {// ...// 委托RepositoryConfigurationDelegate进行注册RepositoryConfigurationDelegate delegate = new RepositoryConfigurationDelegate(configurationSource, resourceLoader,environment);delegate.registerRepositoriesIn(registry, extension);}@Overridepublic Streamable<BeanDefinition> getCandidates(ResourceLoader loader) {// 定义的扫描器RepositoryComponentProvider scanner = new RepositoryComponentProvider(getIncludeFilters(), registry);scanner.setConsiderNestedRepositoryInterfaces(shouldConsiderNestedRepositories());scanner.setEnvironment(environment);scanner.setResourceLoader(loader);getExcludeFilters().forEach(scanner::addExcludeFilter);// 查找满足条件的组件return Streamable.of(() -> getBasePackages().stream()//.flatMap(it -> scanner.findCandidateComponents(it).stream()));}
}public class RepositoryConfigurationDelegate {// ...public List<BeanComponentDefinition> registerRepositoriesIn(BeanDefinitionRegistry registry,RepositoryConfigurationExtension extension) {Collection<RepositoryConfiguration<RepositoryConfigurationSource>> configurations = extension.getRepositoryConfigurations(configurationSource, resourceLoader, inMultiStoreMode);}
}public abstract class RepositoryConfigurationExtensionSupport implements RepositoryConfigurationExtension {public <T extends RepositoryConfigurationSource> Collection<RepositoryConfiguration<T>> getRepositoryConfigurations(T configSource, ResourceLoader loader, boolean strictMatchesOnly) {// ...// 调用RepositoryBeanDefinitionRegistrarSupport.getCandidates 获得合适的对象for (BeanDefinition candidate : configSource.getCandidates(loader)) {}// ...}
}class RepositoryComponentProvider extends ClassPathScanningCandidateComponentProvider {public RepositoryComponentProvider(Iterable<? extends TypeFilter> includeFilters, BeanDefinitionRegistry registry) {// ....if (includeFilters.iterator().hasNext()) {for (TypeFilter filter : includeFilters) {addIncludeFilter(filter);}} else {// 添加 是Repository接口的类super.addIncludeFilter(new InterfaceTypeFilter(Repository.class));// 添加定义了RepositoryDefinition注解的类super.addIncludeFilter(new AnnotationTypeFilter(RepositoryDefinition.class, true, true));}// 排除带有NoRepositoryBean注解的类addExcludeFilter(new AnnotationTypeFilter(NoRepositoryBean.class));}@Overridepublic Set<BeanDefinition> findCandidateComponents(String basePackage) {// 这里就走到的Spring的findCandidateComponents 里面// 关键的两个方法则是isCandidateComponent(metadataReader) 与 isCandidateComponent(sbd)Set<BeanDefinition> candidates = super.findCandidateComponents(basePackage);// ...}// 这样的话就能将Repository接口及@RepositoryDefinition扫描成BeanDefinition了protected boolean isCandidateComponent(MetadataReader metadataReader) throws IOException {for (TypeFilter tf : this.excludeFilters) {if (tf.match(metadataReader, getMetadataReaderFactory())) {return false;}}for (TypeFilter tf : this.includeFilters) {if (tf.match(metadataReader, getMetadataReaderFactory())) {return isConditionMatch(metadataReader);}}return false;}@Overrideprotected boolean isCandidateComponent(AnnotatedBeanDefinition beanDefinition) {boolean isNonRepositoryInterface = !ClassUtils.isGenericRepositoryInterface(beanDefinition.getBeanClassName());boolean isTopLevelType = !beanDefinition.getMetadata().hasEnclosingClass();boolean isConsiderNestedRepositories = isConsiderNestedRepositoryInterfaces();return isNonRepositoryInterface && (isTopLevelType || isConsiderNestedRepositories);}
}public abstract class RepositoryFactoryBeanSupport<T extends Repository<S, ID>, S, ID>implements InitializingBean, RepositoryFactoryInformation<S, ID>, FactoryBean<T>, BeanClassLoaderAware,BeanFactoryAware, ApplicationEventPublisherAware {public void afterPropertiesSet() {// ...// 传入repositoryInterface来得到代理对象this.repository = Lazy.of(() -> this.factory.getRepository(repositoryInterface, repositoryFragmentsToUse));// ...}
}public abstract class RepositoryFactorySupport implements BeanClassLoaderAware, BeanFactoryAware {public <T> T getRepository(Class<T> repositoryInterface, RepositoryFragments fragments) {// ...// 这里就是最终创建代理对象的地方，会判断是JDK动态代理还是CGLIB代理T repository = (T) result.getProxy(classLoader);// ...return repository;}
}

1. @EnableJpaRepositories(basePackages = "com.mfyuan.repository")
2. @Import(JpaRepositoriesRegistrar.class)
3. JpaRepositoriesRegistrar实现ImportBeanDefinitionRegistrar拥有动态注册的能力与BeanDefinitionRegistryPostProcessor一样
4. 自定义扫描器RepositoryComponentProvide添加扫描Repository口及RepositoryDefinition注解的includeFilter及NoRepositoryBean注解的excludeFilter
5. 将扫描成功的获选Bean的信息创建成BeanDefinition并修改它的BeanClassName（实际是JpaRepositoryFactoryBean）
6. JpaRepositoryFactoryBean是一个BeanFactory，会为我们创建出一个动态代理的对象并放入到IOC容器中。
