解决Ubuntu22.04.1上安装ch34x串口驱动报 Key was rejected by service 需要签名的问题

问题

Ubuntu22.04.1
Linux版本5.19.0-32-generic
运行Qt串口通信 m_serialPort->open(QIODevice::ReadWrite) 时，总是失败。
负责硬件的同事说可能是需要安装ch340驱动。

官网下载

WCH官网下载驱动 CH341SER_LINUX.ZIP

解压驱动包

ncyf@NCYF:~/Downloads$ unzip -O GBK CH341SER_LINUX.ZIP
Archive:  CH341SER_LINUX.ZIPcreating: CH341SER_LINUX/inflating: CH341SER_LINUX/ch34x.c  inflating: CH341SER_LINUX/Makefile  inflating: CH341SER_LINUX/readme.txt
ncyf@NCYF:~/Downloads$

编译安装

如果直接编译，会报错

ncyf@NCYF:~/Downloads$ cd CH341SER_LINUX/
ncyf@NCYF:~/Downloads/CH341SER_LINUX$ ls
ch34x.c  Makefile  readme.txt
ncyf@NCYF:~/Downloads/CH341SER_LINUX$ make
make -C /lib/modules/5.19.0-32-generic/build  M=/home/ncyf/Downloads/CH341SER_LINUX
make[1]: 进入目录“/usr/src/linux-headers-5.19.0-32-generic”
warning: the compiler differs from the one used to build the kernelThe kernel was built by: x86_64-linux-gnu-gcc (Ubuntu 11.3.0-1ubuntu1~22.04) 11.3.0You are using:           gcc (Ubuntu 11.3.0-1ubuntu1~22.04) 11.3.0CC [M]  /home/ncyf/Downloads/CH341SER_LINUX/ch34x.o
/home/ncyf/Downloads/CH341SER_LINUX/ch34x.c: In function ‘ch34x_close’:
/home/ncyf/Downloads/CH341SER_LINUX/ch34x.c:591:9: error: unknown type name ‘wait_queue_t’; did you mean ‘wait_event’?591 |         wait_queue_t wait;|         ^~~~~~~~~~~~|         wait_event
/home/ncyf/Downloads/CH341SER_LINUX/ch34x.c:591:22: warning: unused variable ‘wait’ [-Wunused-variable]591 |         wait_queue_t wait;|                      ^~~~
/home/ncyf/Downloads/CH341SER_LINUX/ch34x.c:590:14: warning: unused variable ‘timeout’ [-Wunused-variable]590 |         long timeout;|              ^~~~~~~
/home/ncyf/Downloads/CH341SER_LINUX/ch34x.c:589:13: warning: unused variable ‘bps’ [-Wunused-variable]589 |         int bps;|             ^~~
/home/ncyf/Downloads/CH341SER_LINUX/ch34x.c: At top level:
/home/ncyf/Downloads/CH341SER_LINUX/ch34x.c:1297:27: error: initialization of ‘unsigned int (*)(struct tty_struct *)’ from incompatible pointer type ‘int (*)(struct tty_struct *)’ [-Werror=incompatible-pointer-types]1297 |         .write_room     = ch34x_write_room,|                           ^~~~~~~~~~~~~~~~
/home/ncyf/Downloads/CH341SER_LINUX/ch34x.c:1297:27: note: (near initialization for ‘ch34x_device.write_room’)
/home/ncyf/Downloads/CH341SER_LINUX/ch34x.c:1298:28: error: initialization of ‘unsigned int (*)(struct tty_struct *)’ from incompatible pointer type ‘int (*)(struct tty_struct *)’ [-Werror=incompatible-pointer-types]1298 |         .chars_in_buffer = ch34x_chars_in_buffer,|                            ^~~~~~~~~~~~~~~~~~~~~
/home/ncyf/Downloads/CH341SER_LINUX/ch34x.c:1298:28: note: (near initialization for ‘ch34x_device.chars_in_buffer’)
cc1: some warnings being treated as errors
make[2]: *** [scripts/Makefile.build:257：/home/ncyf/Downloads/CH341SER_LINUX/ch34x.o] 错误 1
make[1]: *** [Makefile:1850：/home/ncyf/Downloads/CH341SER_LINUX] 错误 2
make[1]: 离开目录“/usr/src/linux-headers-5.19.0-32-generic”
make: *** [Makefile:5：default] 错误 2
ncyf@NCYF:~/Downloads/CH341SER_LINUX$

原因在 readme.txt 里面有说明

// ChangeLog
// 1.0 - 1.1   modified to solve transmition between ch341 and ch341
// 1.1 - 1.2   Support high Linux kernel
InstructionsNote: 1.Please run followed executable programs as root privilege2.Current Driver support versions of linux kernel range from 2.6.25 to 3.13.x3.Current Driver support 32bits and 64bits linux systemsUsage:(load or unload linux driver of CH34x)//compile #make//load ch34x chips driver#make load//unload ch34x chips driver#make unload
// 1.2 - 1.3 Fix some bugs

第七行Current Driver support versions of linux kernel range from 2.6.25 to 3.13.x的意思是linux内核的当前驱动程序支持版本从2.6.25到3.13.x
而我的是5.19.0-32-generic

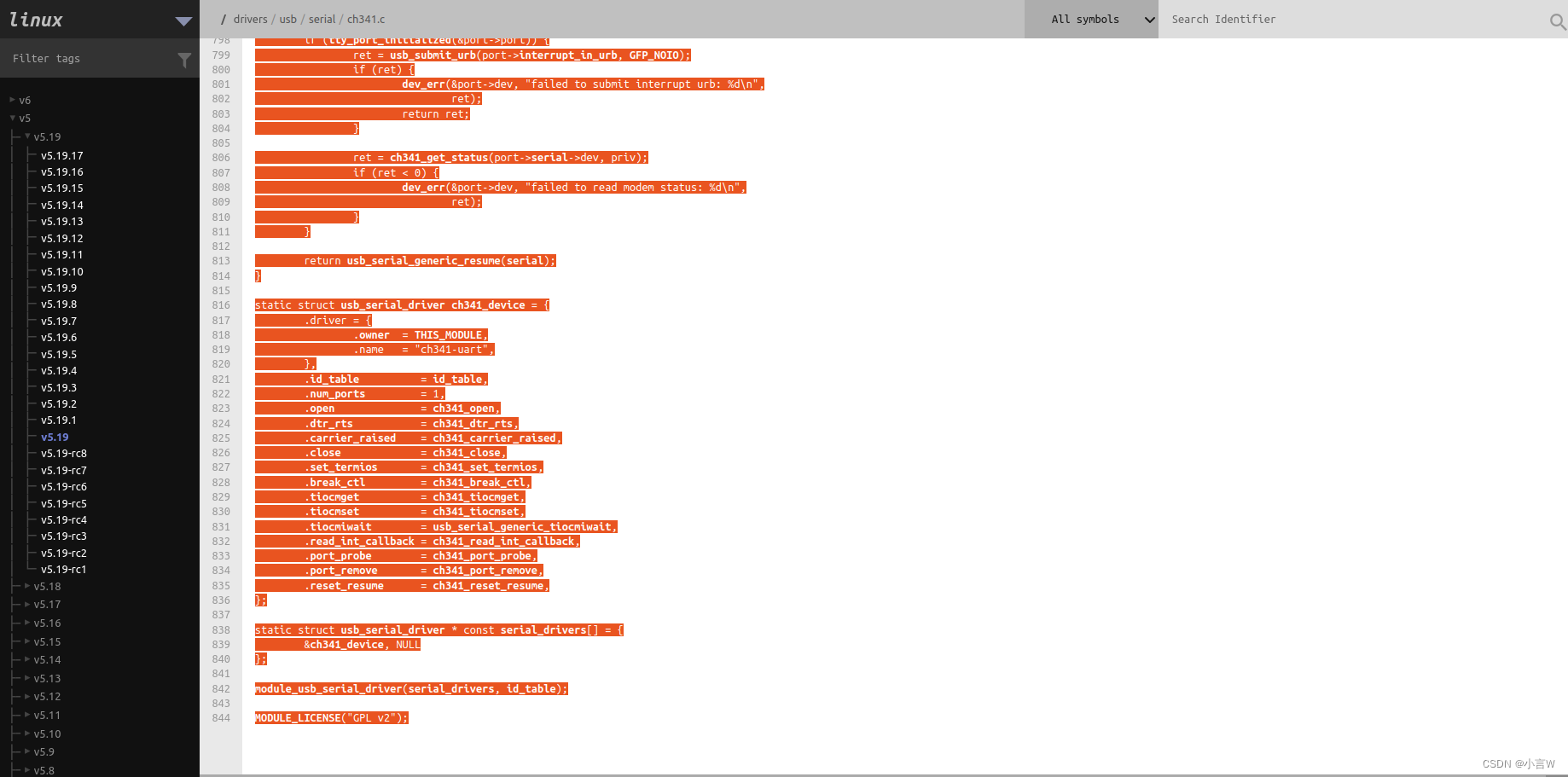

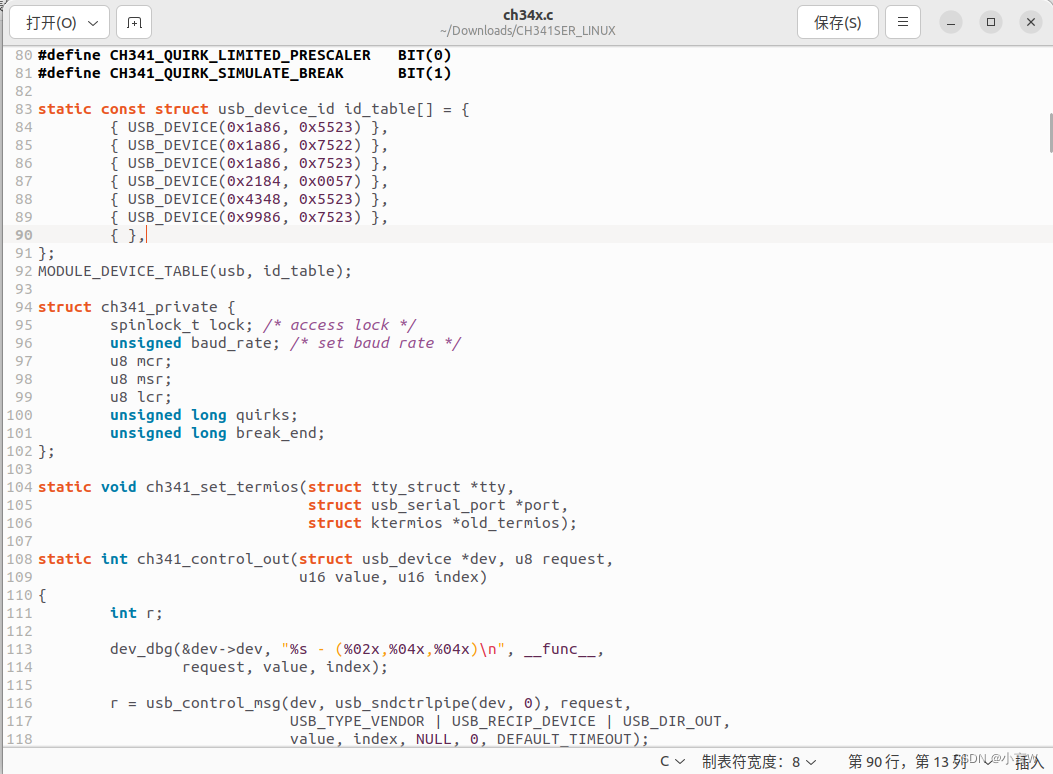

所以需要去查看ch34x.c的 源代码，直接复制到CH341SER_LINUX/ch34x.c 中，重新make

ncyf@NCYF:~/Downloads/CH341SER_LINUX$ make
make -C /lib/modules/5.19.0-32-generic/build  M=/home/ncyf/Downloads/CH341SER_LINUX
make[1]: 进入目录“/usr/src/linux-headers-5.19.0-32-generic”
warning: the compiler differs from the one used to build the kernelThe kernel was built by: x86_64-linux-gnu-gcc (Ubuntu 11.3.0-1ubuntu1~22.04) 11.3.0You are using:           gcc (Ubuntu 11.3.0-1ubuntu1~22.04) 11.3.0CC [M]  /home/ncyf/Downloads/CH341SER_LINUX/ch34x.oMODPOST /home/ncyf/Downloads/CH341SER_LINUX/Module.symversCC [M]  /home/ncyf/Downloads/CH341SER_LINUX/ch34x.mod.oLD [M]  /home/ncyf/Downloads/CH341SER_LINUX/ch34x.koBTF [M] /home/ncyf/Downloads/CH341SER_LINUX/ch34x.ko
Skipping BTF generation for /home/ncyf/Downloads/CH341SER_LINUX/ch34x.ko due to unavailability of vmlinux
make[1]: 离开目录“/usr/src/linux-headers-5.19.0-32-generic”
ncyf@NCYF:~/Downloads/CH341SER_LINUX$ ls
ch34x.c  ch34x.ko  ch34x.mod  ch34x.mod.c  ch34x.mod.o  ch34x.o  Makefile  modules.order  Module.symvers  readme.txt
ncyf@NCYF:~/Downloads/CH341SER_LINUX$

此时目录下，已生成.ko文件，说明 make 成功了。

载入模块（设备驱动程序）

ncyf@NCYF:~/Downloads/CH341SER_LINUX$ sudo make load
[sudo] ncyf 的密码：
modprobe usbserial
insmod ch34x.ko
insmod: ERROR: could not insert module ch34x.ko: Key was rejected by service
make: *** [Makefile:10：load] 错误 1
ncyf@NCYF:~/Downloads/CH341SER_LINUX$

错误提示：Key was rejected by service
说明.ko文件需要签名。

查看驱动签名情况

ncyf@NCYF:~/Downloads/CH341SER_LINUX$ ls
ch34x.c  ch34x.ko  ch34x.mod  ch34x.mod.c  ch34x.mod.o  ch34x.o  Makefile  modules.order  Module.symvers  readme.txt
ncyf@NCYF:~/Downloads/CH341SER_LINUX$ hexdump -C ch34x.ko | tail
000566f0  08 00 00 00 00 00 00 00  18 00 00 00 00 00 00 00  |................|
00056700  09 00 00 00 03 00 00 00  00 00 00 00 00 00 00 00  |................|
00056710  00 00 00 00 00 00 00 00  f8 cd 02 00 00 00 00 00  |................|
00056720  37 08 00 00 00 00 00 00  00 00 00 00 00 00 00 00  |7...............|
00056730  01 00 00 00 00 00 00 00  00 00 00 00 00 00 00 00  |................|
00056740  11 00 00 00 03 00 00 00  00 00 00 00 00 00 00 00  |................|
00056750  00 00 00 00 00 00 00 00  20 59 05 00 00 00 00 00  |........ Y......|
00056760  e0 01 00 00 00 00 00 00  00 00 00 00 00 00 00 00  |................|
00056770  01 00 00 00 00 00 00 00  00 00 00 00 00 00 00 00  |................|
00056780
ncyf@NCYF:~/Downloads/CH341SER_LINUX$

此时没有签名。

给驱动签名

首先依赖mokutil和shim-signed

sudo apt install mokutil
sudo apt install shim-signed
sudo update-secureboot-policy --new-key

生成的证书(MOK.der)和私钥(MOK.priv)位于 /var/lib/shim-signed/mok/ 目录下。

openssl req -new -x509 -newkey rsa:2048 -keyout MOK.priv -outform DER -out MOK.der -nodes -days 36500 -subj "/CN=Descriptive name/"

导入签名证书

sudo mokutil --import /var/lib/shim-signed/mok/MOK.der

重新启动
电脑启动 UEFI 询问您是否要更改安全设置，选择”Yes”。

将签名写入驱动

ncyf@NCYF:~/Downloads/CH341SER_LINUX$ ls
ch34x.c  ch34x.ko  ch34x.mod  ch34x.mod.c  ch34x.mod.o  ch34x.o  Makefile  modules.order  Module.symvers  readme.txt
ncyf@NCYF:~/Downloads/CH341SER_LINUX$ hexdump -C ch34x.ko | tail
000566f0  08 00 00 00 00 00 00 00  18 00 00 00 00 00 00 00  |................|
00056700  09 00 00 00 03 00 00 00  00 00 00 00 00 00 00 00  |................|
00056710  00 00 00 00 00 00 00 00  f8 cd 02 00 00 00 00 00  |................|
00056720  37 08 00 00 00 00 00 00  00 00 00 00 00 00 00 00  |7...............|
00056730  01 00 00 00 00 00 00 00  00 00 00 00 00 00 00 00  |................|
00056740  11 00 00 00 03 00 00 00  00 00 00 00 00 00 00 00  |................|
00056750  00 00 00 00 00 00 00 00  20 59 05 00 00 00 00 00  |........ Y......|
00056760  e0 01 00 00 00 00 00 00  00 00 00 00 00 00 00 00  |................|
00056770  01 00 00 00 00 00 00 00  00 00 00 00 00 00 00 00  |................|
00056780
ncyf@NCYF:~/Downloads/CH341SER_LINUX$ sudo /usr/src/linux-headers-$(uname -r)/scripts/sign-file sha256 /var/lib/shim-signed/mok/MOK.priv /var/lib/shim-signed/mok/MOK.der ch34x.ko
ncyf@NCYF:~/Downloads/CH341SER_LINUX$ hexdump -C ch34x.ko | tail
000568d0  c4 6c 1c 49 a8 4d e4 68  b2 c2 ab c1 a6 4f f7 45  |.l.I.M.h.....O.E|
000568e0  bd 9b 33 23 f1 3d 38 41  29 bb 05 5f 81 16 73 62  |..3#.=8A).._..sb|
000568f0  b2 8c 2a f6 9c 7e e2 e9  1a 0f 79 32 9e b5 8e 6b  |..*..~....y2...k|
00056900  50 0e a4 49 e4 06 59 79  8f 81 ef 7c df 9d e9 1f  |P..I..Yy...|....|
00056910  3b 2f 15 0f 12 43 b9 5d  05 09 f3 d8 0e bc 8b aa  |;/...C.]........|
00056920  e2 0a d7 bf cc 01 24 04  36 de 93 00 00 02 00 00  |......$.6.......|
00056930  00 00 00 00 00 01 ab 7e  4d 6f 64 75 6c 65 20 73  |.......~Module s|
00056940  69 67 6e 61 74 75 72 65  20 61 70 70 65 6e 64 65  |ignature appende|
00056950  64 7e 0a                                          |d~.|
00056953
ncyf@NCYF:~/Downloads/CH341SER_LINUX$

此时驱动程序数据中有~Module signature appended~，可知已写入签名。

再来载入模块（设备驱动程序）

ncyf@NCYF:~/Downloads/CH341SER_LINUX$ sudo make load
modprobe usbserial
insmod ch34x.ko
ncyf@NCYF:~/Downloads/CH341SER_LINUX$

对比之前的，确实载入成功了。

ncyf@NCYF:~/Downloads/CH341SER_LINUX$ sudo make load
[sudo] ncyf 的密码：
modprobe usbserial
insmod ch34x.ko
insmod: ERROR: could not insert module ch34x.ko: Key was rejected by service
make: *** [Makefile:10：load] 错误 1
ncyf@NCYF:~/Downloads/CH341SER_LINUX$

使用lsmod查看模块，发现已识别。

ncyf@NCYF:/lib/modules/5.19.0-32-generic/kernel/drivers/usb/serial$ lsmod
Module                  Size  Used by
ch34x                  24576  0
rfcomm                 86016  4

有的博主说需要将目录中生成ch34x.ko文件复制到/lib/modules/$(uname -r)/kernel/drivers/usb/serial下，再使用lsmod查看模块，本人好像没做也行。

参考
解决Ubuntu22.04无法使用ch34x串口问题
linux secure boot(安全启动)下为内核模块签名
Linux驱动 - Ubuntu驱动签名
