项目二 任务三 训练5 交换机的HSRP技术

在“项目二 任务三 训练4 交换机的DHCP技术”基础上继续完成下列操作：

1、二层交换机50-2的配置

50-2>en

50-2#conf t

Enter configuration commands, one per line. End with CNTL/Z.

50-2(config)#int

50-2(config)#interface g

50-2(config)#interface gigabitEthernet 0/2

50-2(config-if)#switchport mode trunk

50-2(config-if)#

%LINEPROTO-5-UPDOWN: Line protocol on Interface GigabitEthernet0/2, changed state to down

%LINEPROTO-5-UPDOWN: Line protocol on Interface GigabitEthernet0/2, changed state to up

50-2(config-if)#

2、三层交换机50-3的配置

Switch>en

Switch#

Switch#conf t

Enter configuration commands, one per line. End with CNTL/Z.

Switch(config)#hostname 50-3

50-3(config)#vtp domain wgj

Changing VTP domain name from NULL to wgj

50-3(config)#vtp mode client

Setting device to VTP CLIENT mode.

50-3(config)#

---

50-3(config)#ip routing

50-3(config)#interface vlan 50

50-3(config-if)#

%LINK-5-CHANGED: Interface Vlan50, changed state to up

%LINEPROTO-5-UPDOWN: Line protocol on Interface Vlan50, changed state to up

50-3(config-if)#ip address 192.168.50.253 255.255.255.0

50-3(config-if)#interface vlan 60

50-3(config-if)#

%LINK-5-CHANGED: Interface Vlan60, changed state to up

%LINEPROTO-5-UPDOWN: Line protocol on Interface Vlan60, changed state to up

50-3(config-if)#ip address 192.168.60.253 255.255.255.0

50-3(config)#

3、三层交换机50-1的配置

50-1>

50-1>en

50-1#conf t

Enter configuration commands, one per line. End with CNTL/Z.

50-1(config)#int

50-1(config)#interface vlan 50

50-1(config-if)#standby 50 priority 110

50-1(config-if)#standby 50 ip 192.168.50.252

50-1(config-if)#standby 50 preempt

%HSRP-6-STATECHANGE: Vlan50 Grp 50 state Speak -> Standby

%HSRP-6-STATECHANGE: Vlan50 Grp 50 state Standby -> Active

50-1(config-if)#standby 50 track gigabitEthernet 0/2

50-1(config-if)#exit

---

50-1(config)#interface vlan 60

50-1(config-if)#standby 60 priority 100

50-1(config-if)#standby 60 ip 192.168.60.252

50-1(config-if)#exit

50-1(config)#

%HSRP-6-STATECHANGE: Vlan60 Grp 60 state Speak -> Standby

%HSRP-6-STATECHANGE: Vlan60 Grp 60 state Standby -> Active

50-1(config)#

4、三层交换机50-3配置

50-3>

50-3>en

50-3#conf t

Enter configuration commands, one per line. End with CNTL/Z.

50-3(config)#interface vlan 50

50-3(config-if)#st

50-3(config-if)#standby 50 ip 192.168.50.252

50-3(config-if)#exit

50-3(config)#interface vlan 60

%HSRP-6-STATECHANGE: Vlan50 Grp 50 state Speak -> Standby

50-3(config-if)#standby 60 priority 110

50-3(config-if)#standby 60 ip 192.168.60.252

50-3(config-if)#standby 60 preempt

50-3(config-if)#

%HSRP-6-STATECHANGE: Vlan60 Grp 60 state Standby -> Active

50-3(config-if)#standby 60 track gigabitEthernet 0/2

50-3(config-if)#exit

50-3(config)#

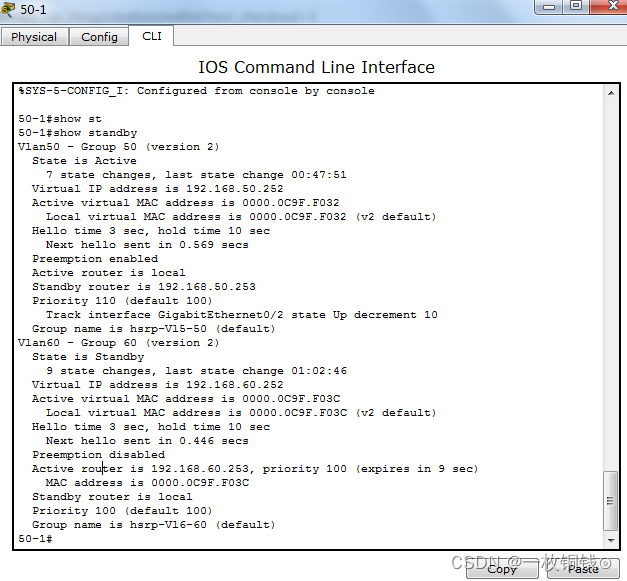

 5、查看交换机50-1的HSRP服务

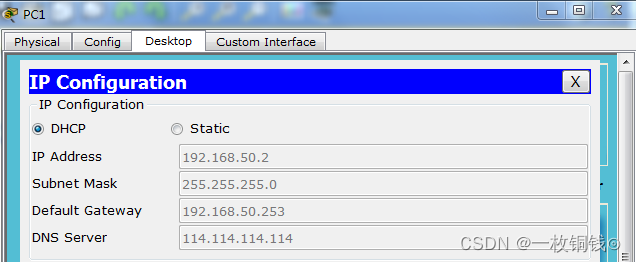

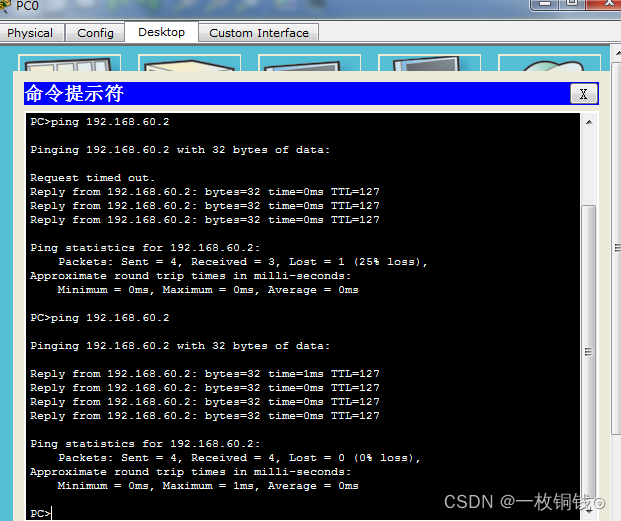

 6、未断开50-1交换机测试

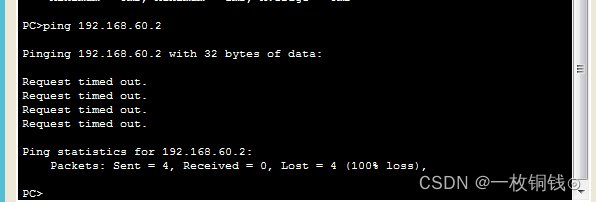

 7、断开50-1交换机测试

 发现不通，思考什么原因。

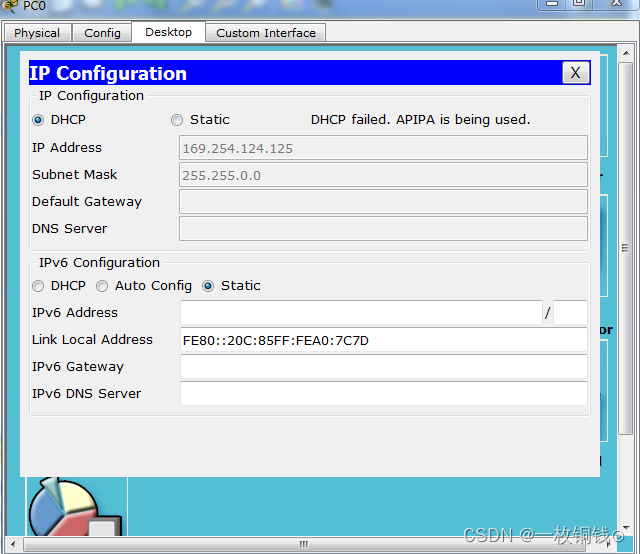

检测PC配置发现为获取正确的IP地址，问题找到。

 8、配置50-3的DHCP服务

50-3(config)#ip dhcp pool vlan50

50-3(dhcp-config)#network 192.168.50.0 255.255.255.0

50-3(dhcp-config)#dns-server 114.114.114.114

50-3(dhcp-config)#default-router 192.168.50.253

50-3(dhcp-config)#exit

50-3(config)#ip dhcp pool vlan60

50-3(dhcp-config)#network 192.168.60.0 255.255.255.0

50-3(dhcp-config)#dns-server 114.114.114.114

50-3(dhcp-config)#default-router 192.168.60.253

50-3(dhcp-config)#

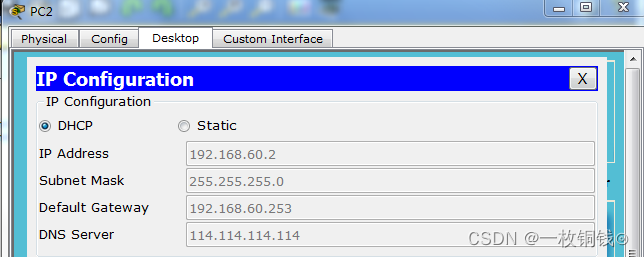

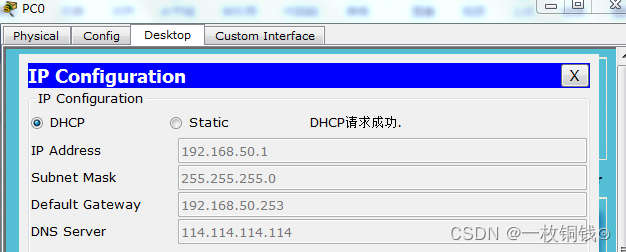

9、PC重新获取IP地址，发现网关发生变化

10、ping测试连通性
